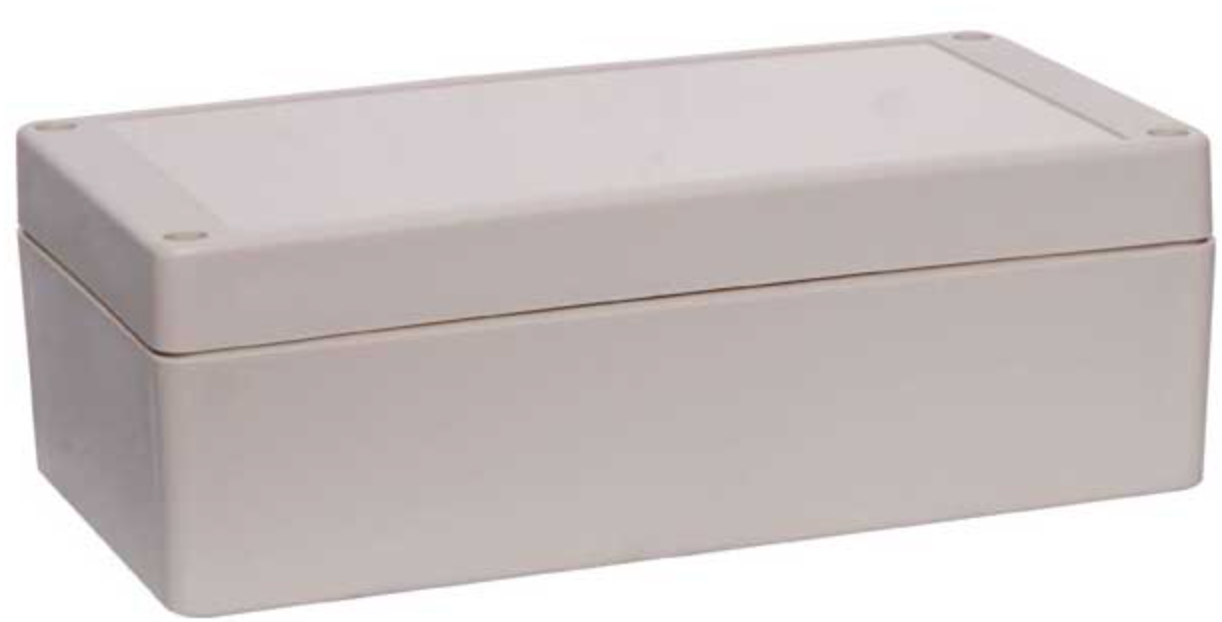

Enclosures & Boxes 165Lx85Wx55Hmm IP65 Sealed ABS Enclosure H0306

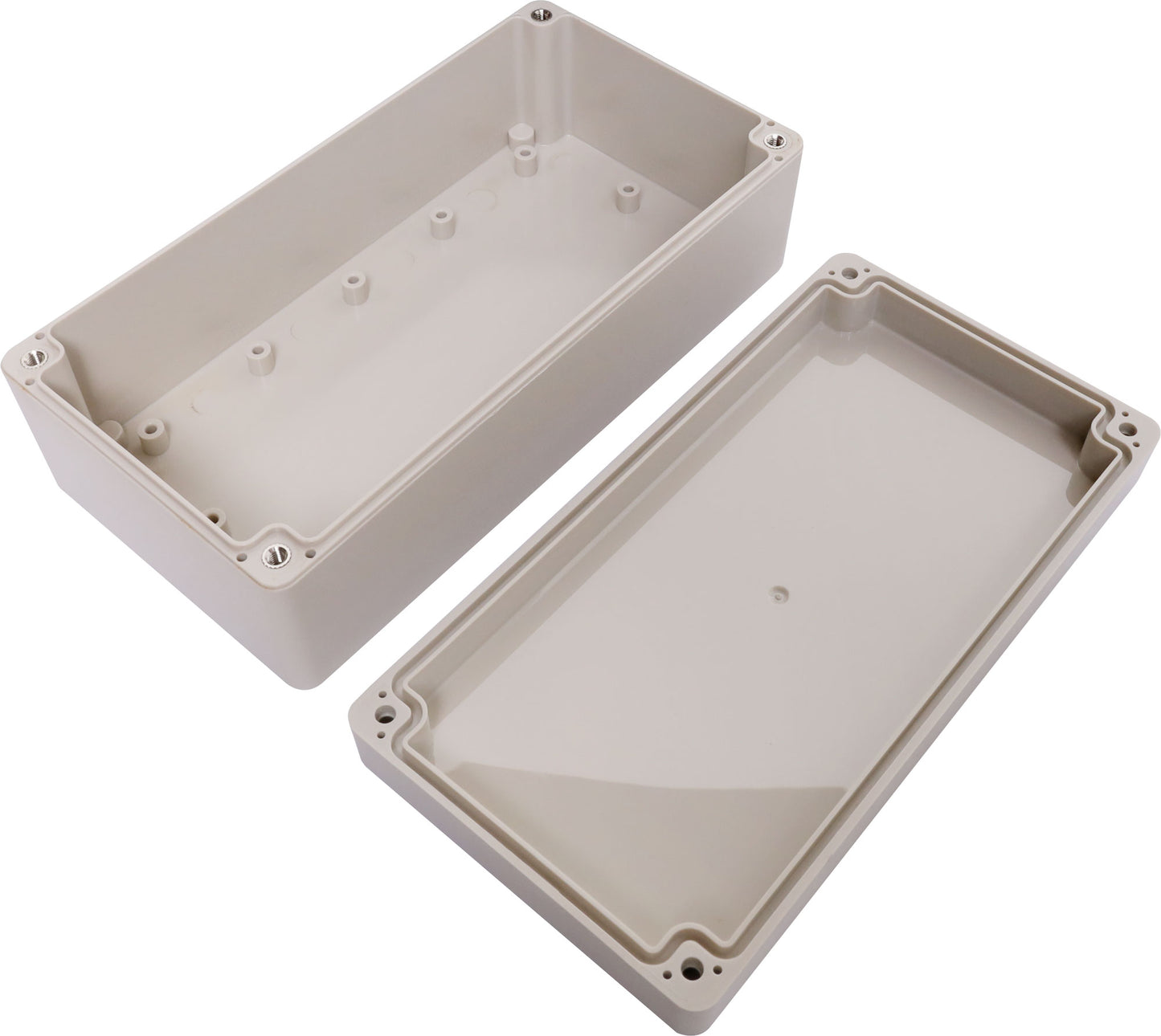

Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid (also available with a transparent lid, see H 0326). PCB mounting points are moulded into the enclosure base. UL 94-HB (-30° to 80°C)

Features

• Meets IP65 Dust and Hose-proof standards
• Brass screw thread inserts
• Neoprene gasket seal

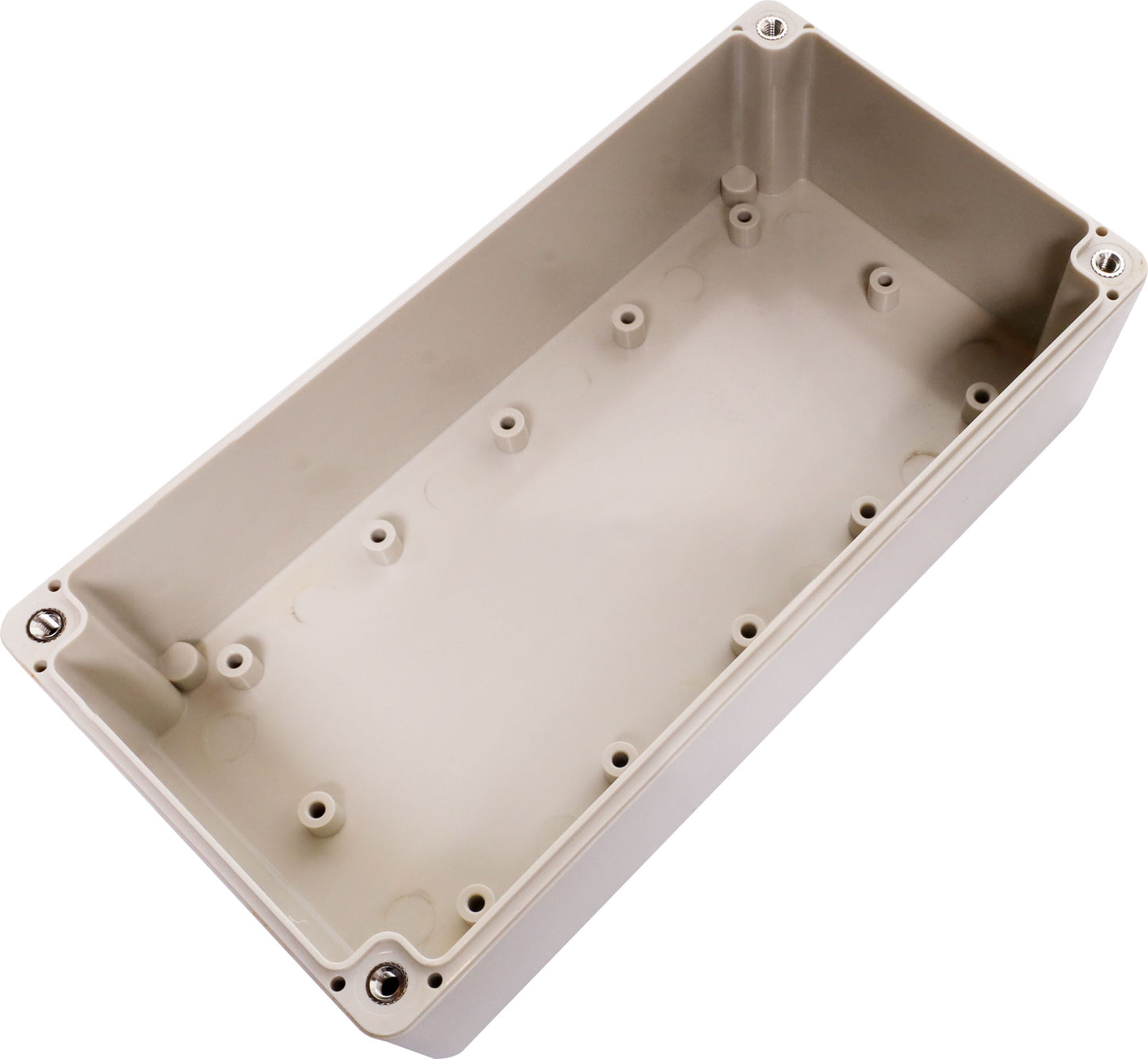

• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -30°C to +80°C
• Available with a solid light grey lid or a polycarbonate clear lid (see H 0336)

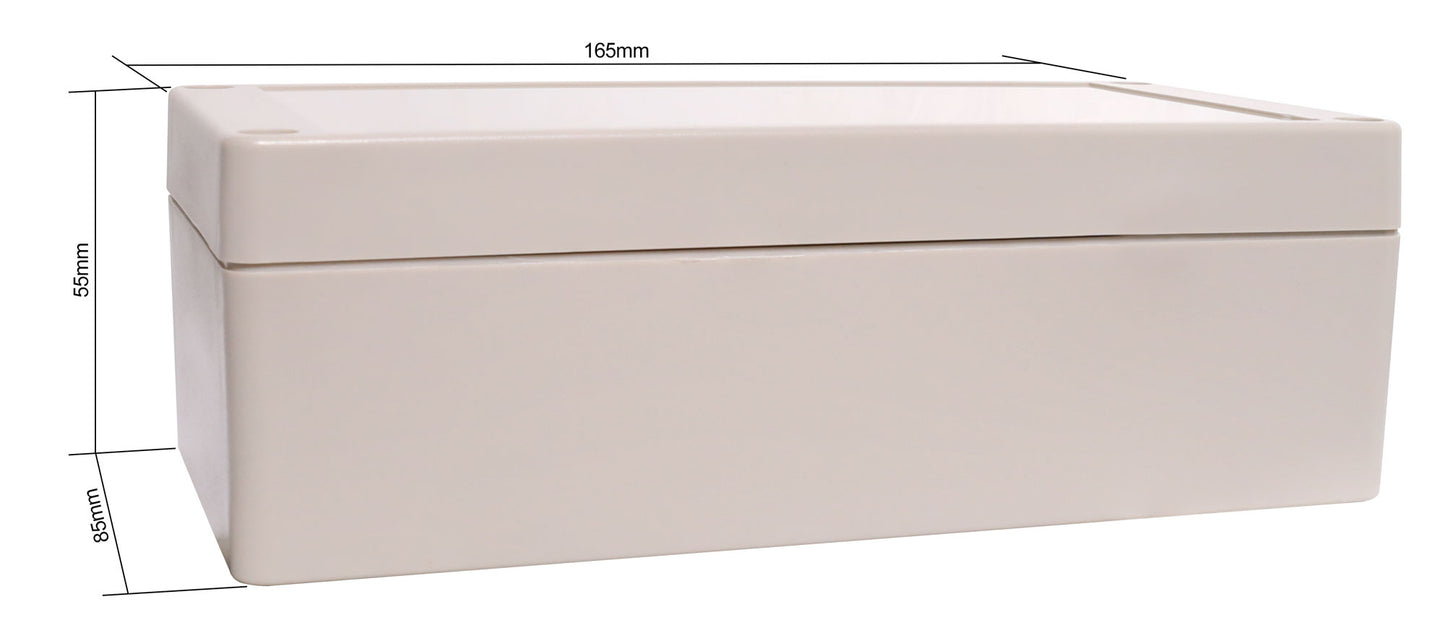

• 165L x 85W x 55H mm

Specification Sheet

IGS/STP 3D Model Files

AutoCad DWG File
