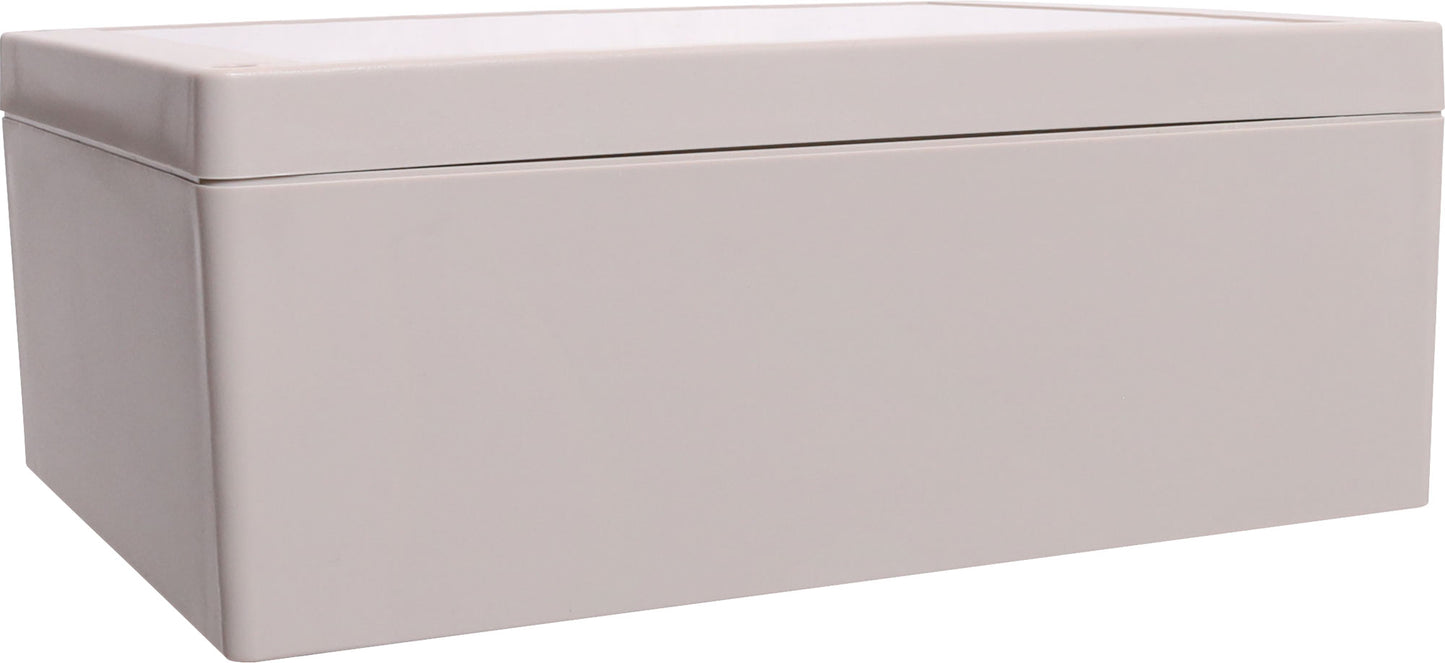

Enclosures & Boxes 220Lx160Wx80Hmm IP65 Sealed ABS Enclosure H0313

Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid (also available with a transparent lid, see H 0333). These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

Features

• Meets IP65 Dust- and Hose-proof standards
• Brass screw thread inserts
• Neoprene gasket seal

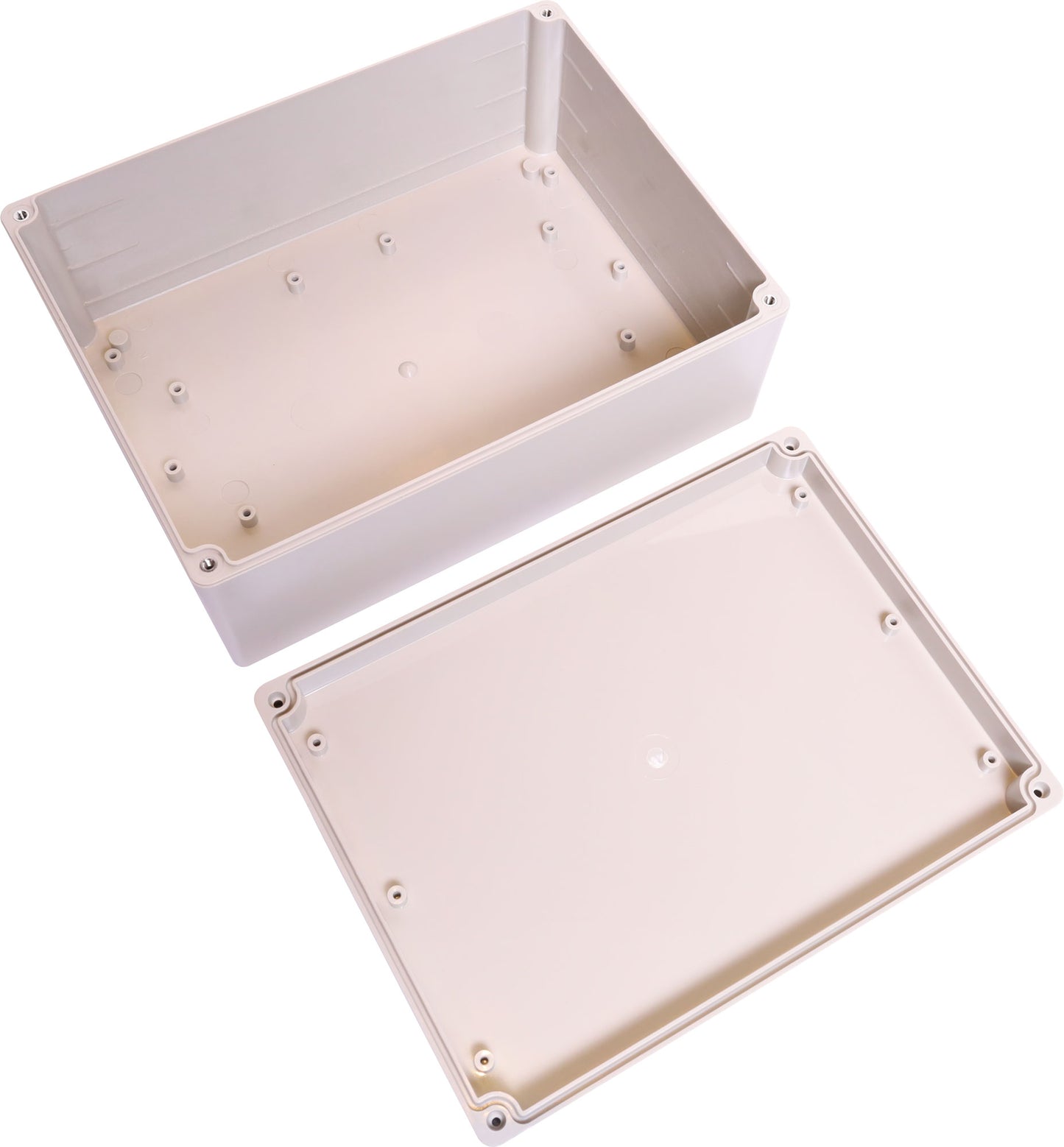

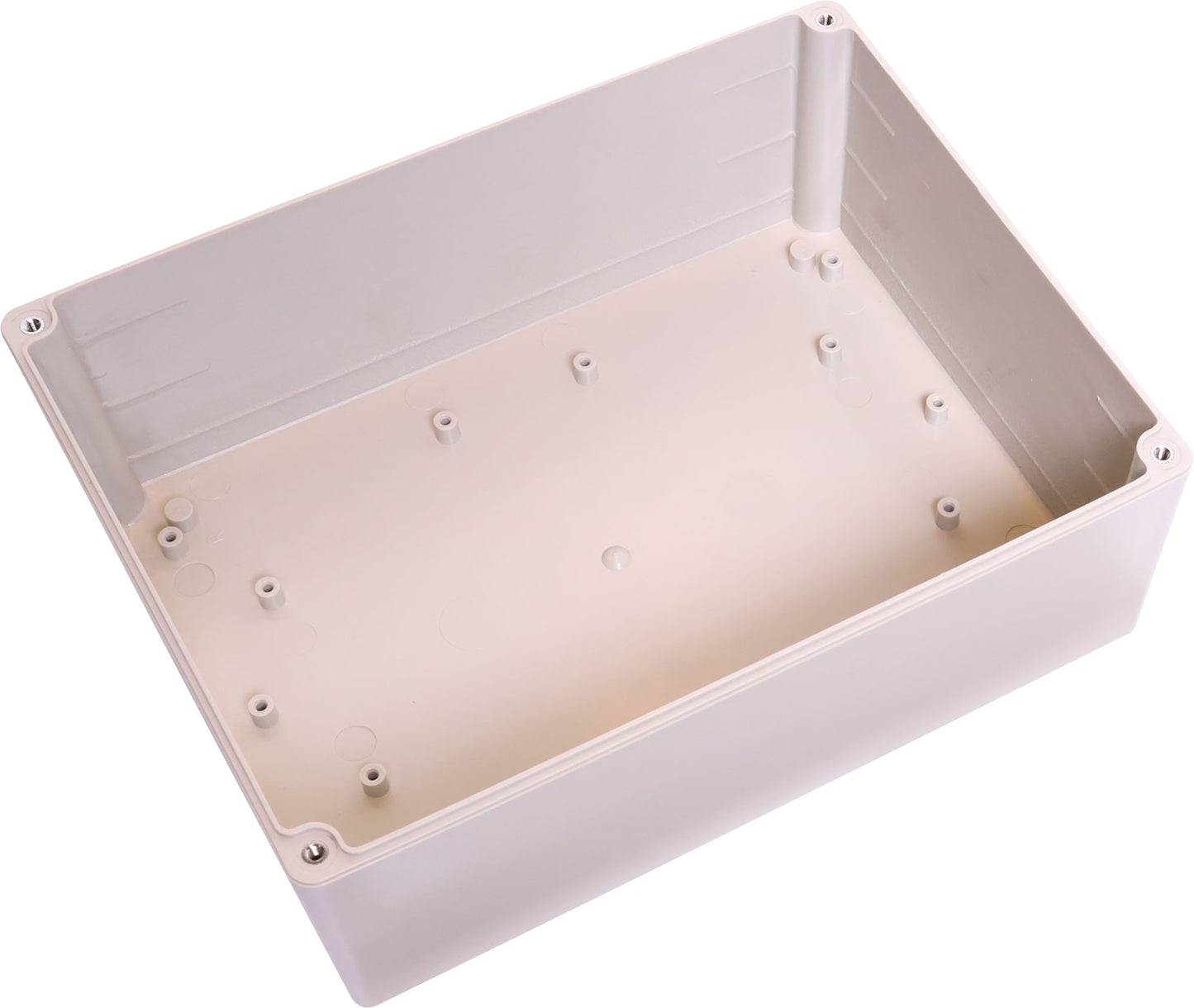

• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -30°C to +80°C
• Available with a solid light grey lid or a polycarbonate clear lid (see 0333)

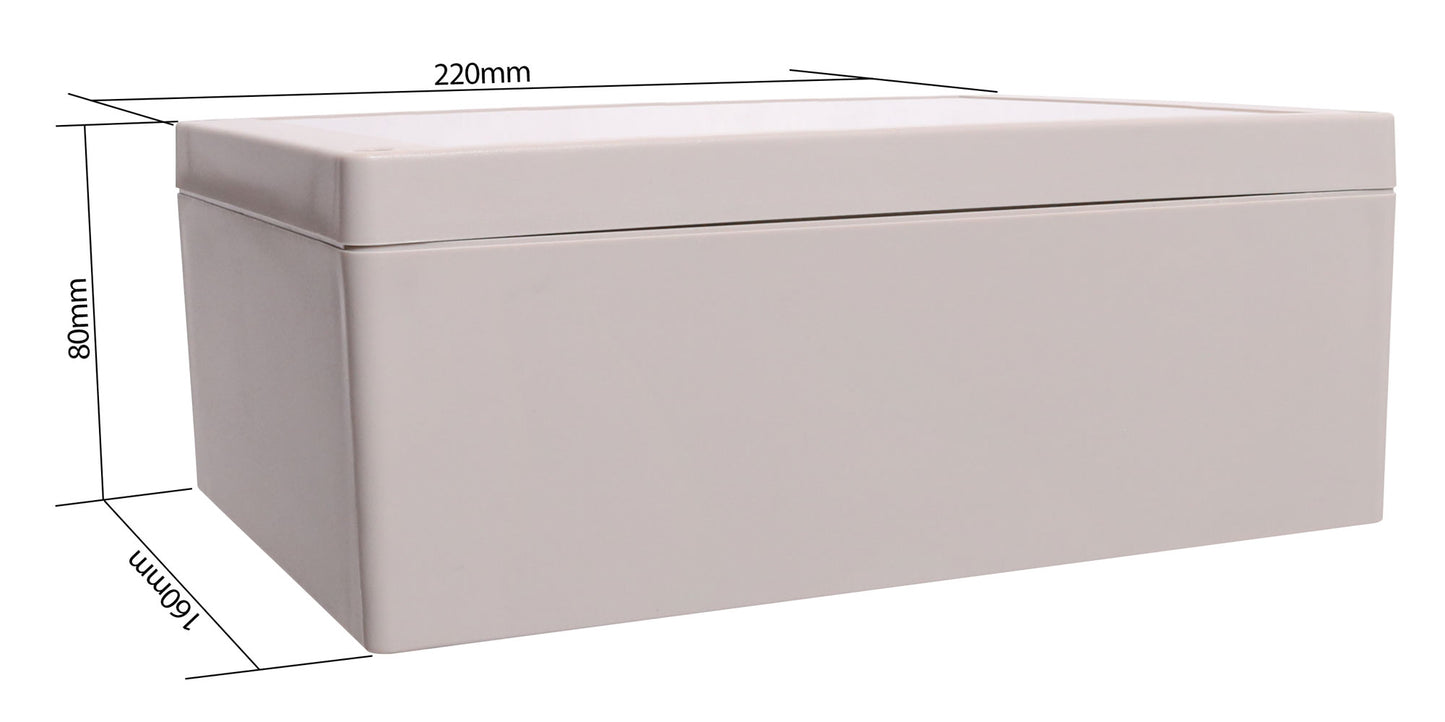

• 220L x 165W x 80H mm

Specification Sheet

IGS/STP 3D Model Files
