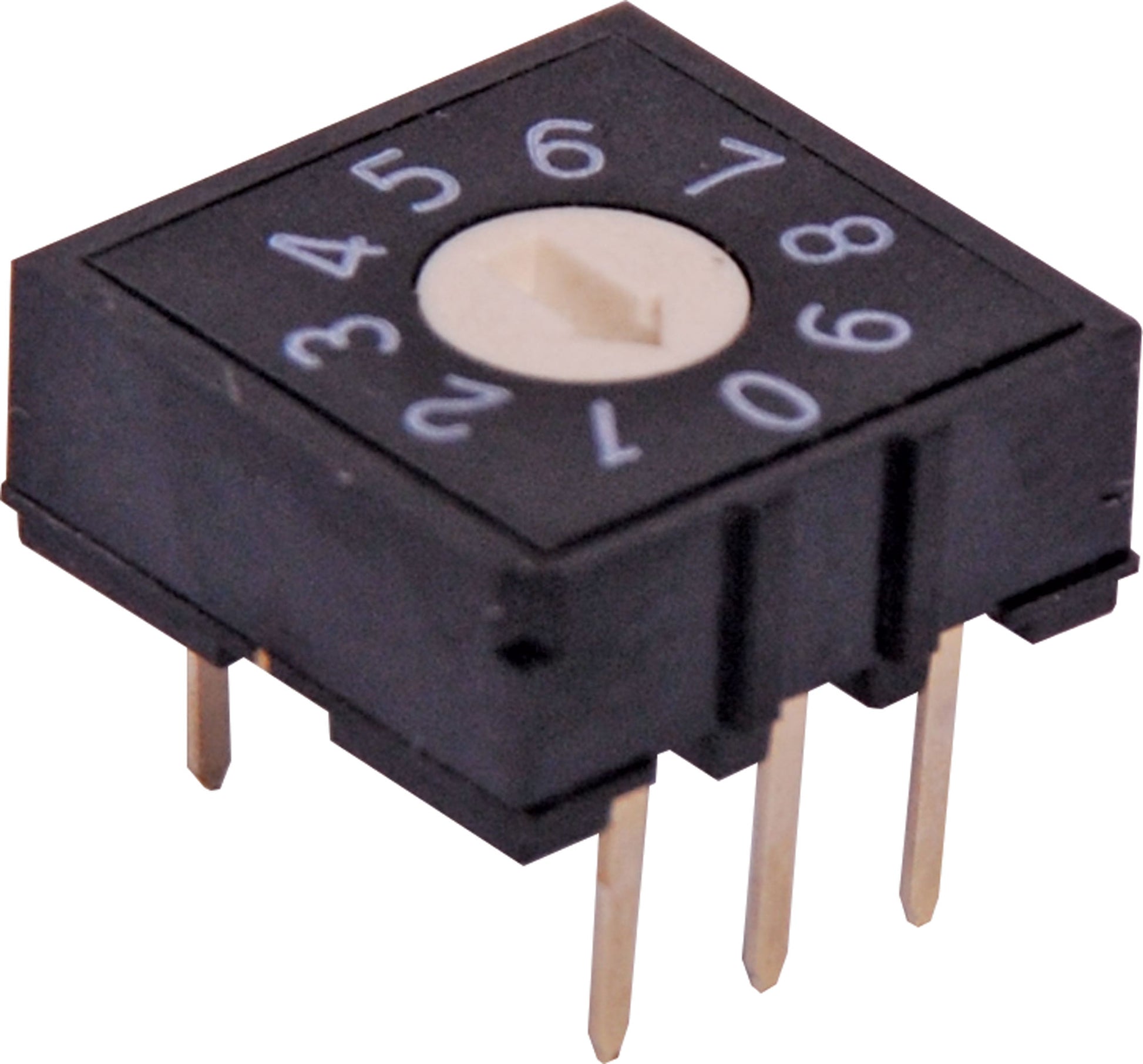

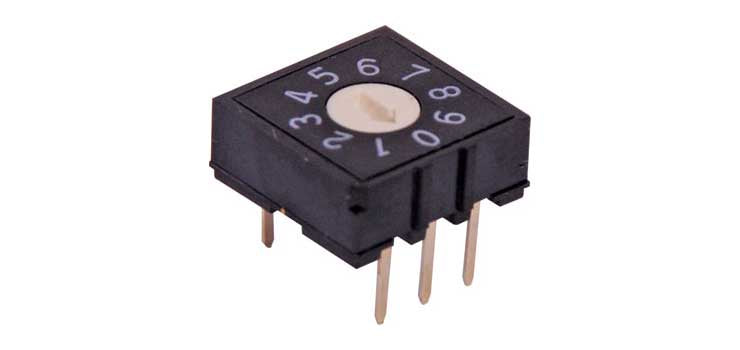

Encoding Switch 5 Pin BCD PCB Mount Rotary Switch S3001A
Encoding Switch 5 Pin BCD PCB Mount Rotary Switch S3001A
Regular price
$6.65
Regular price
Sale price
$6.65
Unit price
per
Taxes included.
Couldn't load pickup availability
Temperature range: -10°C to +60°C
Non switching rating: 50V DC @ 100mA
Switching rating: 5V DC @ 100mA
Contact resistance (Rc): 100mΩ max.
Insulation resistance: 100MΩ min @ 250VAC
Voltage proof: 250V AC for 1 min.
Mech life: (Rc < 150mΩ) 1000 cycle max
Electrical life: (Rc < 150mΩ) 100 cycles max
Binary coded decimal 10 pos
