Encoding Switches 10 Position Decimal Mini Thumbwheel Switch S3302

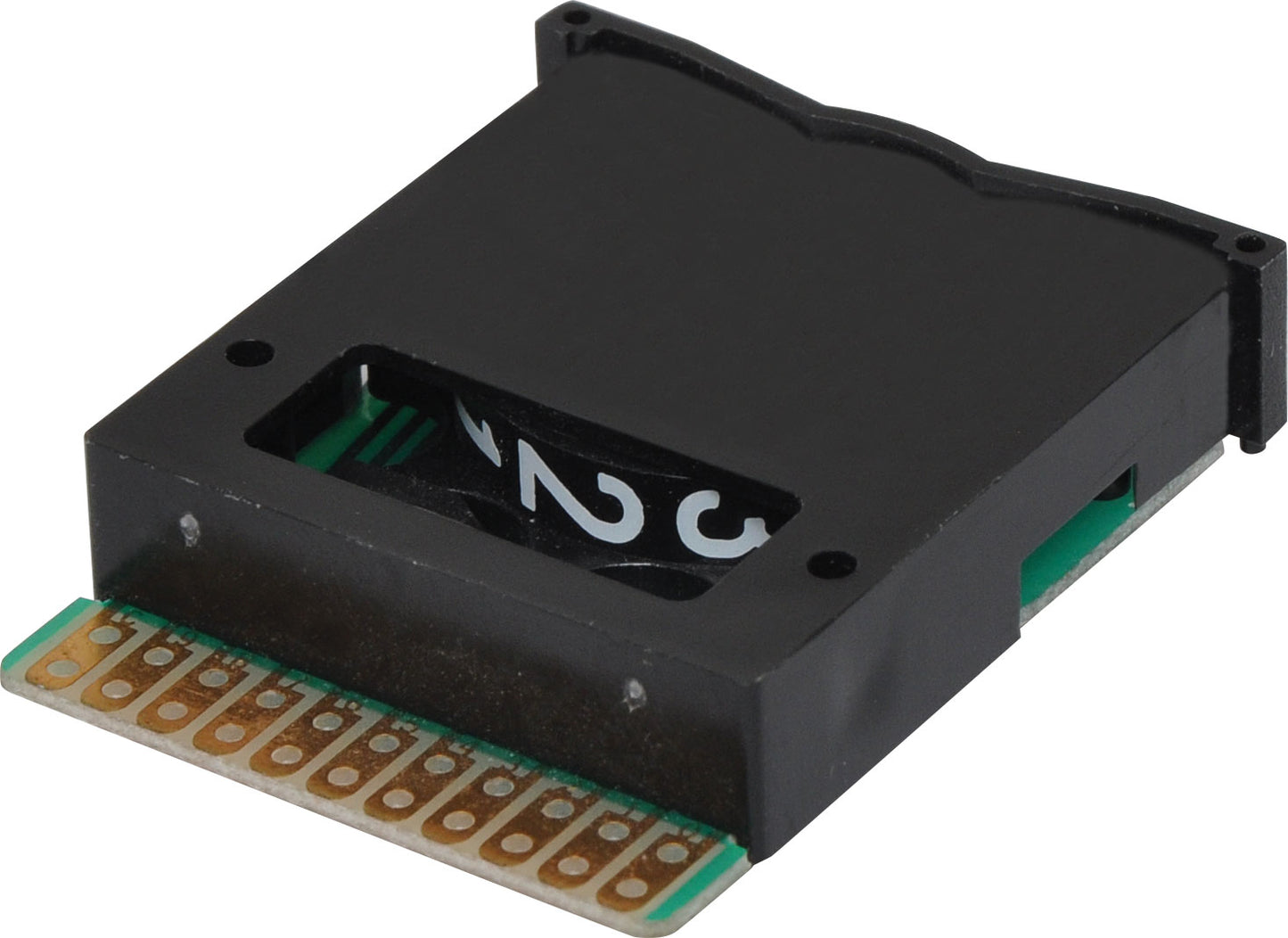

Panel mount Decimal coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per unit. Can easily be ganged together to form any combination.
Pair of End Caps to Suit (S 3305)

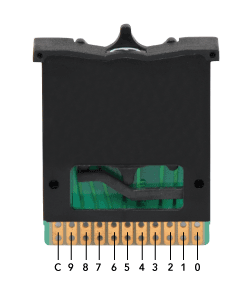

0 = C + 0
1 = C + 1
2 = C + 2
3 = C + 3
4 = C + 4
5 = C + 5
6 = C + 6
7 = C + 7
8 = C + 8
9 = C + 9

Cutout Hole Diagram
Cutout Hole Width = No. Switches (N) x 8 + 8 mm ie. For 5 BCD switches
N = 5. Hole Width = (5 x 8) + 8 = 48mm For 3 BCD switches
N = 3. Hole Width = (3 x 8) + 8 = 32mm

Dimension Drawing
