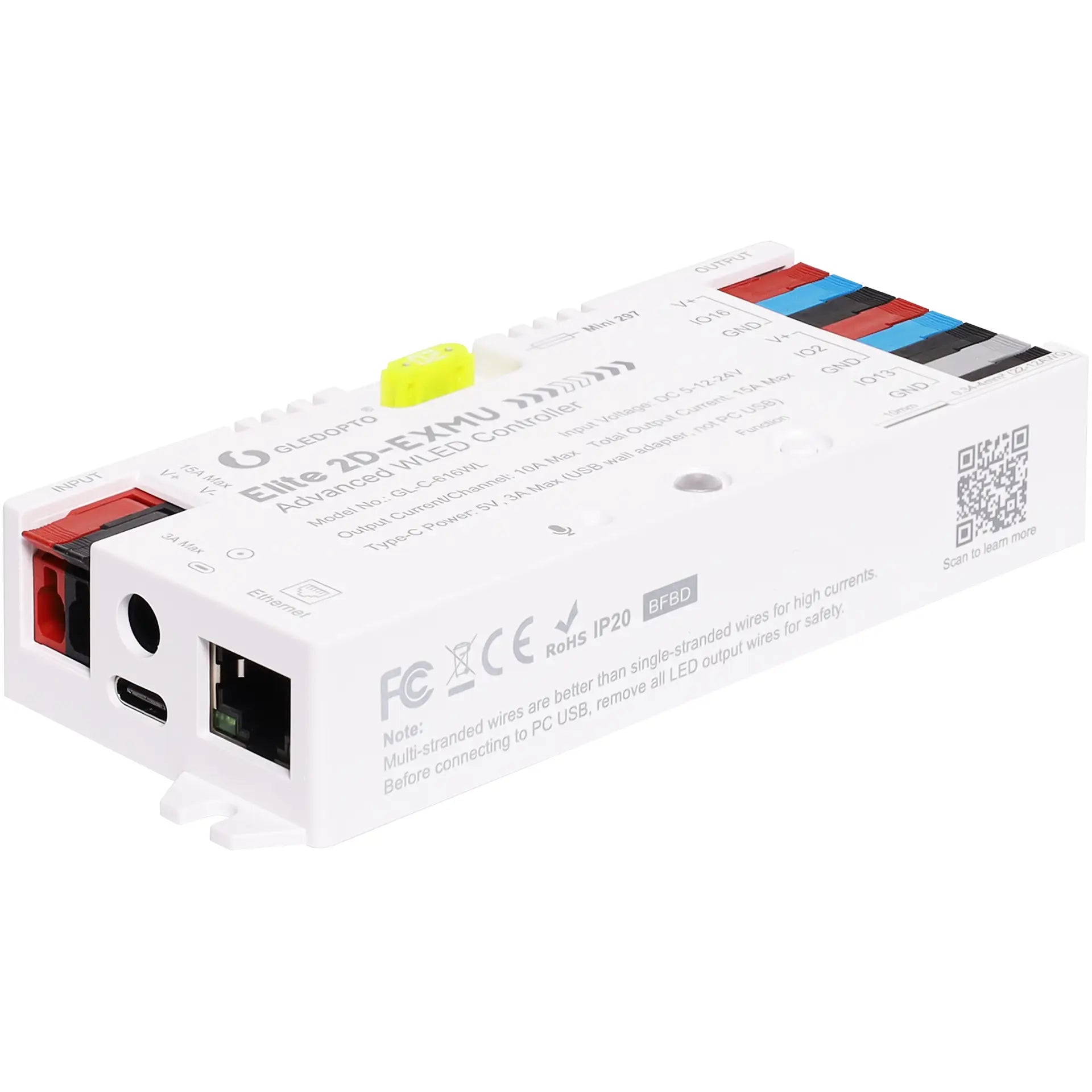

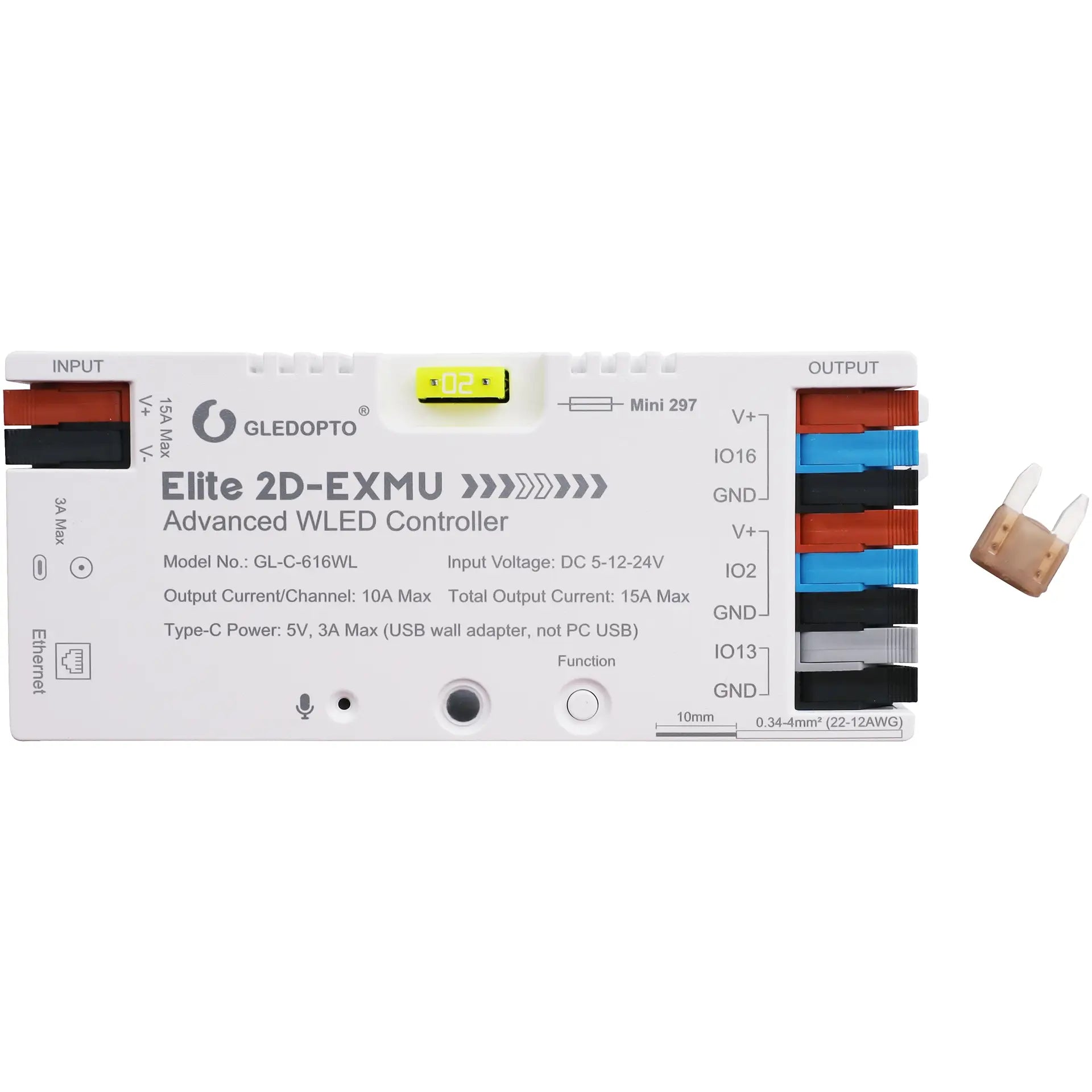

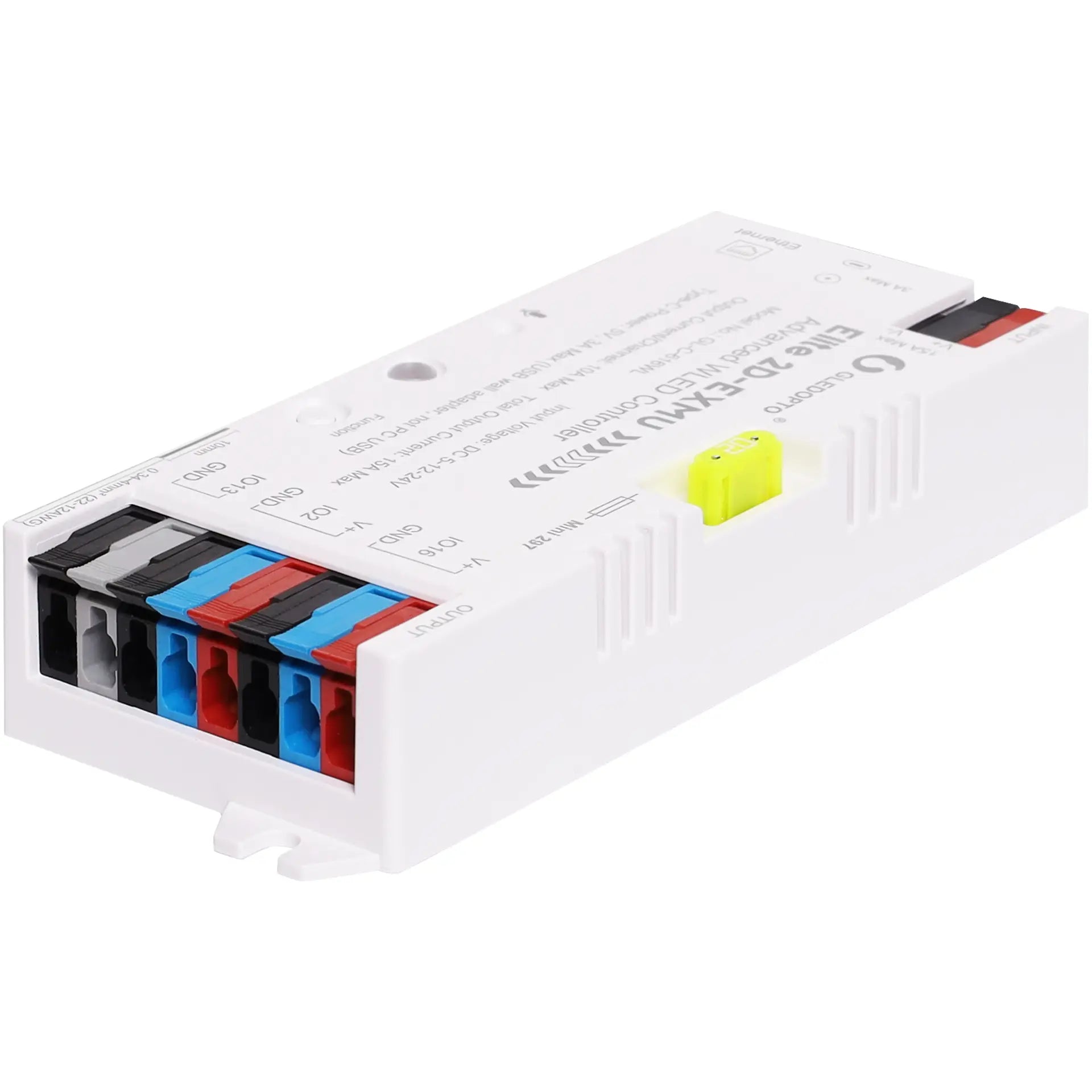

ESP32 Wi-fi / Ethernet WLED Digital LED Controller X3330

This Wi-Fi and ethernet based ESP32 LED controller is an advanced lighting module for addressable LED strips. It utilises a open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. This model provides connectivity via either Wi-Fi or wired ethernet.

LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. . An in-built microphone allows for dynamic lighting effects by triggering to the beat of the music. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

• Supports most addressable LED strip types (including Altronics X3222A, X3223A and X3216A).
• Supports connection for two LED strips/channels.
• 10A max current load per channel.
• Wired Ethernet or Wi-Fi connection (2.4GHz).
• 20A Pluggable Fuse
• Plug and Play ethernet port
• Push button switch input.
• DIY programmable lighting effects.
• Stable and fast data transfer with UART download over USB C.
• Microphone for music triggering.
• Can be programmed and controlled via PC or smart device (WLED app).

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Output Current/Channel: 10A Max
Type-C Voltage: 5V
Type-C Current: 3A Max
Protocol: WLED
Connectivity: Wi-Fi & Wired Ethernet
Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B etc.
Material: Flame Retardant PC
Weight: 0.08kg
IP Rating: IP20
Size: 129x50x23mm
