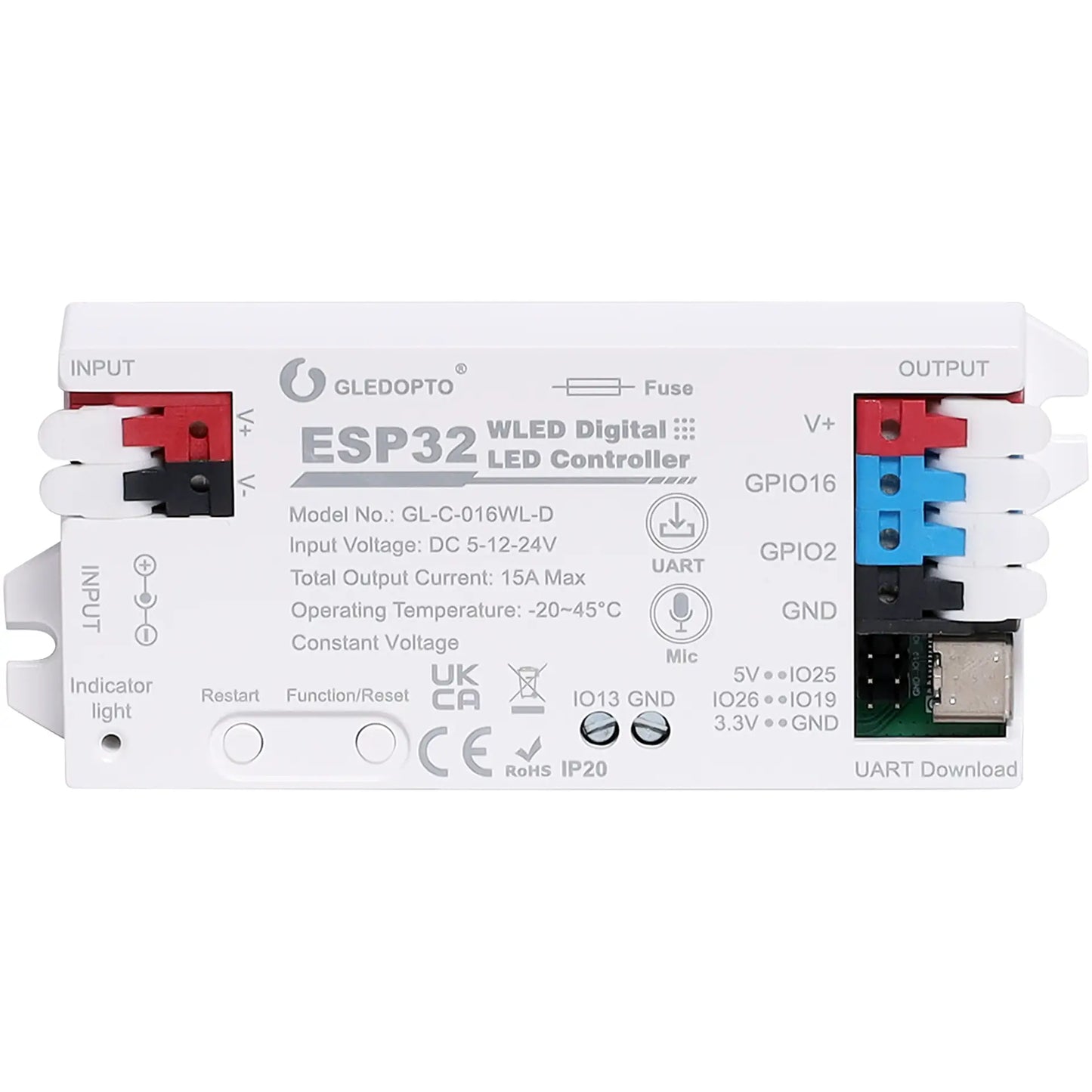

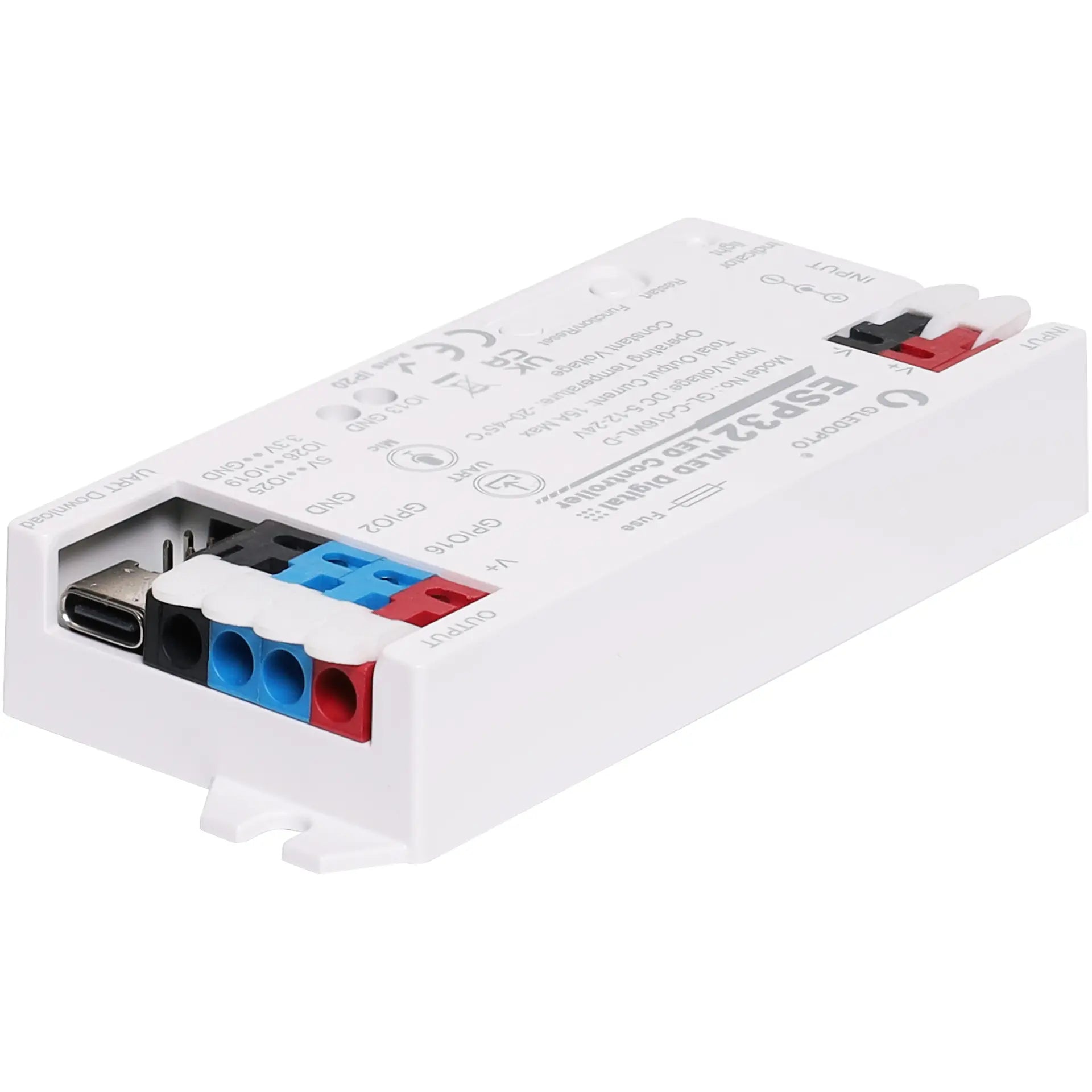

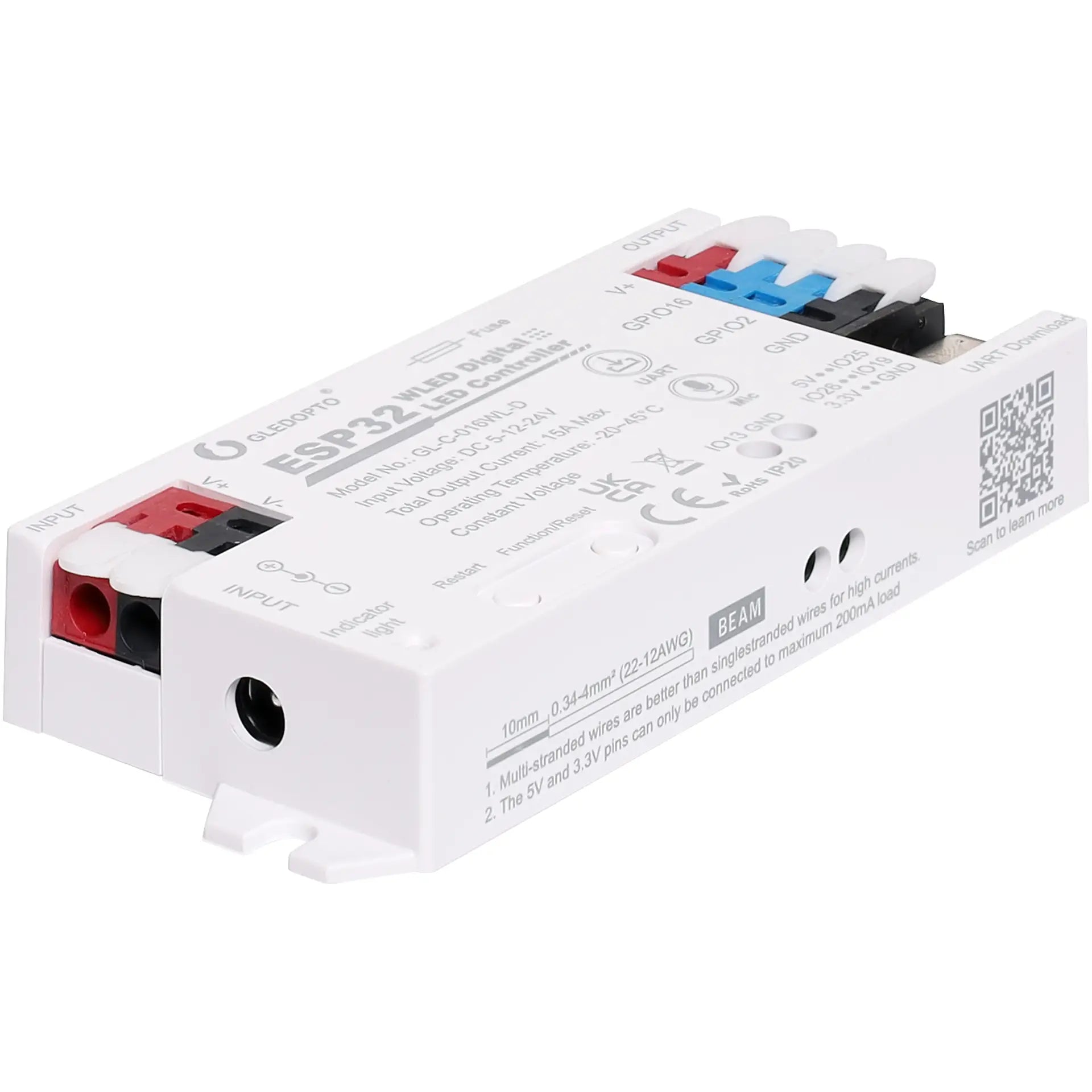

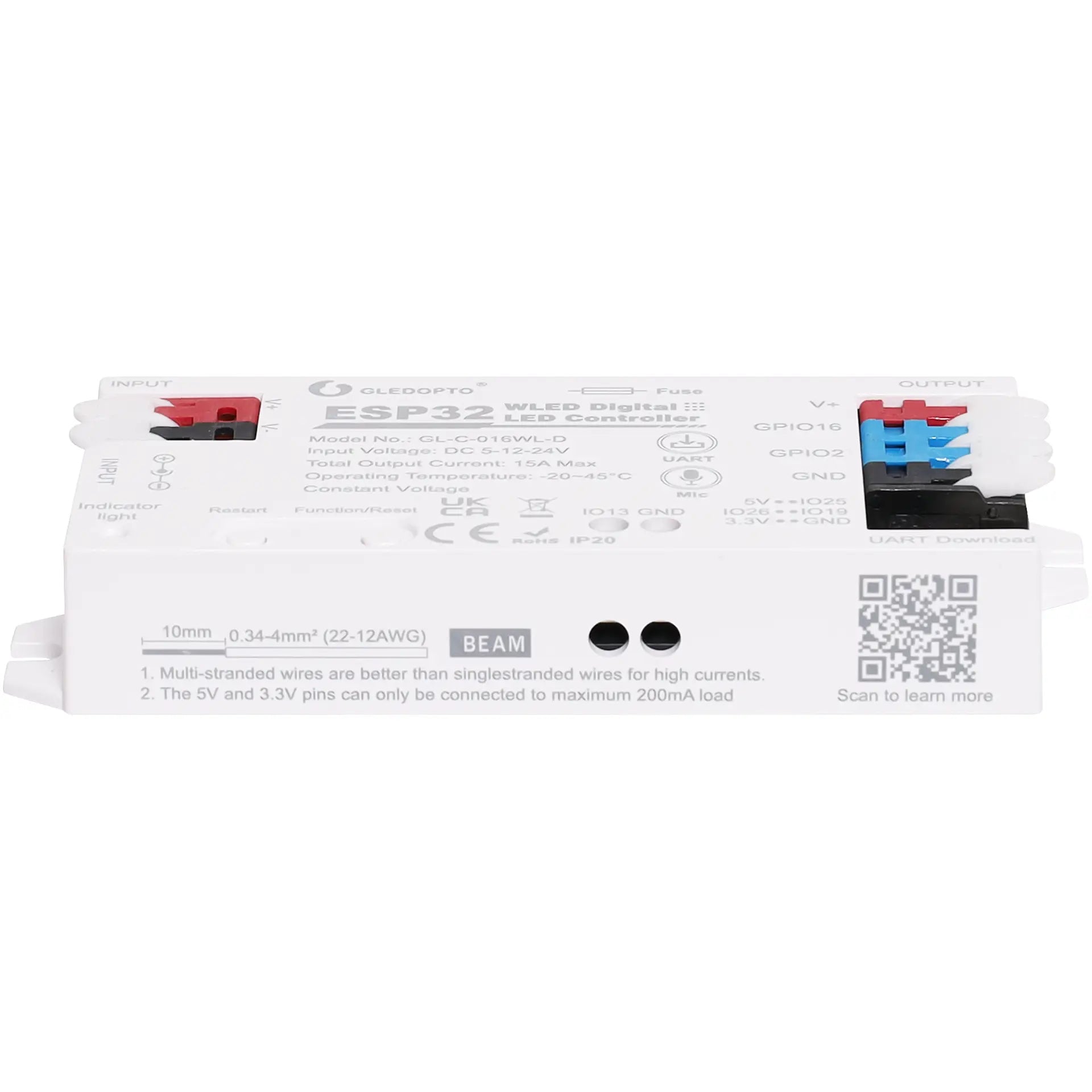

Esp32 Wi-fi Wled Digital Led Controller X3331

This Wi-Fi ESP32 WLED digital LED controller supports most addressable LED strips and provides the ability to customise LED lighting effects. It utilises a open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. This model also features an in-built microphone for music light triggering. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

• Supports most addressable LED strip types (including Altronics X3222A, X3223A and X3216A).
• Supports connection for two LED strips/channels.
• 10A max current load per channel.
• Wi-Fi connection (2.4GHz).
• Push button switch input.
• DIY programmable lighting effects.
• Stable and fast data transfer with UART download over USB C.
• Microphone for music triggering.
• Can be programmed and controlled via PC or smart device (WLED app).

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Output Current/Channel: 10A Max
Protocol: WLED
Connectivity: Wi-Fi
Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B, etc
Material: Flame Retardant PC
Weight: 0.57kg
IP Rating: IP20
Size: 108x45x18mm
