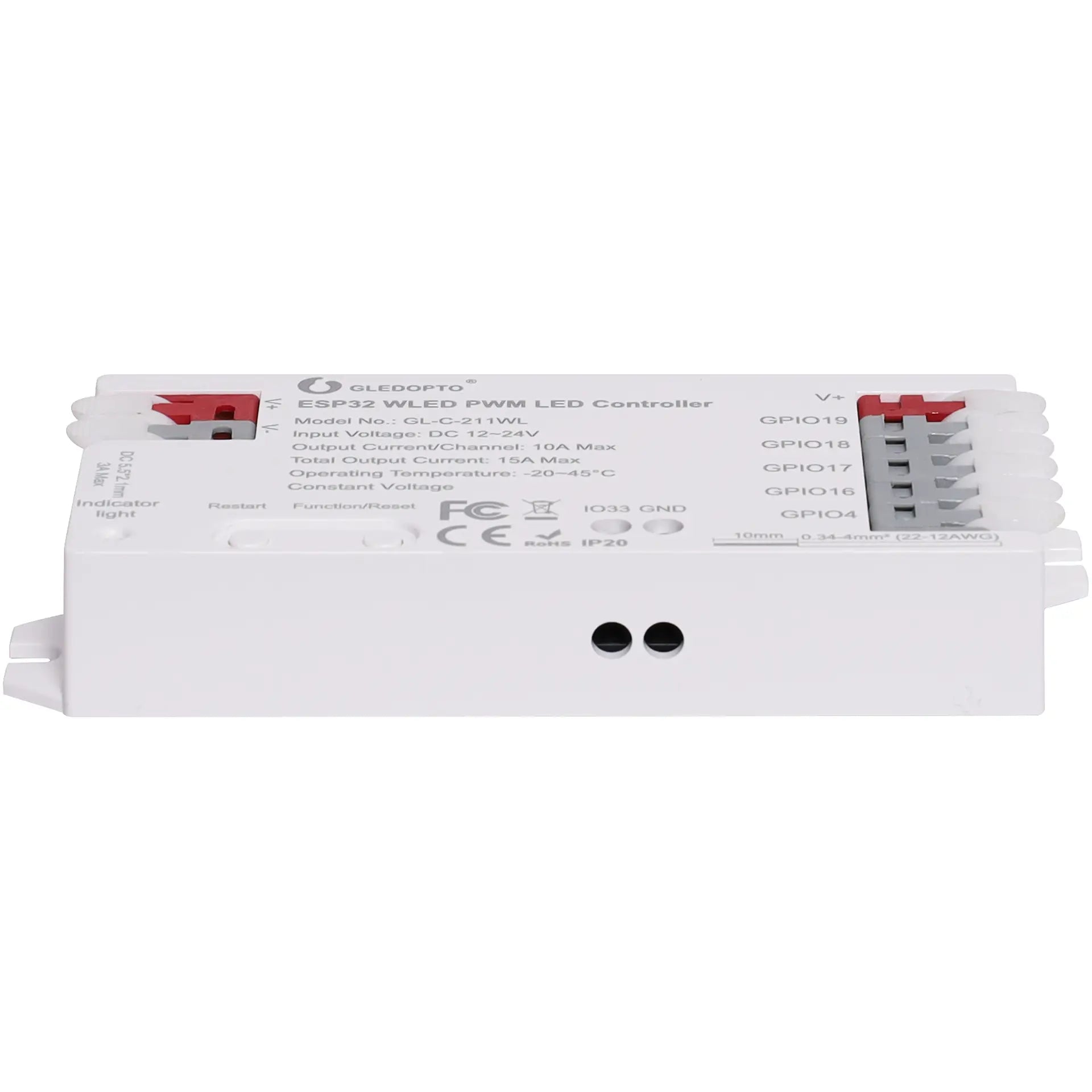

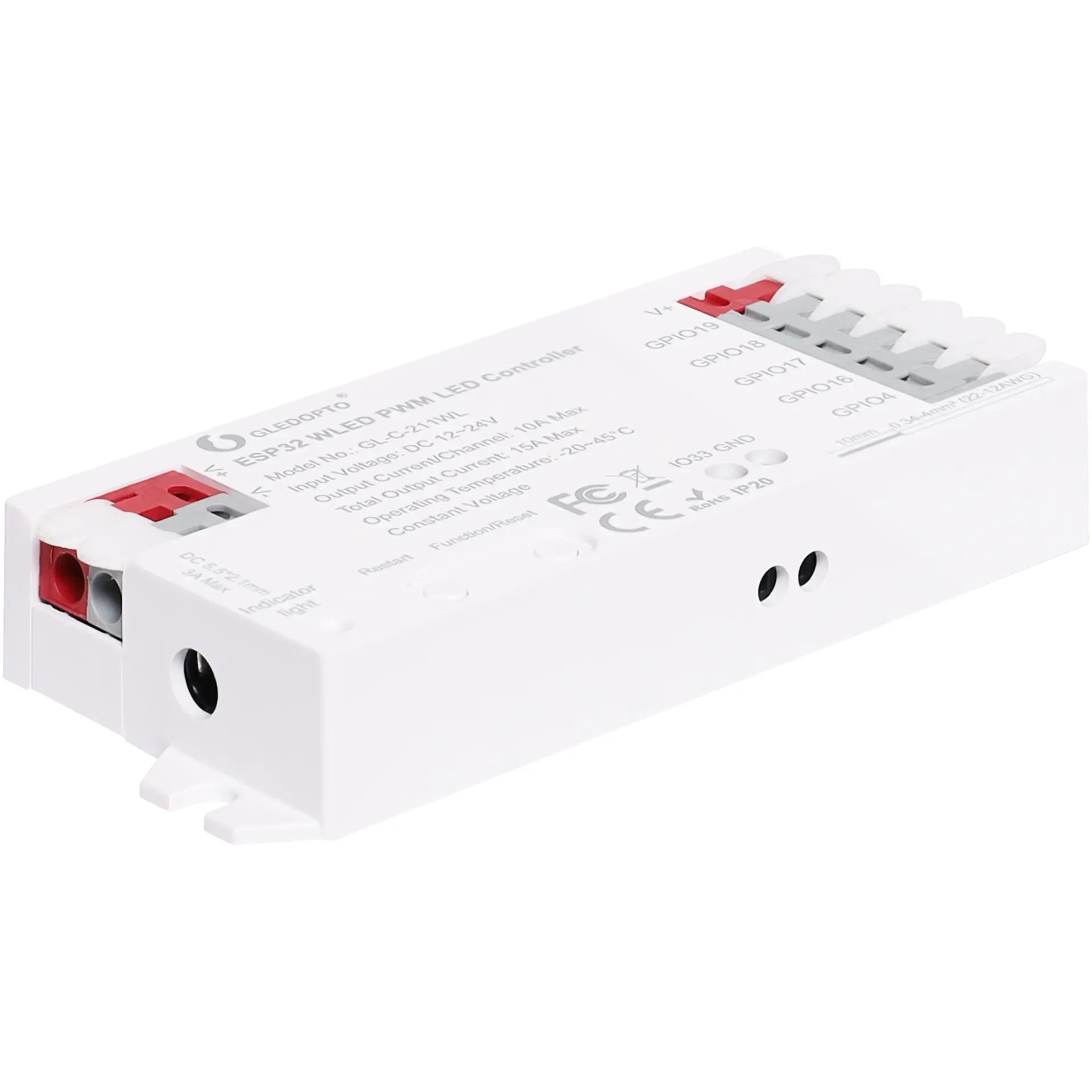

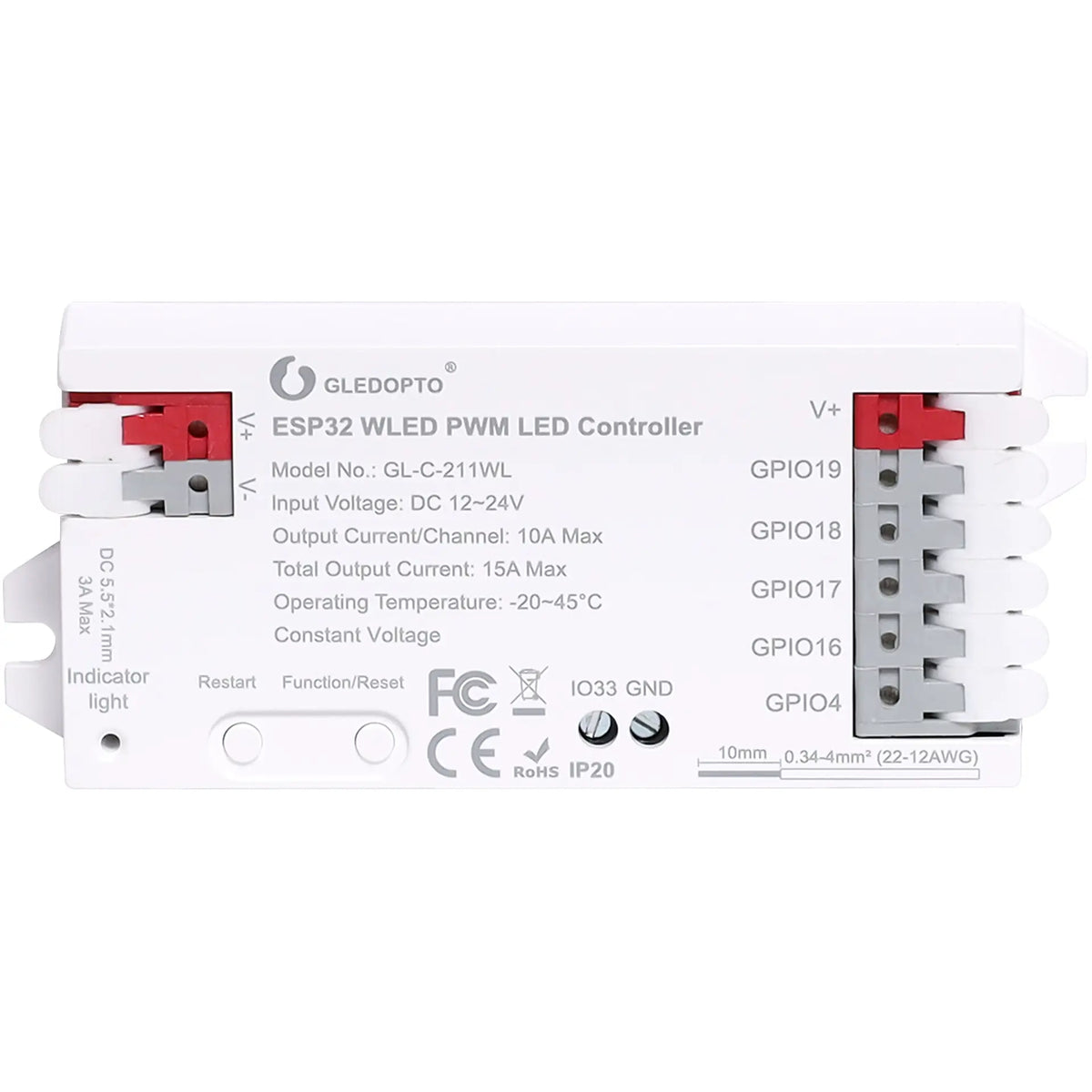

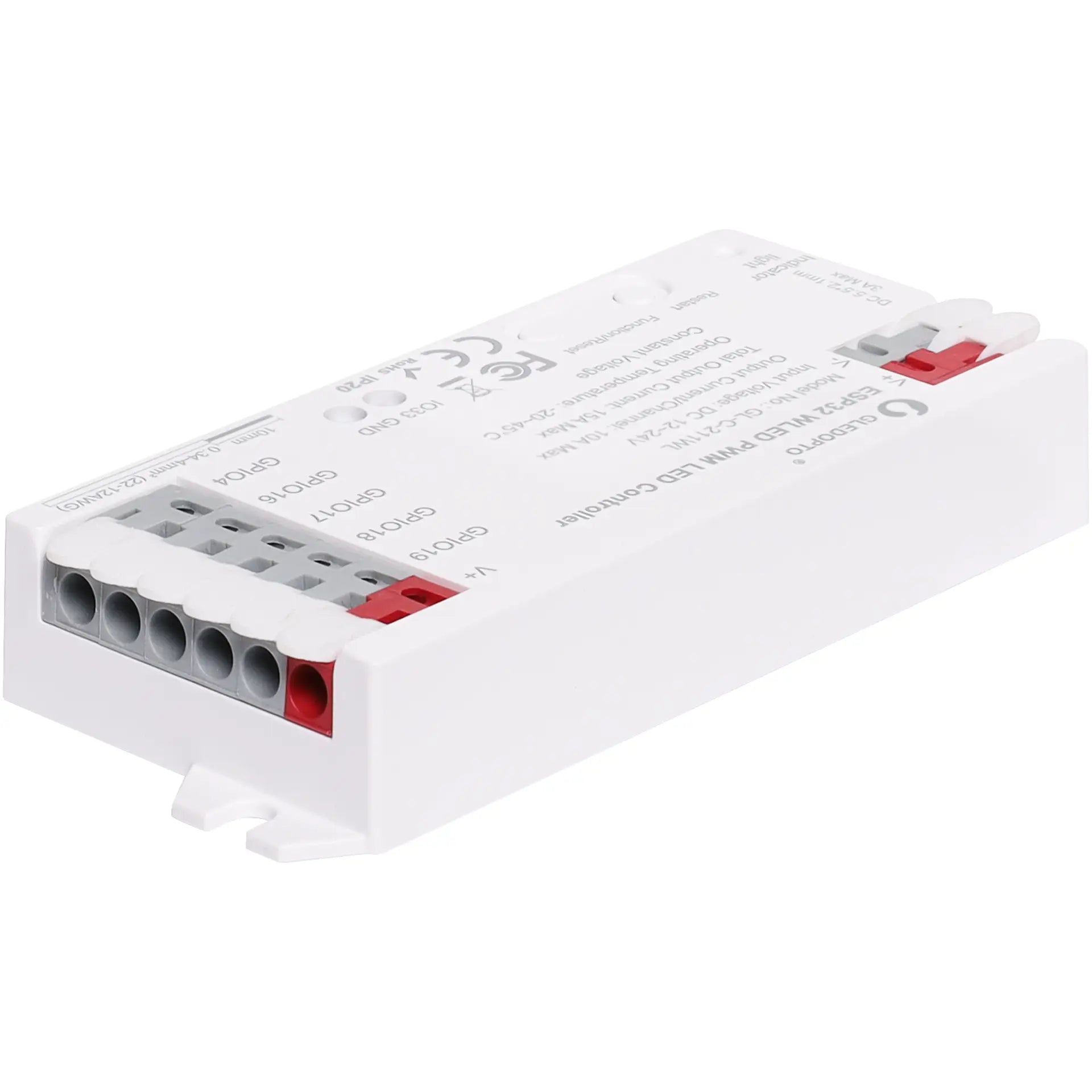

Esp32 Wi-fi Wled Pwm Led Controller X3333

This Wi-Fi ESP32 PWM digital LED controller supports 12-24V dimmable LED strips (single colour / RGB / RGBW / RGBWW / CCT) and provides the ability to customise LED lighting effects. It utilises open source WLED firmware for in app, coding free LED control. LEDs can be controlled over Wi-Fi using a smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

• Supports almost any 12-24v dimmable LED strip (single colour / RGB / RGBW / RGBWW / CCT).
• 10A max current load per channel.
• Wi-Fi connection (2.4GHz).
• Push button switch input.
• DIY programmable lighting effects.
• Can be programmed and controlled via smart device (WLED app).
• Reverse polarity protection
• Synchronized light effects

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Output Current/Channel: 10A Max
Protocol: WLED
Connectivity: Wi-Fi
Application: RGB, RGBW, RGBCCT, CCT, and Single-Color Strips
Material: Flame Retardant PC
Weight: 0.57kg
IP Rating: IP20
Size: 108x45x18mm
