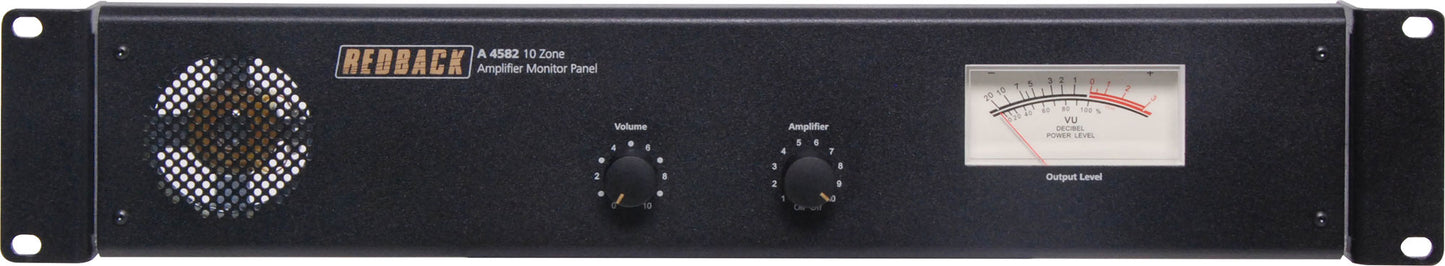

Fire Evacuation 10 Zone Monitor Panel A4582

A handy aid to test and adjust 100V line PA amplifier output levels. Capable of monitoring 10 individual amplifiers (electrically isolated from each other to prevent cross talk).

 Audible and visual monitoring is available from the built in speaker and VU meter. Dual rear panel screw terminals are provided to enable through line connection of each amplifier to its respective speaker circuit.

Dimensions 482W x 50D x 88H mm.

Features

• 2U 19" rack mount
• Monitors up to 10 100V line amplifiers
• Analogue VU output level display
• No power required
• Built in monitor speaker
• Speaker volume control
• Minimal circuitry for low noise
