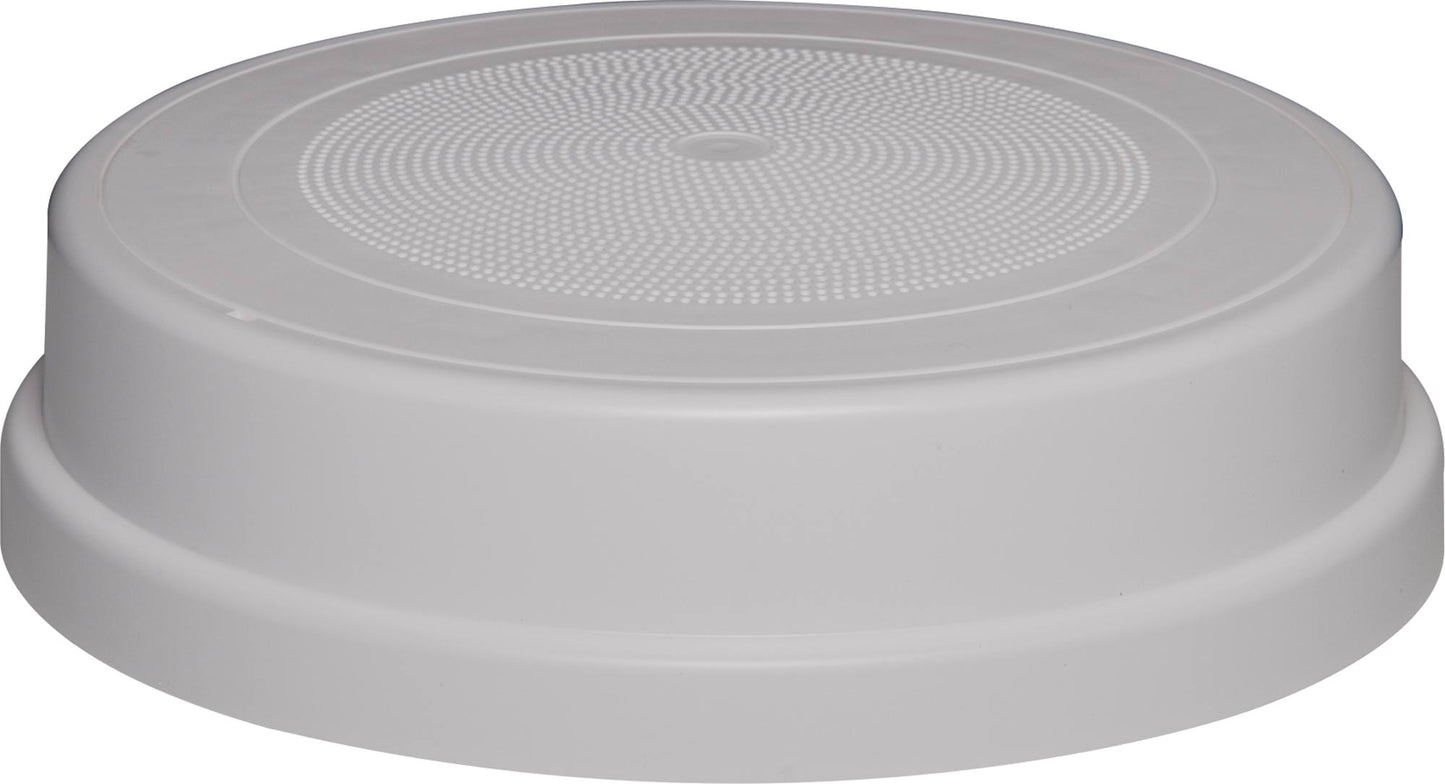

Fire Speaker White AS ISO7240.24 15W 100V 200mm (8”) CF0720

Designed to meet AS ISO7240.24:2018. Fire versions of our popular One-Shot C 0720 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably. The C 0713 adaptor plate enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the slab.

The Labour Saving One-Shot Mounting System
Redback “One-Shot” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. They simply snap fit to the outer mounting ring by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided). The neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation. The transformer is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling.

Features

• Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems
• Excellent speech intelligibility
• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 2 way latching system reduces installation time.
• Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
• Fitted with supervisory capacitor for line monitoring.
• High impact fire retardant enclosure & grille.
• Australian designed & assembled.
