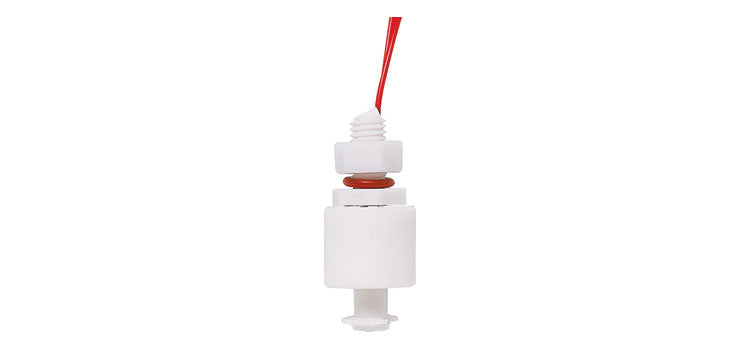

Float Switch 50W 1A Vertical S1163B

New model with increased current handling. Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change. Includes a waterproof membrane which mounts inside tank.

Switch Characteristics
Contact Form: 1A
Contact Rating (max): 50W
Switching Voltage (max): 100V DC
Breakdown Voltage (min): 220V DC
Switching Current (max): 0.5A
Current Resistance (max): 100MΩ

Operating Specifics
Shock (max): 150g (1ms)
Vibration (max): 20g (1-2000Hz)
Operating Temperature: -10°C ~ +85°C
Relative Humidity: 90%  RH (80°C)
Anti-Water (float ball): ±3% (1000hr)
