Fracarro Log Periodic UHF TV Antenna 12DBI LP45F700

The Fracarro LP45F700 UHF Antenna is a pre-assembled Log Periodic antenna ready for plug and play easy installation. Excellent RF engineering and high level design guarantees reliable RF connection to feedline. The antenna has been redesigned to reject of LTE 4G signal interference.

The gain flatness of this log periodic design makes this perfect for Block B,C,D,E TV reception

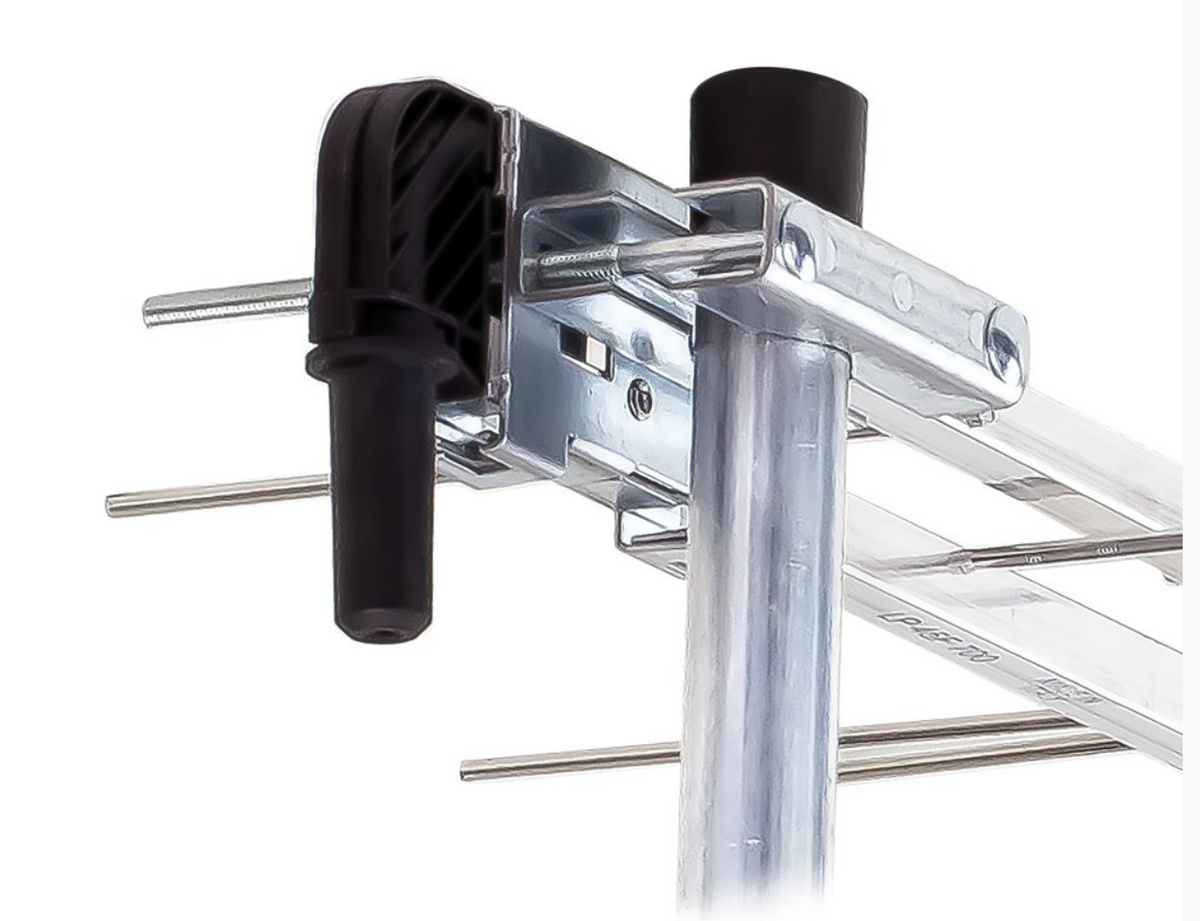

• Thanks to the special pole mount, the antenna can be installed in both vertical and horizontal polarisation without adapters or other accessories.
• The geometric distribution of the dipoles has been redesigned to achieve excellent filtering for interfering signals in the 5G and 4G LTE band above 694 MHz reserved for mobile telephony.
• It features excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, and good electrical performance.
• The F connector is protected by a bayonet connector cover.
• Its design has been registered and made exclusive to the Australian market.

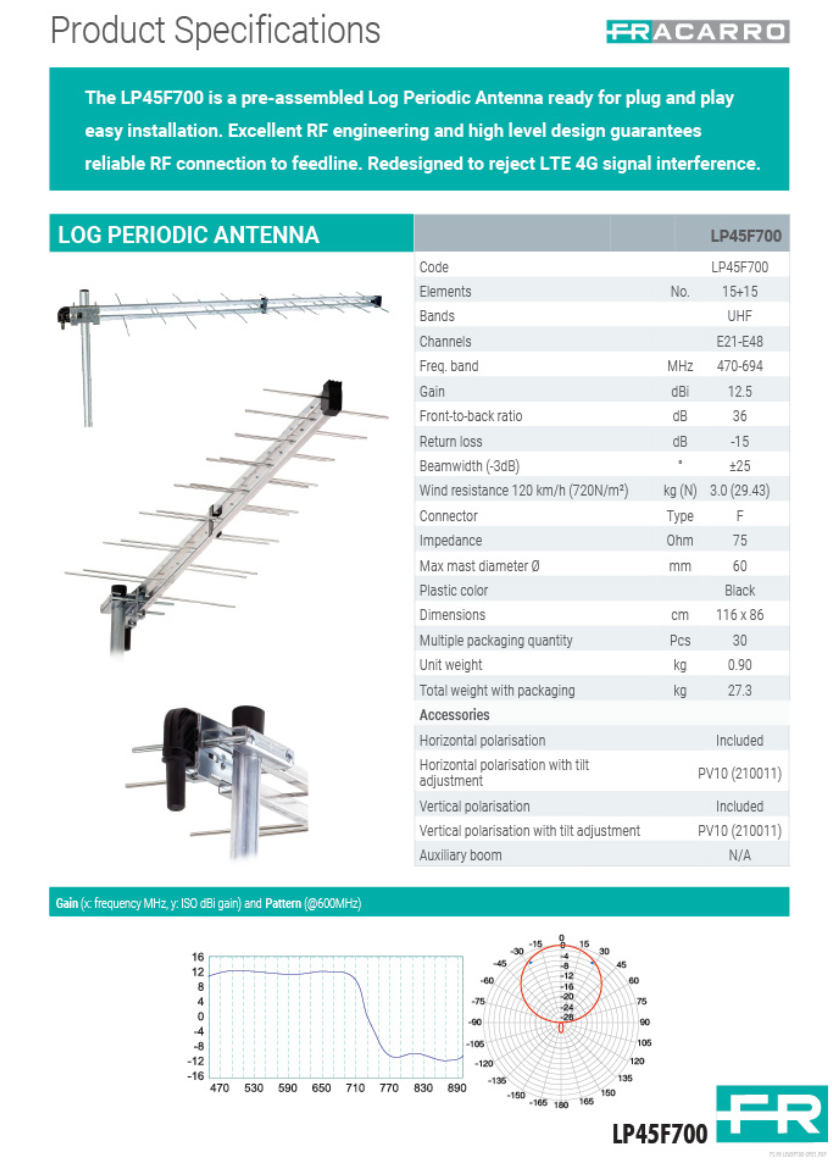

Specifications

Channels: UHF: 28-51 B4&5

Gain:12.5dB

4G & 5G Rejection

Boom Length: 116cm
