• M205 6.3A PCB Mount Covered Fuse Holder
1 2

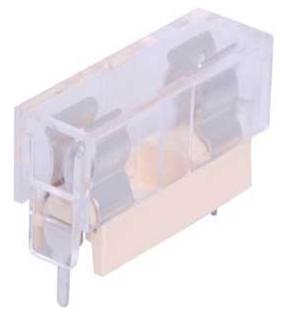

Fuse Holder M205 6.3A PCB Mount Covered S5985

Fuse Holder M205 6.3A PCB Mount Covered S5985

$1.30
$1.30
Sale Sold out
Taxes included.

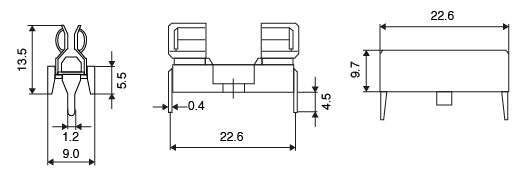

PCB mount with protective cover. 6.3 amps at 250V AC. 1.2mm Ø PC pins at 23mm between centres

Features

  • Use UL Approved Materials
  • Low Cost
  • Low Contact Resistance
  • Flame Retardant

Specifications

  • Insertion & Extraction Force: 1Kg.Min.
  • Dielectric Strength For 60 Sec: AC2000V Min.
  • Suitable Rated Current: 6.3A @ 250V
  • Insulation Resistance At 500VDC: 100MΩ Min
  • Temperature Rise: 60°C Max.
  • Voltage Drop: 15mV Max.
