GME 5 Watt Compact UHF Radio with ScanSuite - Value Pack TX3500SVP

GME 5 Watt Compact UHF Radio with ScanSuite - Value Pack TX3500SVP

SKU: 9319493258715
Price:
$529

Synonymous with quality and reliability, the GME TX3500S is one of the most advanced 5 Watt UHF CB radios of its kind. Equipped with GME's newest digital scanning technology - ScanSuite and an impressive feature list that includes Digital Signal Processing, Advanced Signal Management, Dynamic Volume Control and 19 extra receive channels. With CTCSS and DCS this radio ensures more privacy and less interruption.

The compact size and unique slide-in mounting cradle makes installation simple and our intuitive user interface and controls ensure all of our technology is easy to use and optimises performance across the 80 channels.

Genuine GME 5 year warranty.

TX3500S Features:

  • ScanSuite
  • Advanced signal management
  • Digital signal processing
  • Dynamic Volume Control
  • Wide/narrowband receive filters
  • CTCSS & DCS
  • Full spectrum backlighting
  • Open and group scan mode
  • Selectable priority channel
  • Active channel transmit in scan
  • Graphic signal strength meter
  • Adjustable squelch control
  • External speaker socket
  • Die-cast chassis
  • 5 year warranty

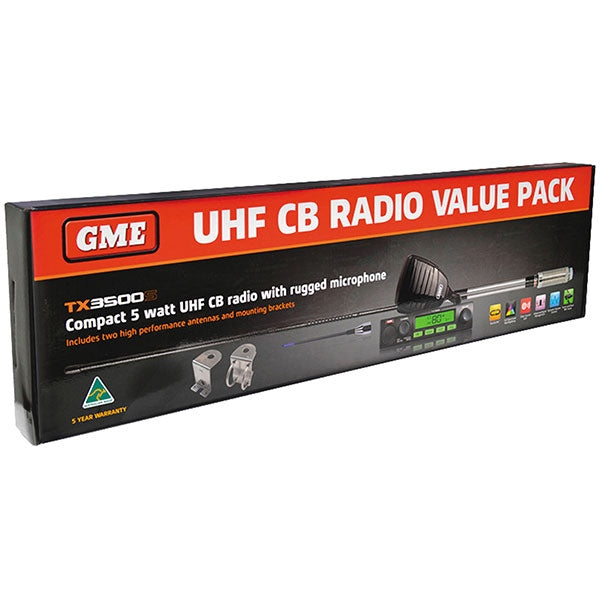

Included in this value pack:

  • TX3500S radio unit
  • Rugged Microphone
  • AE4018K2 antenna kit
  • AE4002 low gain replacement antenna whip
  • MB407SS universal "Z" bonnet/boot antenna mount
  • MB024SS universal bull bar antenna mount
  • Microphone Clip
  • Screw Pack
  • DC Lead
  • Mounting Cradle
  • Instruction Manual
Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX:  476.425-477.4125 MHz
Number of Channels:   80
Channel Spacing:   12.5 kHz
Operation Mode:   Simplex or half Duplex with repeater talk around.
Scanning Speed:   50 ms per channel (20 channels per second).
Antenna Impedance:   50 Ohms nominal
Nominal Battery Voltage:   12 volts DC
Operating Voltage Range:   10-16 volts DC
Battery Polarity:   Negative Earth
Standard Test Voltage:   13.8 volts DC
Overvoltage Protection:   30 volts DC maximum. At 18 volts DC the channel display flashes ‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit.
Reverse Voltage Protection:   Diode Crowbar
Overcurrent Protection:   In-line 2 Amp Fuse
Operating Temperature:   -10°C to 60°C

Transmitter

RF Output:   5 watts
Spurious Emission:   < - 70 dBc
Frequency Error:   < ± 1.5 kHz
Modulation:   FM
Maximum Deviation:   < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response:   +6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise:   > 45 dB unweighted
Current Consumption:   1.7 Amps with 50 Ohm termination

Receiver

Intermediate Frequencies   38.85 MHz, 450 kHz
Sensitivity   - 123 dBm for 12 dB SINAD unweighted
Selectivity   - 6 dB at + 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity   -72 dB
Blocking Immunity   -98 dB
Spurious Response Immunity   70 dB
Audio Output Power   3 watts average into 4 Ohms
Audio Signal to Noise   > 45 dB unweighted
Current consumption   < 175 mA muted 750 mA Full volume.
Conducted Spurious Emission   < - 70 dBm

Dimensions  29 (H) x 128 (L) x 117 (D) mm
Weight  450 grams
Antenna  SO239 panel socket
External Speaker  3.5 mm mono jack
Microphone Port  6 Way telephone style with rubber strain relief

Compatible Accessories

  • SPK04 - 4 Ohm Extension Speaker Box
  • MB205 - Plastic Microphone Bracket
  • MB009 - M/Bracket with rails, Fixed Mount Radios*
  • LE026 - 12V Lighter Lead, suits GME fixed radios*
  • LE09 - 12V DC Lead, suits most GME fixed radios*
  • LEM6P - Microphone Extension Lead Modular
  • CA001 - Mounting Rail for MB6
  • CA002 - Mounting Clamp for MB6 Bracket
  • SPK08 - 8 Ohm Extension Speaker
  • SPK09 - 4 Ohm Extension Speaker
  • SPK45B - Water Resistant Extension Speaker BLK
  • MBD001 - Radio DIN Mount Kit
