GME 5 Watt Super Compact Remote Mic UHF CB Radio - Ultimate Value Pack

SKU: TX3350UVP

Price:
$639

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic

The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.

The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design.  SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discreetly installed in almost any location within a vehicle and without the need for extension speakers.

Product Details

  • Powered by Pure Sound DSP engine
  • Full spectrum backlit LCD microphone with Soundpath speaker
  • User selectable open and group scan
  • User adjustable squelch
  • User selectable duplex channels
  • User selectable priority channel
  • 104 in-built DCS codes
  • 50 in-built CTCSS codes
  • 5 digit selcall with quiet mode
  • Five year warranty
  • Australian design and manufacture

Compliant Specification

Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.

  • Frequency Range TX:  476.425 – 477.4125 MHz
  • Number of Channels:  80 UHF CB
  • Channel Spacing:  12.5 kHz
  • Operation Mode:  simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
  • Scanning Speed:  20 channels per second
  • Antenna Impedance:  50 Ohms nominal
  • Nominal Battery Voltage:  13.8 volts DC
  • Operating Voltage Range:  10-15 volts DC
  • Overvoltage Protection:  25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
  • Overcurrent Protection:  In-line 2A Fuse
  • Frequency stability:  ±2.5 PPM
  • Modulation:  FM

TRANSMITTER:

  • RF Output:  5.0 watts max
  • Maximum Deviation:  < ± 2.5 kHz at + 20 dB limiting
  • Transmit Frequency Response:  +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
  • Current Consumption:  1.5 amps with 50 Ohms termination

RECEIVER

  • Intermediate Frequencies:  1st - 21.54, MHz 2nd - 450 kHz
  • Sensitivity:  - 123 dBm for 12 dB SINAD unweighted
  • Selectivity:  - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
  • Intermodulation Immunity:  73 dB
  • Blocking Immunity:  100 dB
  • Spurious Response Immunity:  70 dB
  • Audio Output Power:  3 watts average into 4 Ohms
  • Current consumption:  < 180 mA muted 600 mA @ max. A.F output
  • Receive Frequency:  ‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
  • Conducted Spurious Emission:  < - 57 dBm
  • Dimensions:  102 (W) x 87 (D) x 23 (H) mm
  • Weight:  158 grams

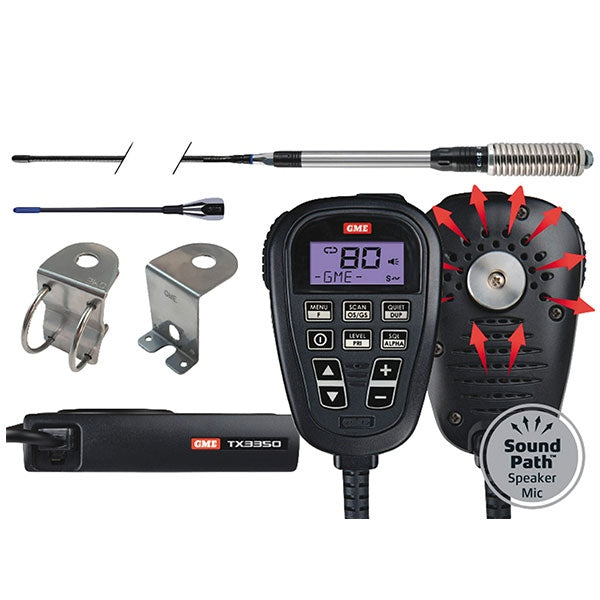

In the Box:

  • TX3350 Radio Unit
  • LCD Speaker Microphone
  • AE4018K3 Rugged Antenna Kit
  • AE4002 Low Gain Replacement Antenna Whip
  • MB407SS Universal "Z" Bonnet/Boot Antenna Mount
  • MB024SS Universal Bull Bar Antenna Mount
  • Microphone Clip
  • Screw Pack
  • DC Lead
  • Mounting Cradle

Manual

Brochure
