Description
The XRS Connect Touring pack is the latest addition to the revolutionary range of XRS radios, designed to be smart, adaptable and rugged.
Enabled by Bluetooth® Smart technology, the XRS Connect range are a new generation of connected UHF CB radios with unique features exclusive to GME; including the XRS Connect smartphone app, and the recently released, game-changing XRS Connect Location Services smartphone app.
Combined with a market-leading Speaker Microphone featuring a bright, anti-glare OLED display and powerful 2 watt front-facing speaker, the XRS Connect range of radios offer outstanding performance in the toughest conditions.

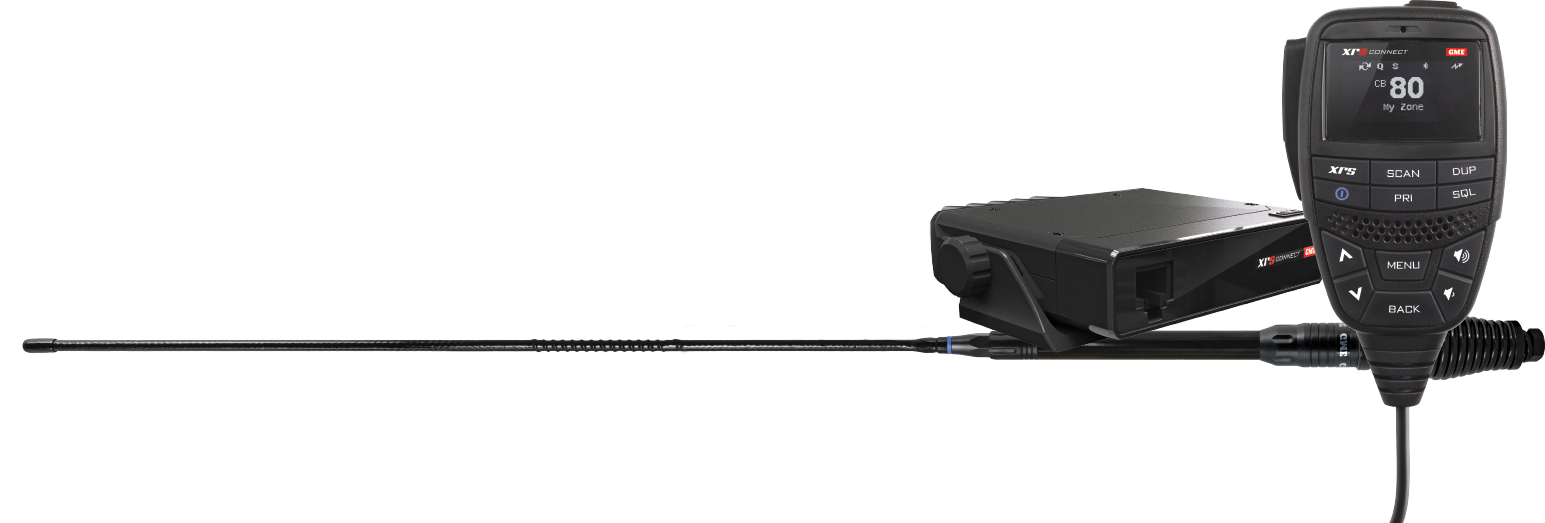

The XRS Connect Touring Pack pairs the popular XRS-330C Super Compact UHF CB Radio, with the AE4018BK1 elevated-feed antenna, the perfect solution for those users looking for the ultimate communications setup for their 4WD tourer.
- Bluetooth Wireless technology – Smartphone control
- Professional grade OLED speaker microphone
- Class-leading 2 watt front-facing speaker
- User-customisable buttons
- Super compact design
- Includes 6.6dBi Elevated-feed antenna
- Download the XRS Connect App on Google Play or the App Store
In the Box:
- XRS-330C Super Compact UHF CB radio with Bluetooth Smart Connectivity
- Professional-grade speaker microphone (MC664B)
- Elevated-feed UHF CB Antenna (AE4018BK1)
- 12V DC power Lead
- Mic extension lead (LE040)
- Mic extension adaptor kit (AD008)
- Quick start guide
GENERAL
- Compliant Specification: Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
- Frequency Range TX: 476.425-477.4125 MHz
- Number of Channels: 80
- Channel Spacing: 12.5 kHz
- Operation Mode: Simplex or half Duplex with repeater talk around.
- Scanning Speed: 25 ms per channel (40 channels per second)
- Antenna Impedance: 50 Ohms nominal
- Nominal Battery Voltage: 12 volts DC
- Operating Voltage Range: 10-16 volts DC
- Battery Polarity: Negative Earth
- Standard Test Voltage: 13.8 volts DC
- Overvoltage Protection: 30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
- Reverse Voltage Protection: Diode Crowbar
- Overcurrent Protection: In-line 2 amp fuse
- Operating Temperature: -10°C to 60°C
TRANSMITTER
- RF Output: 5 watts
- Spurious Emission: < - 70 dBc
- Frequency Error: < ± 1.5 kHz
- Modulation: FM
- Maximum Deviation: < ± 2.5 kHz at + 20 dB limiting
- Transmit Frequency Response: +6 dB per octave 300 Hz to 3 kHz +1-3 dB
- Demodulated Audio Signal to Noise: > 45 dB unweighted
- Current Consumption: 1.5 amps with 50 Ohms termination
RECEIVER
- Intermediate Frequencies: 38.85 MHz, 450 kHz
- Sensitivity: - 122 dBm for 12 dB SINAD unweighted
- Selectivity: - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
- Intermodulation Immunity: -72 dB
- Blocking Immunity: -98 dB
- Spurious Response Immunity: 70 dB
- Audio Output Power: 3 watts average into 4 Ohms
- Audio Signal to Noise: > 45 dB unweighted
- Current consumption: < 175 mA muted 750 mA Full volume
- Conducted Spurious Emission: < - 70 dBm
MECHANICAL SPECIFICATIONS
- External Speaker: 3.5 mm mono jack
Brochure
Compatible Accessories
- SPK04 4 Ohm Extension Speaker Box
- SPK07 Water Resistant Extension Speaker
- SPK08 8 Ohm Extension Speaker
- SPK09 4 Ohm Extension Speaker
- SPK45B Water Resistant Extension Speaker BLK
- CA45R Gimbal Knob suits TX3400/TX3420 Remote Head
- LE026 12V Lighter Lead, suits GME fixed radios*
- LE09 12V DC Lead, suits most GME fixed radios*
- LEM6P Microphone Extension Lead Modular
- LE002 1.8m Replacement Lead, TX3400/3420
- LE040 Mic Extension Cable, suits TX3440/3540
- AD001 8 Pin to 8 Pin Adaptor for LE040
- AD008 8 pin Adaptor Mic lead extension
- AE4005 UHF Flexible Antenna, BLK 2.1dBi
