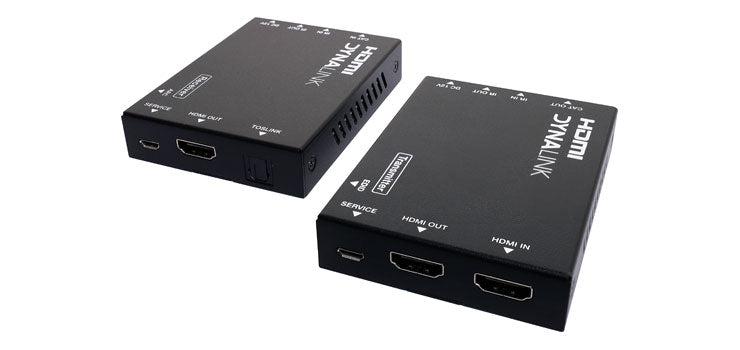

HDMI & Bi-Directional Infra-Red Cat6 Extender UTP Balun A3242B

SKU: A3242B


This 18Gbps HDMI Extender can extend HDMI HD signal and IR control signal to a distance up to 70m via a single CAT6/6a cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. Video resolution is up to 4K/2K@60Hz. It supports EDID copy pass-through function between the source device and display device. It supports POC (Power over Cable) and audio-return-channel (ARC) functions.

This Extender can be widely used in multi-media conference halls, TV teaching and large-screen displays.

Package Contents
1 x HDMI Transmitter
1 x HDMI Receiver
1 x 12V DC Adapter
1 x IR Blaster Cable
1 x IR Receiver Cable
4 x Mounting Ears
8 x Machine Screws (KM3*4)
1 x User Manual

HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K/2K@60Hz RGB/YCBCR 4:4:4
IR Level: 5Vp-p
Transmission Distance: 4K/2K@60Hz 4:4:4--70m, 1080P--70m (CAT 6/6a cable)
Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour Depth: 8/10/12bit
HDR: HDR. HDR10, HDR10+, Dolby Vision, HLG
Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0

Transmitter Connection
Input: 1xHDMI IN (TypeA, 19-pin female)
Output: 1xHDMI Out (RJ45), 1x CAT OUT (RJ45)
Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)

Receiver Connection
Input: 1xCAT IN (RJ45)
Output: 1xHDMI Out (TypeA, 19-pin female), 1x TOSLINK
Control: 1x SERVICE (Micro-USB jack), 1x IR IN (3.5mm Stereo Mini-Jack), 1x IR OUT (3.5mm Stereo Mini-Jack)

Housing: Metal Enclosure
Colour: Black
Dimensions: Transmitter/Receiver: 90W x 68D x 18Hmm
Weight: Transmitter: 160g, Receiver 155g
Power Supply: DC 12V/1A; Support bi-directional POC Function
Power Consumption: 3.36W (max)
Operating Temperature: 0°C-40°C
Storage Temperature: -20°C-60°C
Relative Humidity: 20-90% RH (non-condensing)
