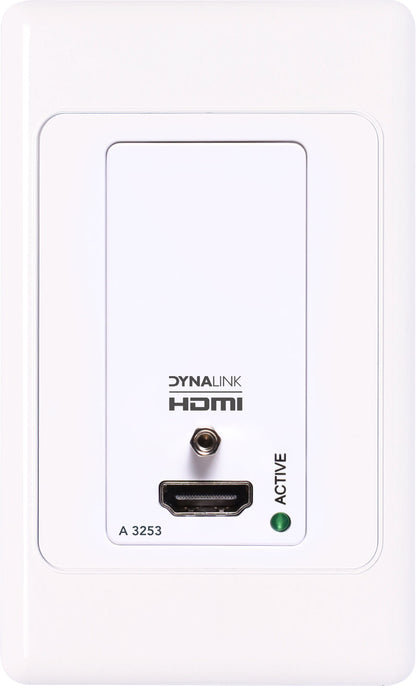

Hdmi Hdbaset Cat6 Extender System A3253

This 4K60 HDBaseT wall plate provides the latest connectivity for HDMI signals over long distances up to 40m (4K @ 60Hz) or 70m (1080p) using standard Ca6/6a/7 UTP cabling. Perfect for boardrooms, conference venues, classrooms where long distances between source and display are common.

The use of HDBaseT technology ensures optimum signal integrity without losses while providing the latest audio & video feature support (such as HDR10+, Dolby Atmos, DTSX, HD Master Audio and more). It also supports two-way IR and RS-232. Plus power over ethernet (PoE) makes installation simple. The wallplate is mated to a standard Australian electrical wallplate for simple installation. System includes 1 wallplate transmitter and 1 receiver. Includes power supply.

In the box:

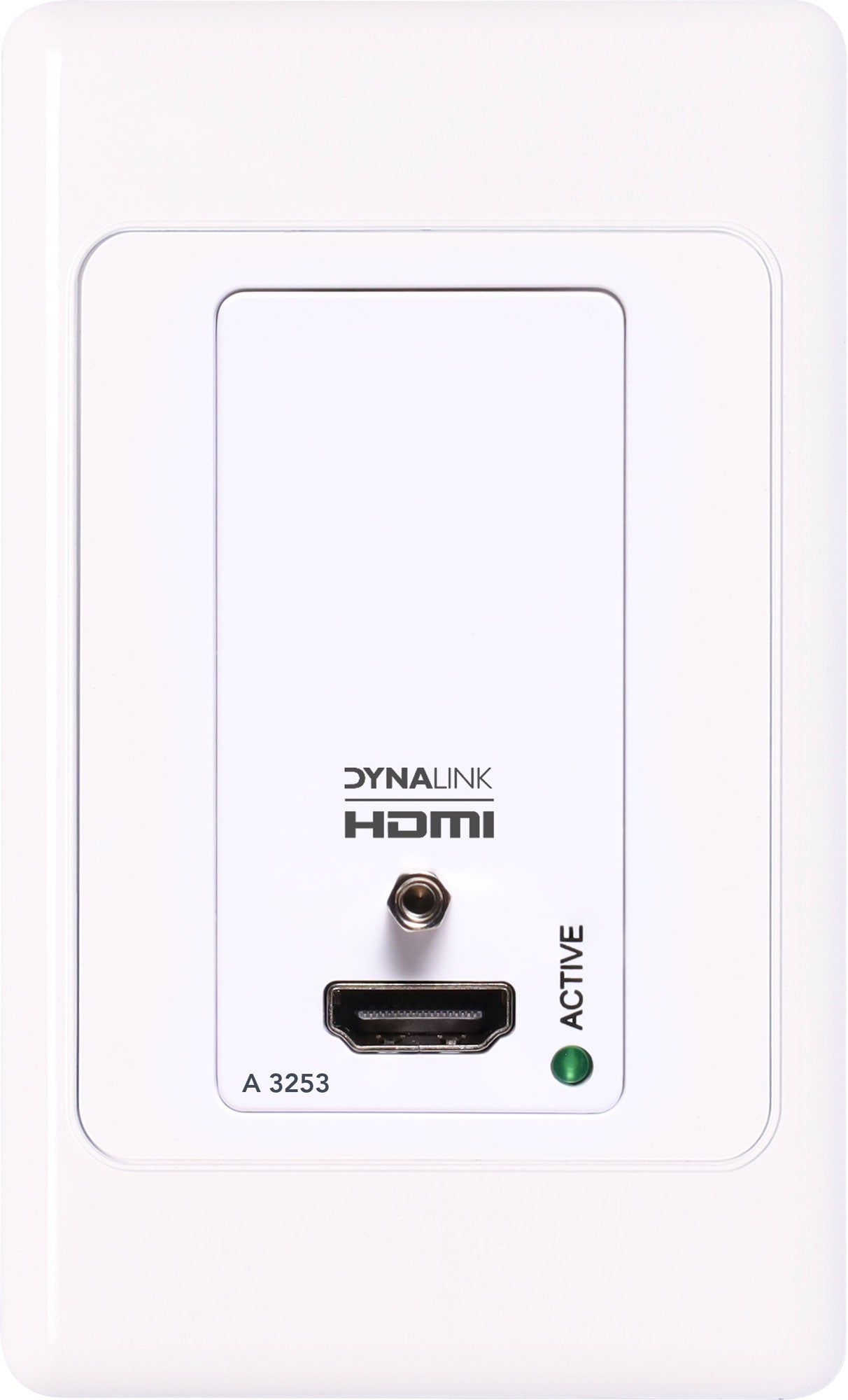

1 x Transmitter wallplate.

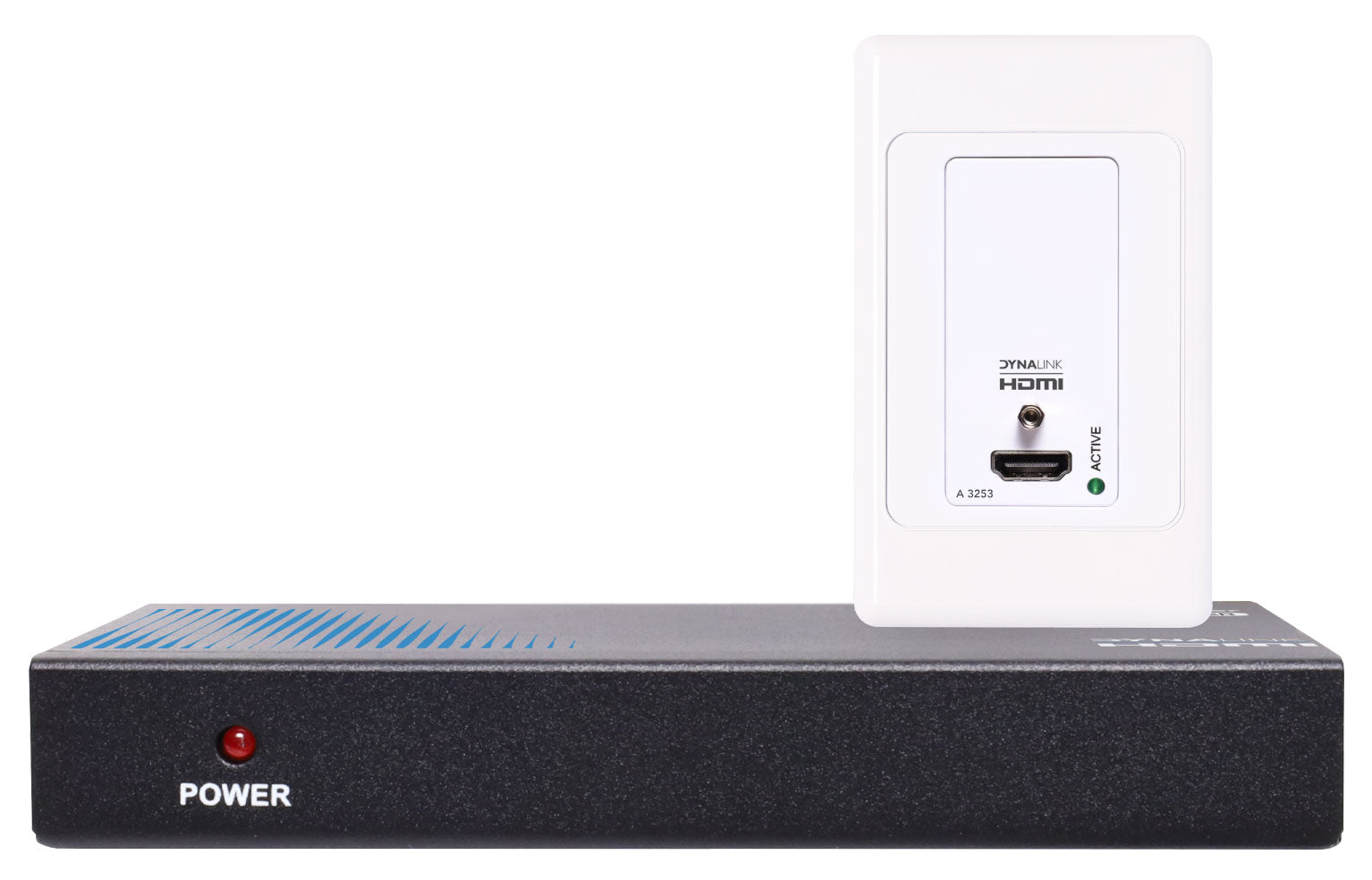

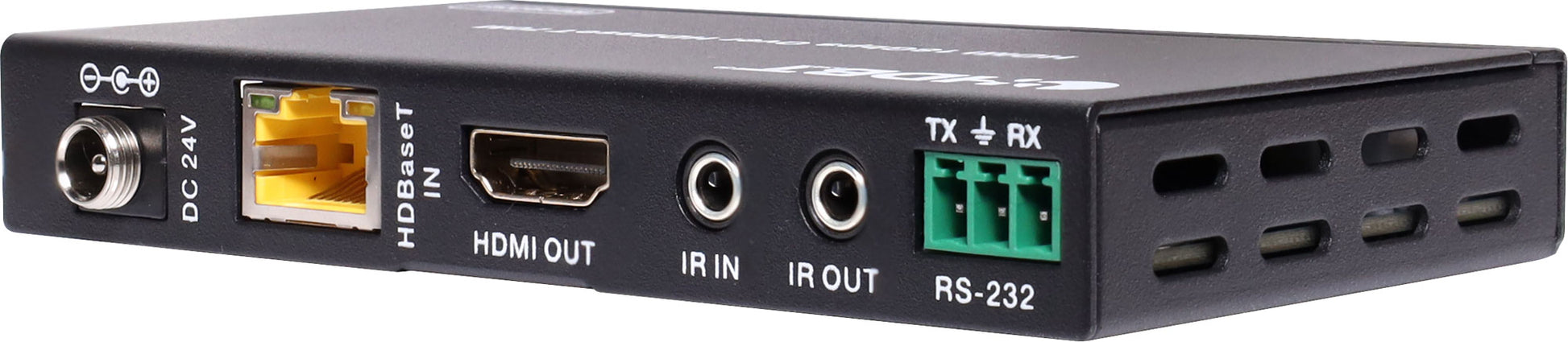

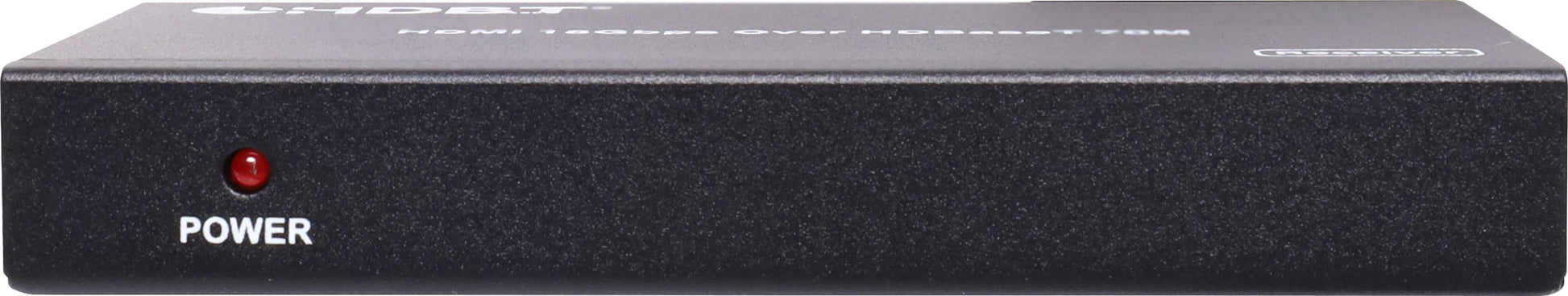

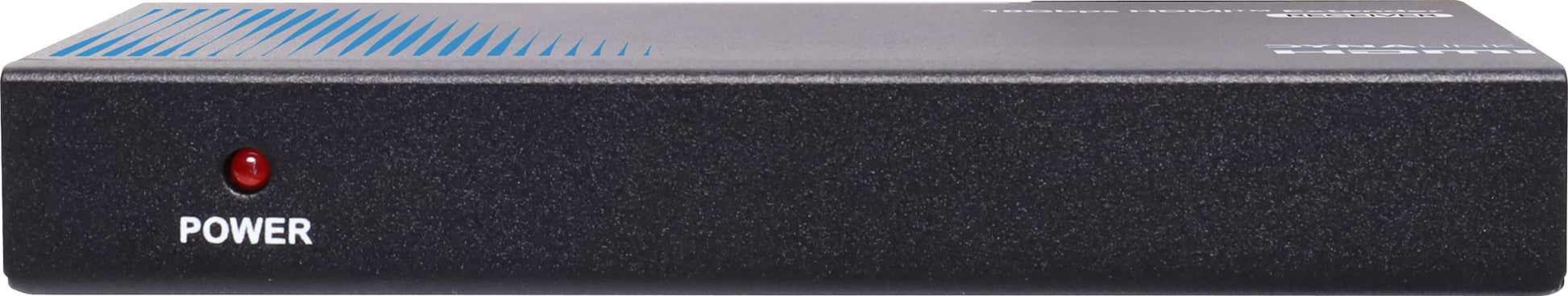

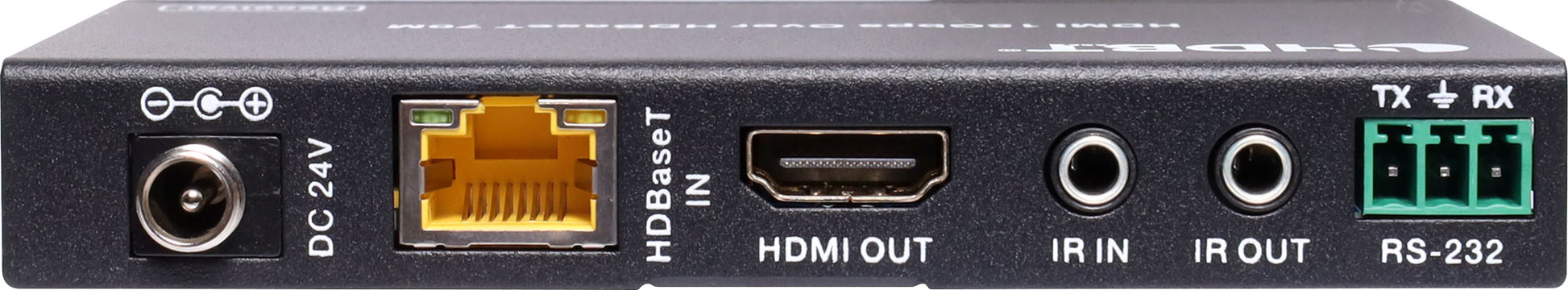

1 x Receiver unit.
1 x 24V DC power supply.
1 x User manual.

Features

• Compliant with HDMI 2.0b and HDCP 2.2 specifications.
• HDMI input supports a maximum video bandwidth of 18Gpbs.
• Video resolution supports up to 4K@60Hz 4:4:4.
• Through a single CAT6/6a/7 network cable, HDBaseT output can extend the video signal by 40 meters (resolution of 4K@60Hz) or 70 meters (resolution of 1080P@60Hz).
• Supported HDMI audio formats include Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; LPCM 2/5.1/7.1CH.
• Fitted to a standard Australian wallplate.
• Support POC power supply (only one-way power supply from receiver to transmitter)
• Transfer Bidirectional Infrared control signal together with the HDMI signal.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.

Instructions
