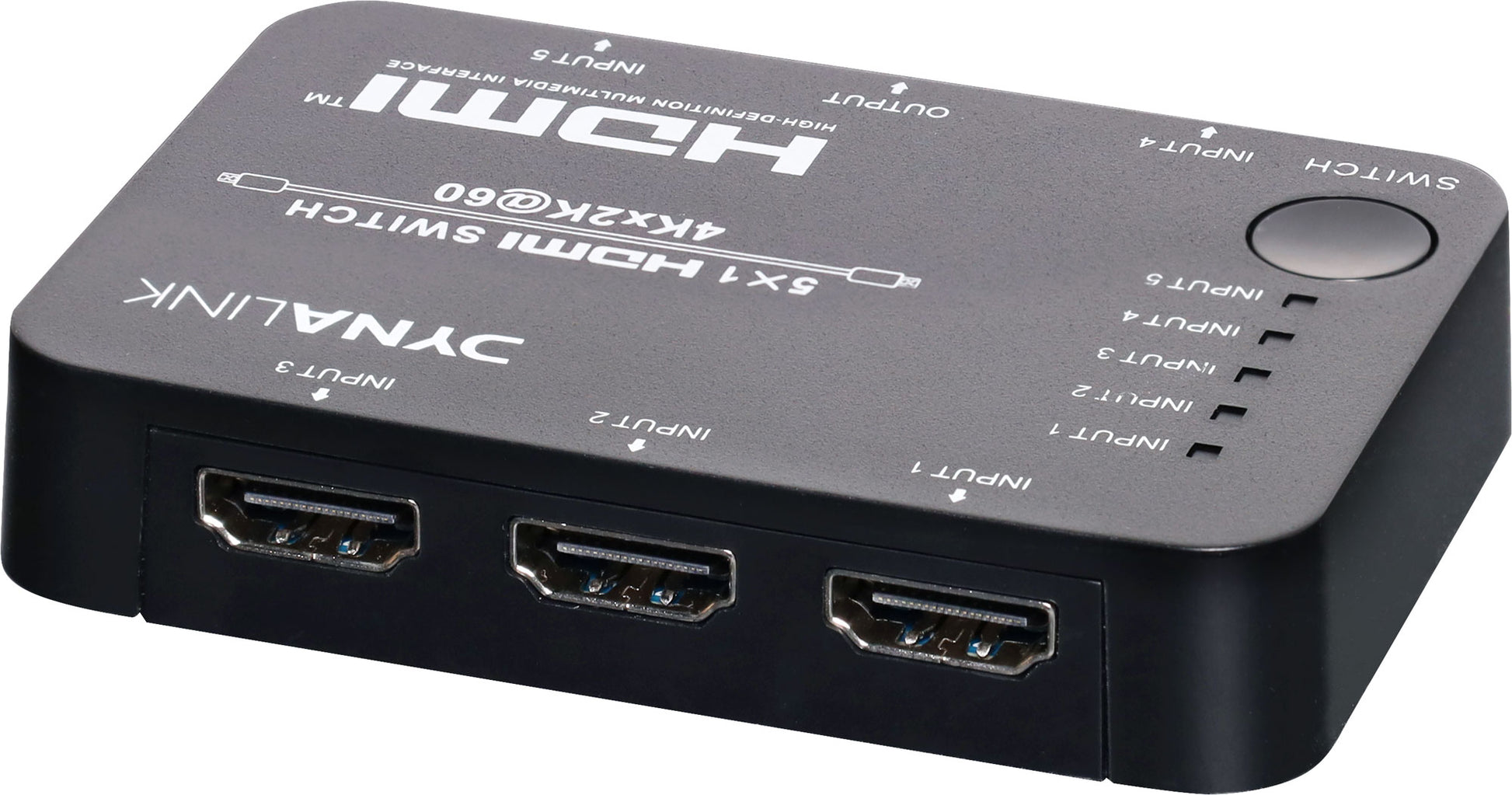

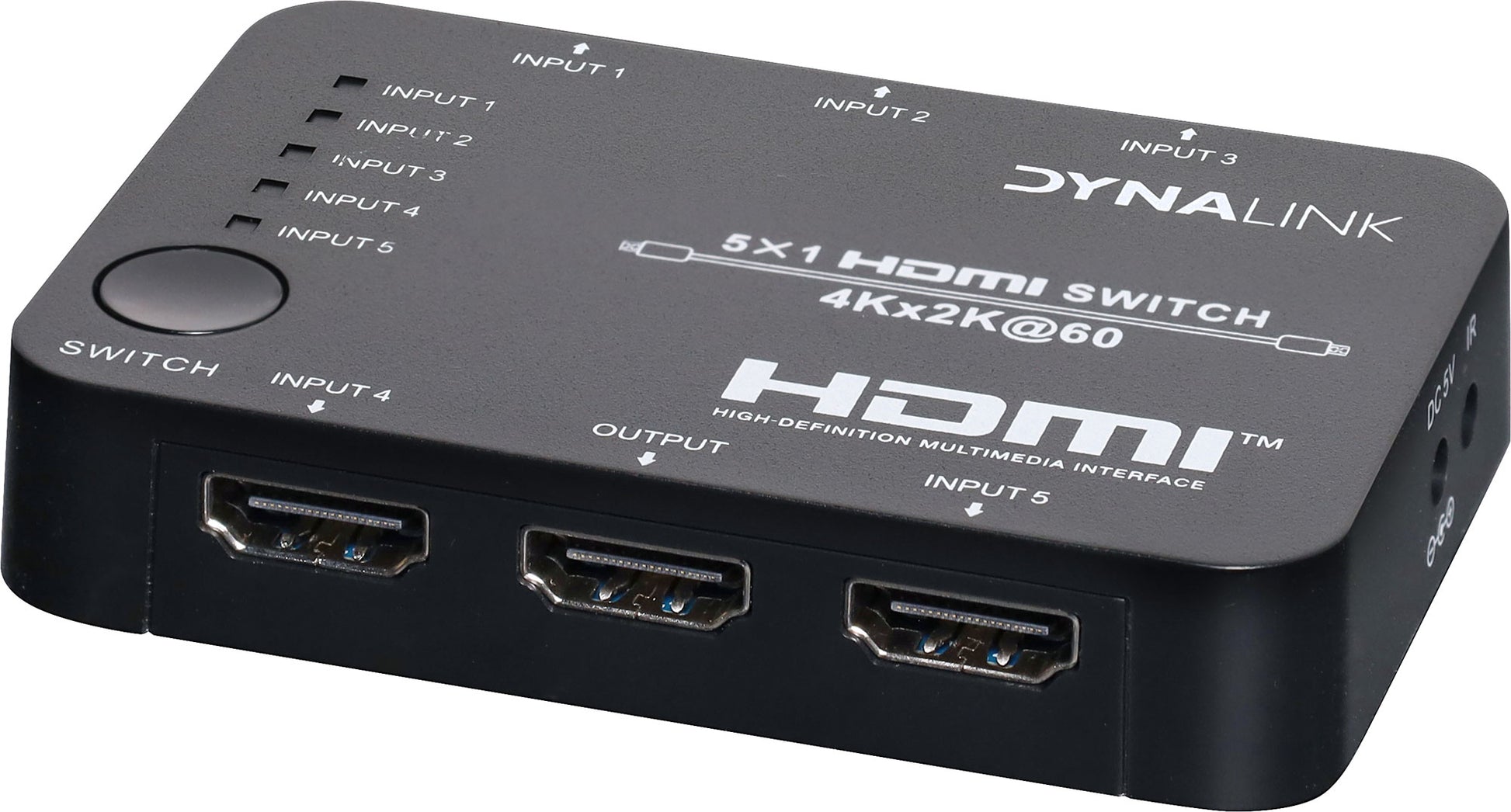

Switch between 5 HDMI AV sources with this professional 4K ready HDMI switcher. Includes an IR remote control and receiver unit, which allows the switcher to be mounted behind the TV or inside a cabinet. Supports 12-bit deep colour, 6.0Gbps high speed, full UltraHD 4K. Maximum distance between TV and HDMI source ≈25m. Supports HDR, HDR10, Dolby Vision and HLG. Dimensions: 87W × 59.5D × 19H mm. Remote requires CR2025 battery.
Please Note: Requires USB power supply either from a peripheral equipment source (TV/Amp) or an M 8861A

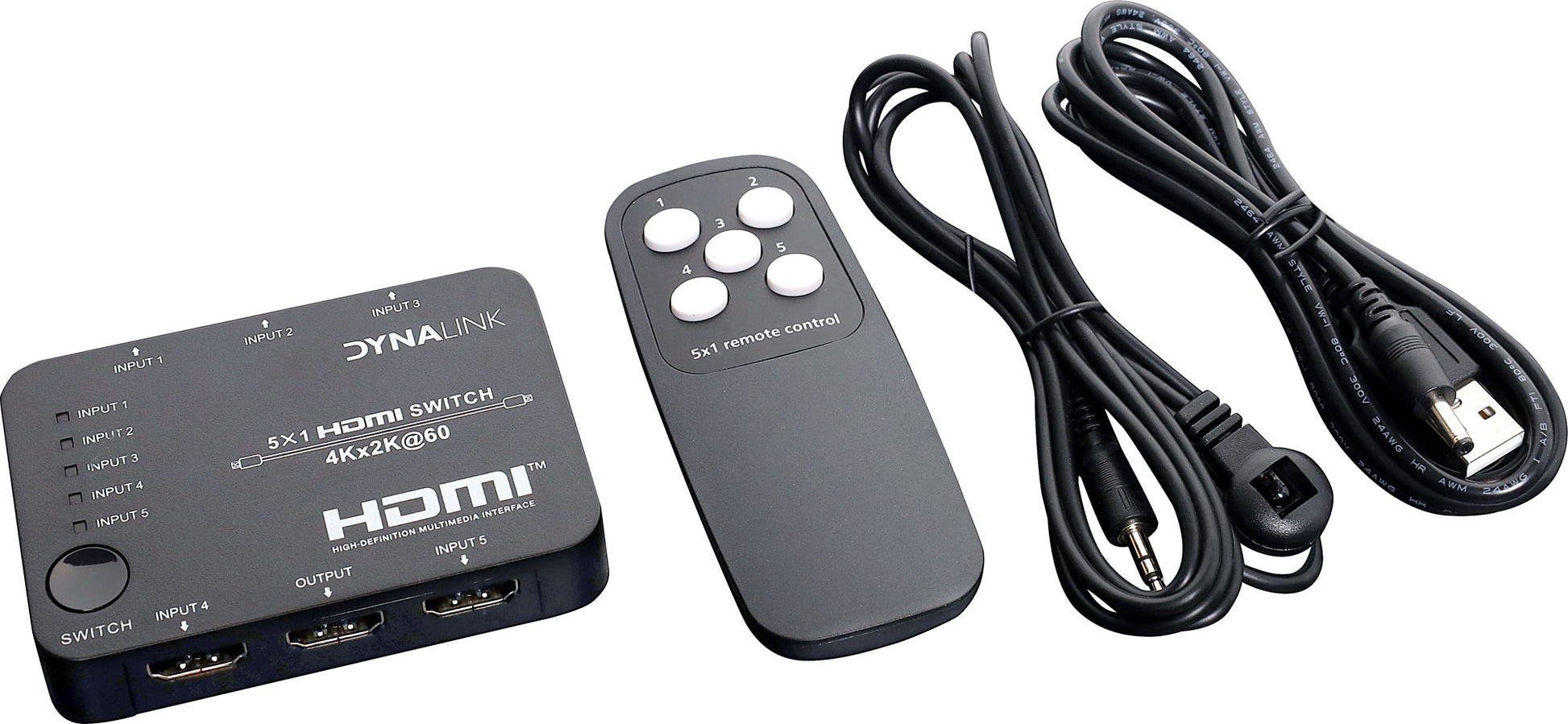

Package Contents
1× HDMI 5×1 Switcher
1× IR Receiver Cable
1× 5V USB Power Cable
1× Remote Control
1× User Manual
Features
- Supports 18Gbps video bandwidth
- HDR, HDR10, Dolby Vision and HLG are supported
- Supports video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
- Supports 3D video format
- Low power consumption
- IR remote control and panel button control
- Compact design for easy and flexible installation
Specifications
Technical
- HDCP Compliance: HDCP 2.2/1.x
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4k2k@60Hz
- Colour Depth: 8-bit (4K60Hz)
- Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
- HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
Connection
- Input Ports: 5×HDMI Type A (19-pin female), 1×IR IN [3.5mm Stereo Mini-jack]
- Output Ports: 1×HDMI Type A (19-pin female)
Mechanical
- Housing: Plastic Enclosure
- Silkscreen Colour: Black
- Weight: 60g
- Power Supply Input: 5V/1A
- Power Consumption: 1.5W
- Operation Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
KEEP OUT OF REACH OF CHILDREN
THIS PRODUCT CONTAINS A BUTTON BATTERY.
- If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
- Keep batteries out of reach of children.
- If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
