HDMI Switcher Dynalink 4 Way Usb / HDMI 4k KVM Switcher A3246
HDMI Switcher Dynalink 4 Way Usb / HDMI 4k KVM Switcher A3246
Regular price
$310.00
Regular price
Sale price
$310.00
Unit price
per
Taxes included.
Available in 4-8 Days
Couldn't load pickup availability
Enables fast, flexible PC switching for up to 4 connected computers. It features automatic wake-up from standby and can be controlled via the front panel, included IR remote control or keyboard hotkeys. Plug and play support for windows, macOS and linux.
Features
- Supports ultra-wide screen resolution up to 4K @ 60Hz, 2K @ 60Hz/144Hz
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Video fast switching and keyboard/mouse seamless switching
- Hot pluggable disconnect/connect of devices at any time
- Zero latency design
- Integrated USB 3.0 ports for sharing devices with data transfer up to 5Gbps.
Specifications
Technical
- HDMI Compliance HDMI: 2.0
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 18Gbps
- Audio Latency: No Latency
- Video Latency: No Latency
- Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
- IR Level: 5Vp-p
- IR Frequency: Fixed frequency 38KHz
- Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Colour Depth: 8/10/12bit
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- CEC: Supported
- ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Audio Formats
- HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
- L/R OUT: PCM 2.0CH
Connection

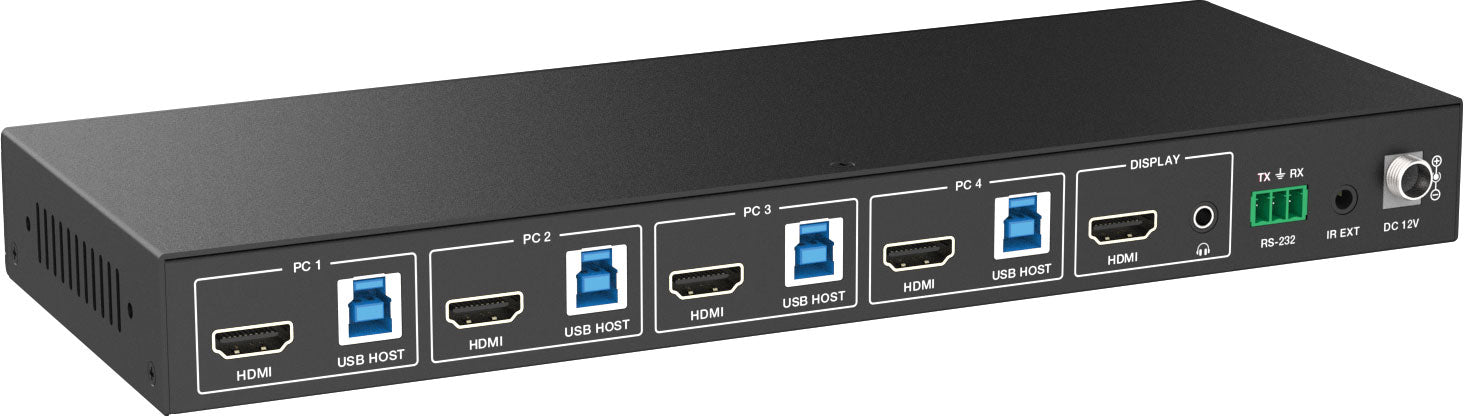

- Input ports 4 x HDMI input [Type A, 19-pin female]
- Output ports 1 x HDMI output [Type A, 19-pin female], 1 x L/R audio output [3.5mm Stereo Jack]
Control Ports
- 1 x RS-232 [3pin-3.81mm phoenix connector]
- 1 x IR EXT [3.5mm Stereo Jack]
- 4 x USB HOST [USB Type B]
- 4 x USB DEVICES [USB Type A]
Mechanical
- Housing: Metal Enclosure
- Colour: Black
- Dimensions: 270W x 100D x 30Hmm
- Weight: 756g
- Power Supply Input: AC 100 - 240V 50/60Hz
- Output: DC 12V/1A
- Power Consumption Typical value: 5.28W
- Standby mode: 0.72W
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 10% ~ 90% RH (non-condensing)
Recommended HDMI Cable
- Video Resolution: 4K60 4:4:4, HDMI Cable Length (HDMI IN / OUT) 5m
- Video Resolution: 1080P 4:4:4 HDMI Cable Length (HDMI IN / OUT) 10m
- The use of “Premium High Speed HDMI” cable is highly recommended.
