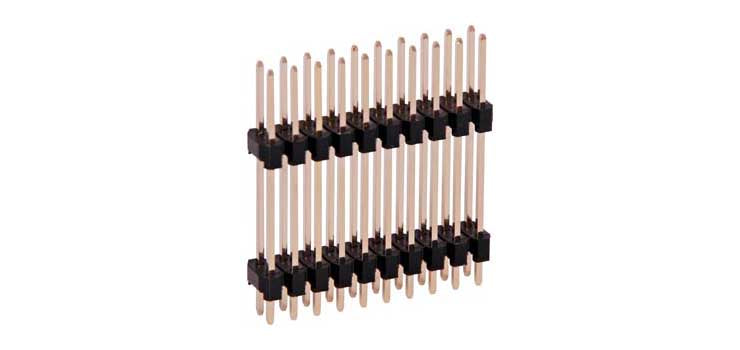

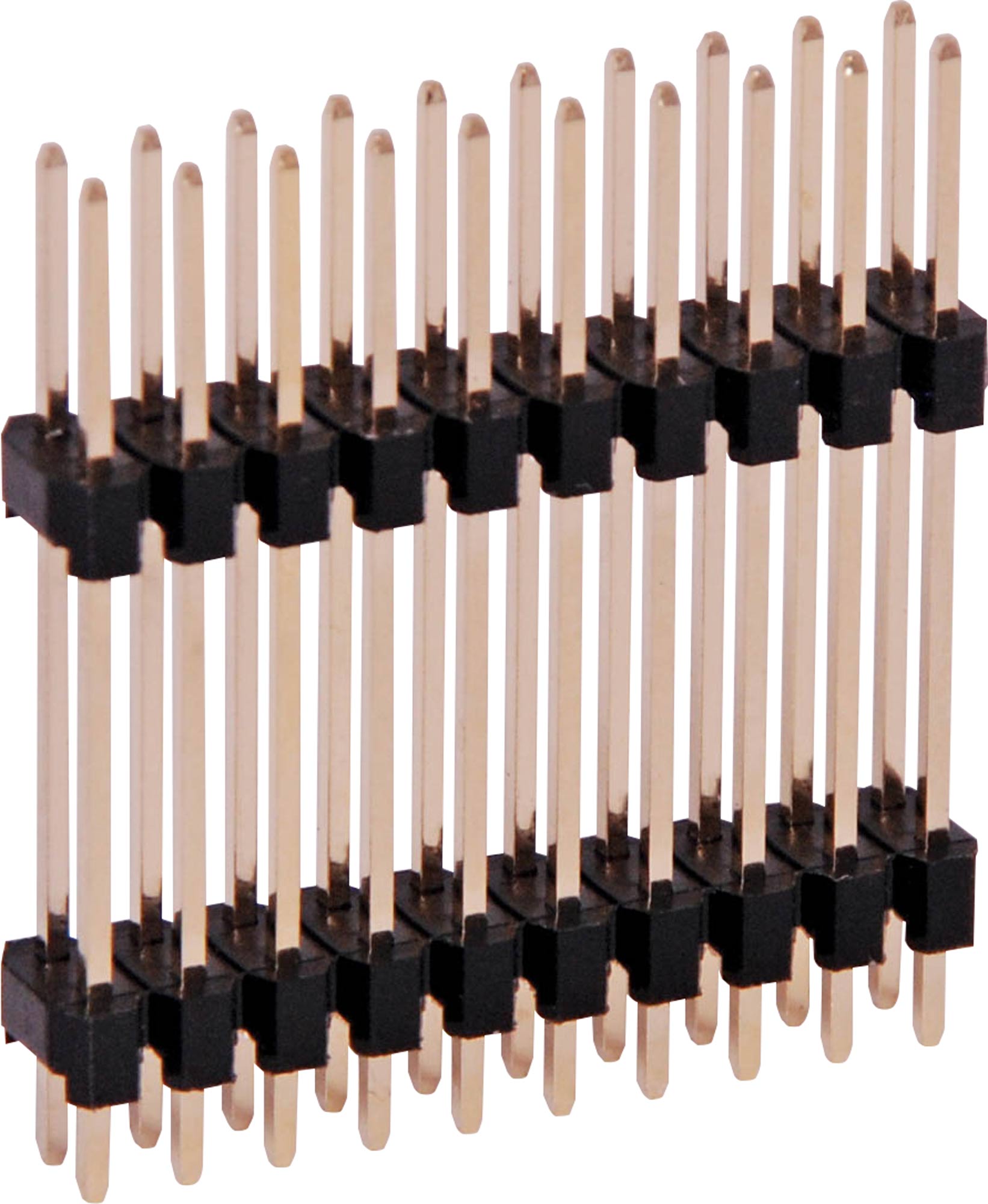

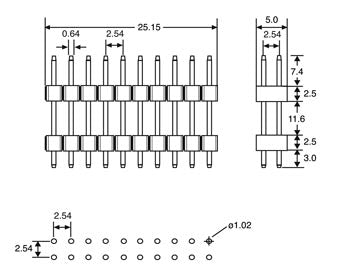

Single and dual row models available in straight or 90° pin types. Both have 2.54mm pin spacing. Gold Plated Contacts
Specifications
- Contact Resistance: 30M Ohm max @ 100mA DC
- Insulator Resistance: 1000M Ohm @ 250V DC
- Current Rating: 1 A
- Dielectric Voltage: 500V AC for 1 min.
- Operating Temperature: -50º to +105º C
