Heatsink 128 x 75mm Extra Heavy Duty H0580

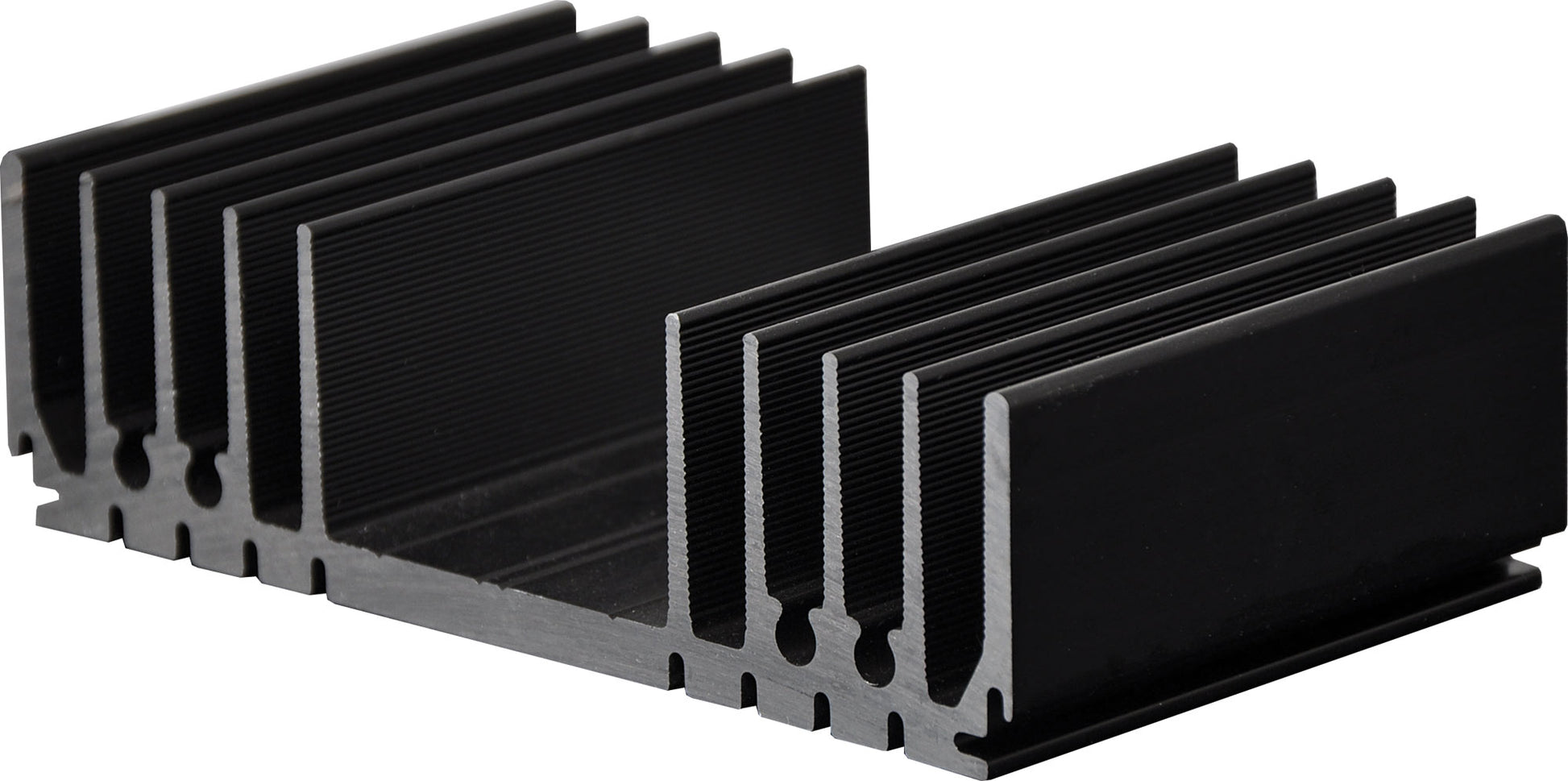

Black anodised. Incorporates a number of recessed “channels” on the flat side to enable self tapper screw fixing from chassis etc, without the need to drill holes.

Other recesses are provided to mate with 1mm sheet metal thus allowing the construction of complete box enclosures with integral heatsinks with just four flat pieces of metal or aluminium.

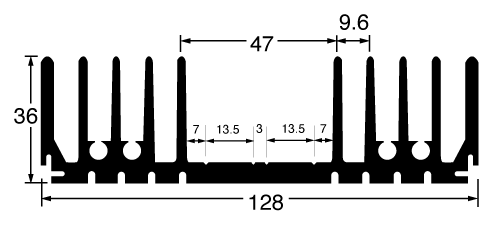

All 128W x 36Hmm.
