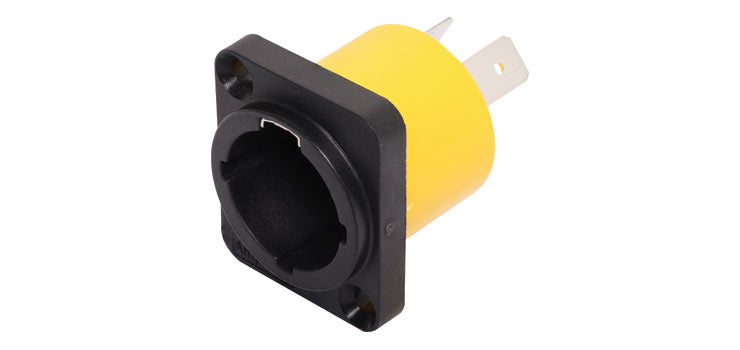

HPT-3-MDW IP65 Power In 16A Chassis Connector PA0779

Extra heavy duty weatherproof (IP65) Amphenol Power connector as used in commercial heavy duty power applications. Power In. HPT-3-MDW 16A 250V. SAA approved.

When connecting to mains power this must be installed by a licensed electrician. To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.

Current Rating: 16 A
Voltage Rating: 250 V
Mounting Angle: Straight
Mounting Style: Panel
Color: Black
Number of Ports: 1 Port
IP Rating: IP65
Series: HPT
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic (TP)
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 25 C
Termination Style: Solder
