IC Socket 14 Pin (0.3") DIL Machined Pin P0532

IC Socket 14 Pin (0.3") DIL Machined Pin P0532

$1.60
$1.60
Sale Sold out
Taxes included.

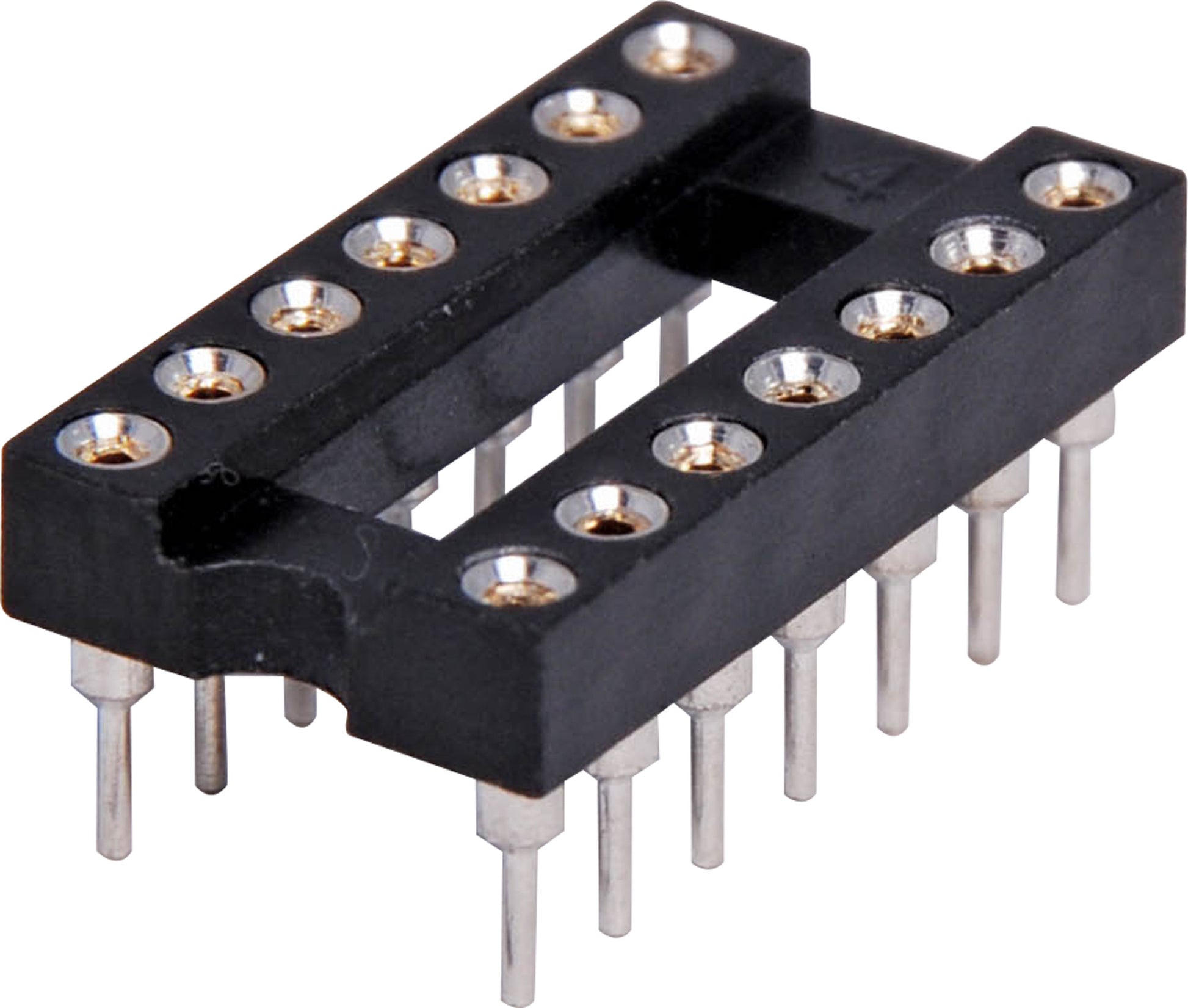

Quality Oupiin brand 8004 series, 14 pin DIL IC socket with machined pins and gold plated beryllium copper contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.

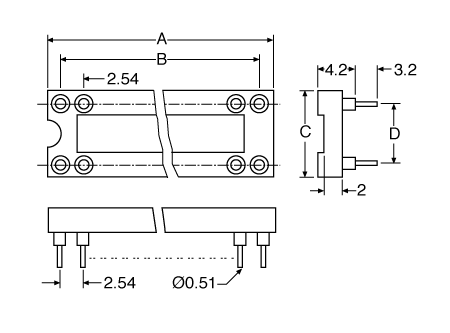

Dimensions:
A: 17.76
B: 15.25
C: 10.14
D: 7.62

Datasheet

Specifications

  • Contact Resistance: 30M Ohms Max @ DC 100mA
  • Insulation Resistance: 1000M Ohms Min @ DC 250V
  • Current Rating: 1 Amp
  • Dielectric Voltage: AC 500V for 1 Minute
  • Operating Temp: -55° to 105° C
  • Gold Plated Beryllium Copper Contacts
