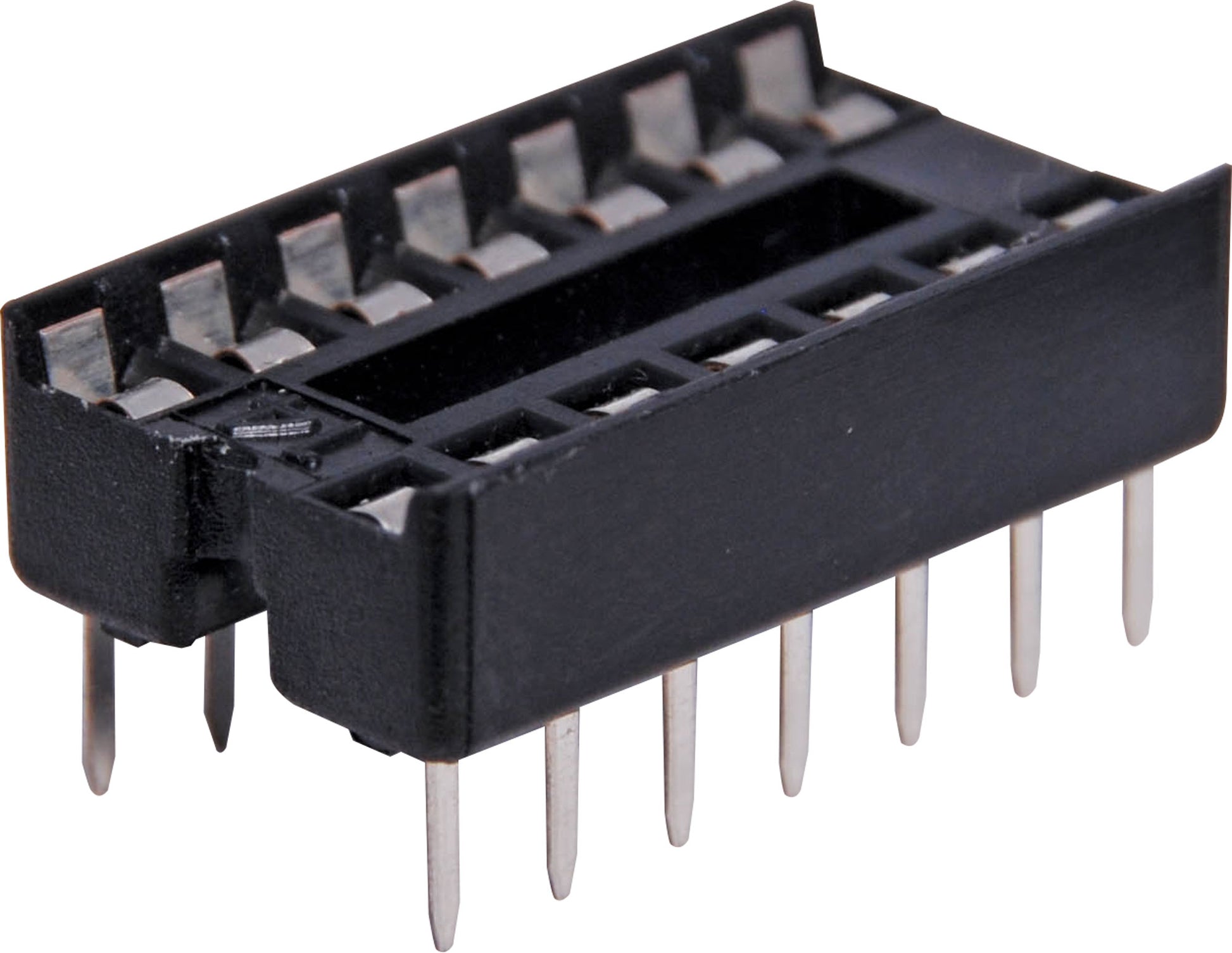

Quality Oupiin brand 8003 series, 14 pin DIL IC socket with dual wipe and tin plated phosphor bronce contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.

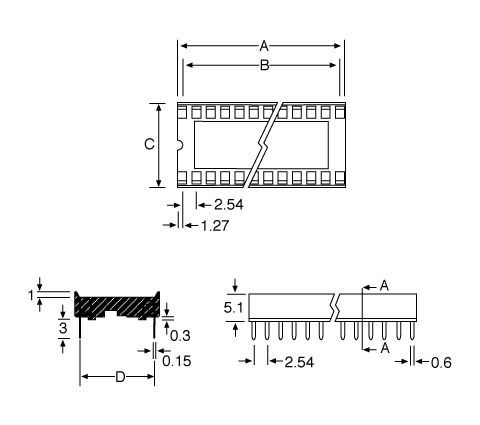

Dimensions:
A: 17.78
B: 15.24
C: 10.16
D: 7.62
Specifications
- Contact Resistance: 30M Ohms Max @ DC 100mA
- Insulation Resistance: 1000M Ohms Min @ DC 250V
- Current Rating: 1 Amp
- Dielectric Voltage: AC 500V for 1 Minute
- Operating Temp: -55° to 105° C
- Gold Plated Beryllium Copper Contacts
