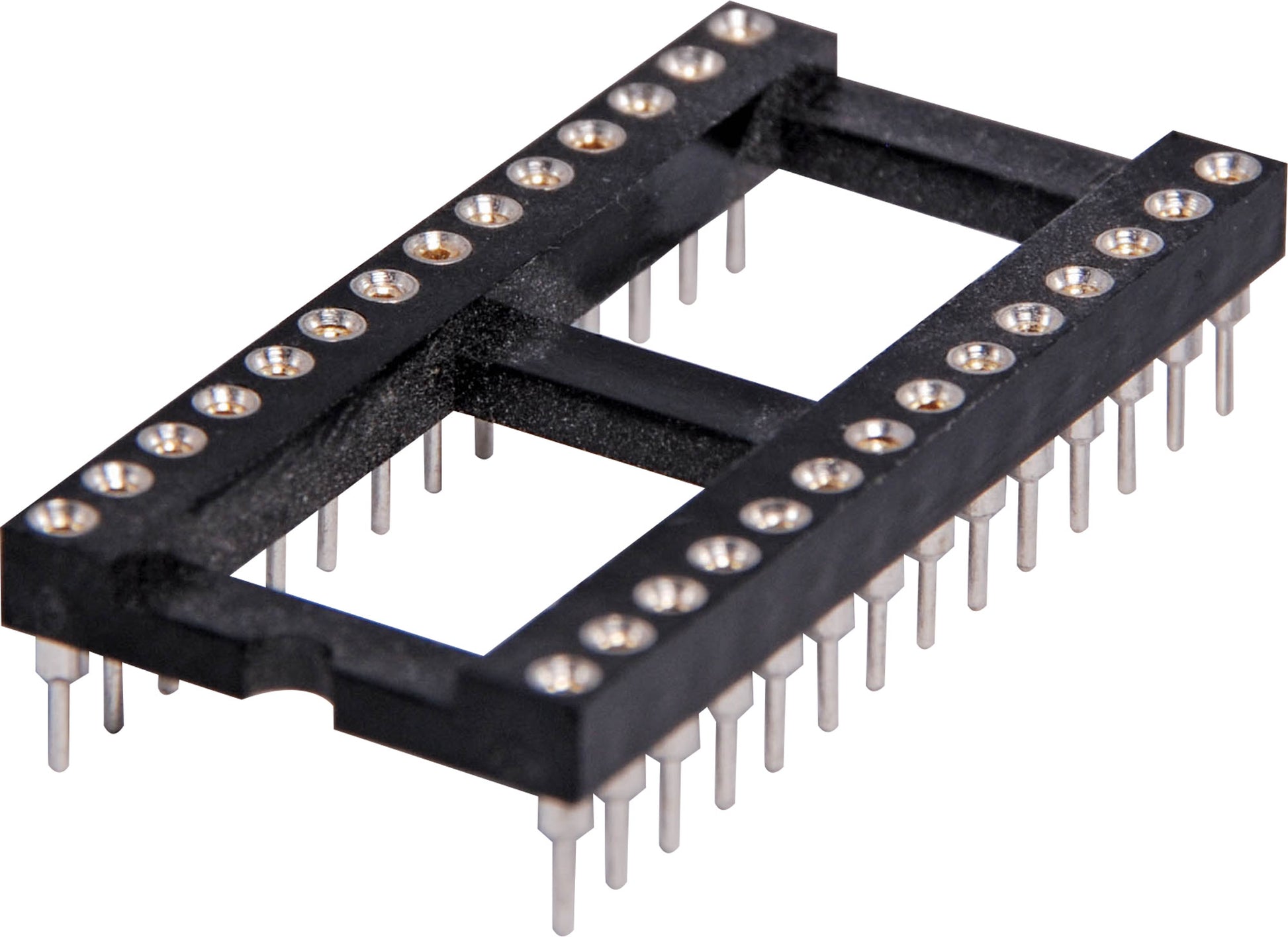

IC Socket 28 Pin (0.6") DIL Machined Pin P0542
IC Socket 28 Pin (0.6") DIL Machined Pin P0542
Regular price
$3.75
Regular price
Sale price
$3.75
Unit price
per
Taxes included.
Couldn't load pickup availability
Quality Oupiin brand 8004 series, 28 pin DIL IC socket with machined pins and gold plated beryllium copper contacts. Standard 2.54mm (0.1") pin spacing, 15.24 (0.6") pitch.

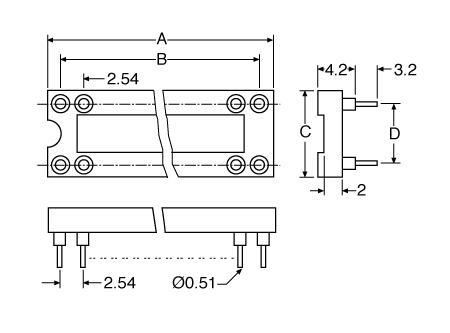

Dimensions:
A: 35.54
B: 33.03
C: 17.72
D: 15.24
Specifications
- Contact Resistance: 30M Ohms Max @ DC 100mA
- Insulation Resistance: 1000M Ohms Min @ DC 250V
- Current Rating: 1 Amp
- Dielectric Voltage: AC 500V for 1 Minute
- Operating Temp: -55° to 105° C
- Gold Plated Beryllium Copper Contacts
