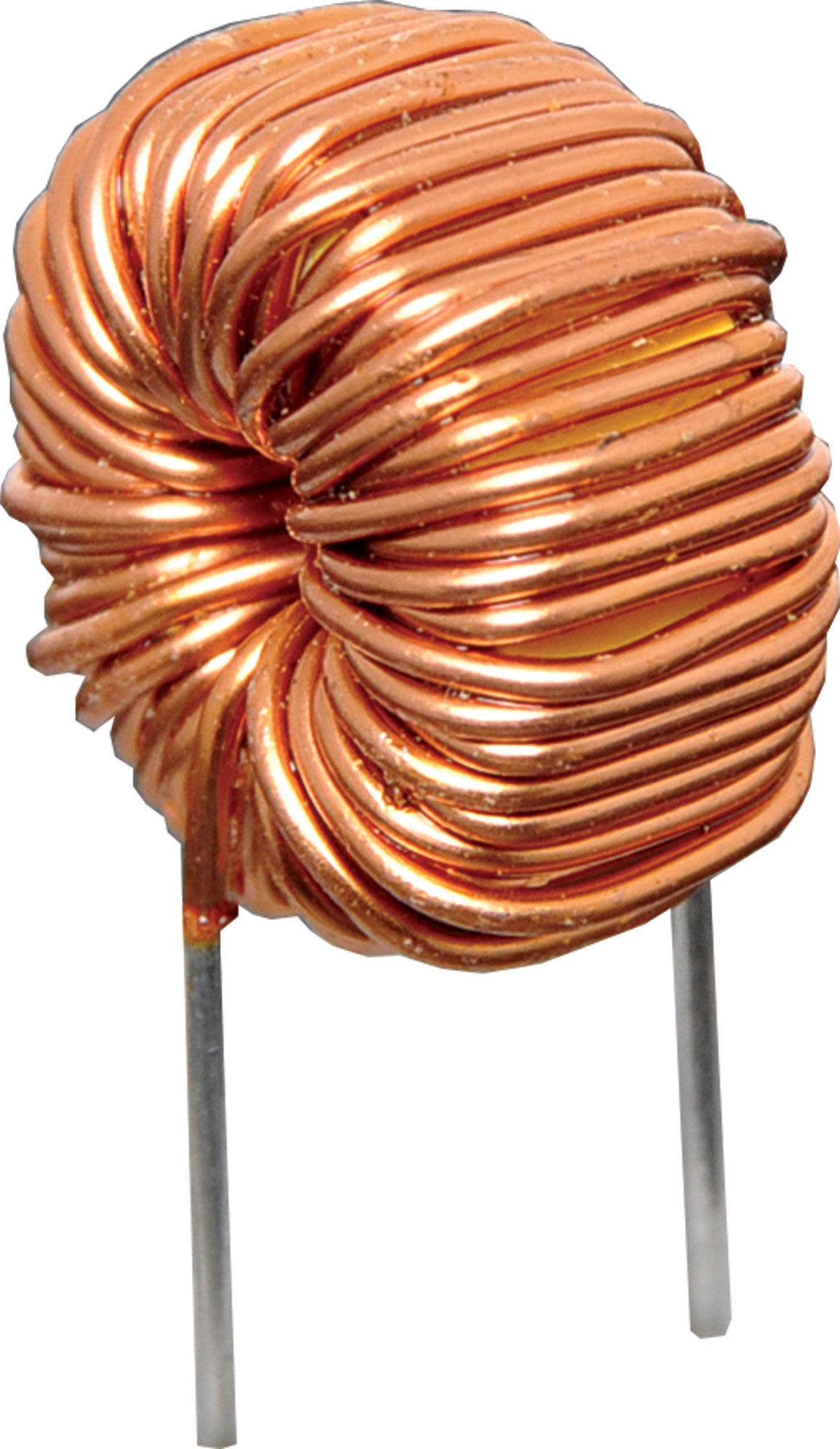

These high frequency chokes are suitable for use in switchmode power supplies, SCR and Triac controlled circuits and for EMI suppression. Rated frequency 50Hz to 100kHz
Dimensions
A: Coil Diameter = 17.5mm MAX 16.49mm typical
B: Leg height = 15.0 +/- 3.0mm, 15.2mm typical
D: Coil height = 12.0mm MAX, 10.28mm typical
E: Leg thickness 0.70 +- 0.05mm
Specifications
- Current Rating: 3A
- DC Resistance: 0.09
- Tolerance: ±20%
