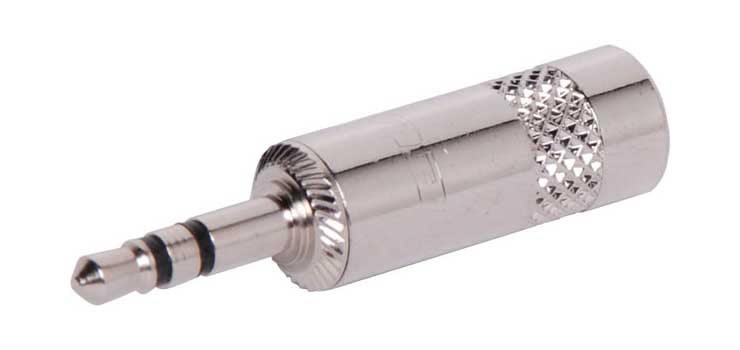

Jack Plug 3.5mm Stereo Metal NYS-231 P0023

High quality Neutrik line jack plug.
4mm cable entry. Sold individually.

Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector

Mechanical
Cable: O.D.4 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles

Material
Contact plating: Nickel
Contacts: Brass (CuZn39Pb3)
Shell: Zinc die cast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: SnCe plated, crimp type
Insulation: Thermoplastic
Environmental
Solderability: Complies with IEC 68-2-20
Temperature range-25 °C to +70 °C
