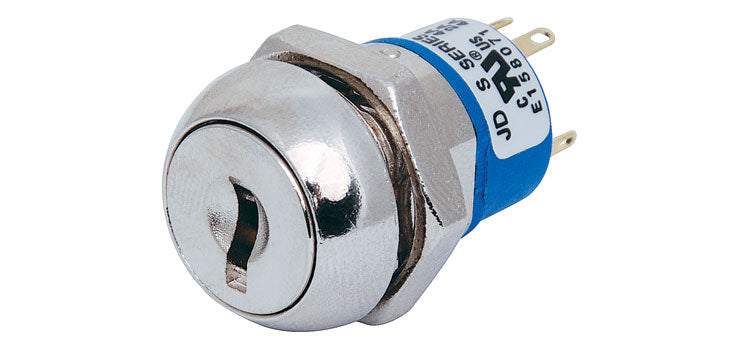

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.
Supplied with two keys
Connection Details
Pole 1 makes to:
Pos. 1 - 8, 1
Pos. 2 - 1, 3
Pole 2 makes to:
Pos. 1 - 4, 5
Pos. 2 - 5, 7
Specifications
Electrical
- Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
- Contact Resistance: Below 10 millionΩ
- Insulation Resistance: 1 Billion Ω Min.
- Dielectric Strength: 1000V RMS Min. sea level
- Electrical Life: 6000 make-and-break cycles at full load
- Lock Housing: Zinc Alloy die-casted nickel Plated.
- Cylinder: 4 Disc Tumblers Constructed,Zinc Alloy die-casted nickel Plated.
- Keys: Brass, Original Colour or Nickel Plated.
- Contacts: Super Hard Copper Alloy, Silver Plated.
- Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.
