Keyswitch 3 Position DP3T S2620
Keyswitch 3 Position DP3T S2620
Regular price
$14.50
Regular price
Sale price
$14.50
Unit price
per
Taxes included.
Couldn't load pickup availability

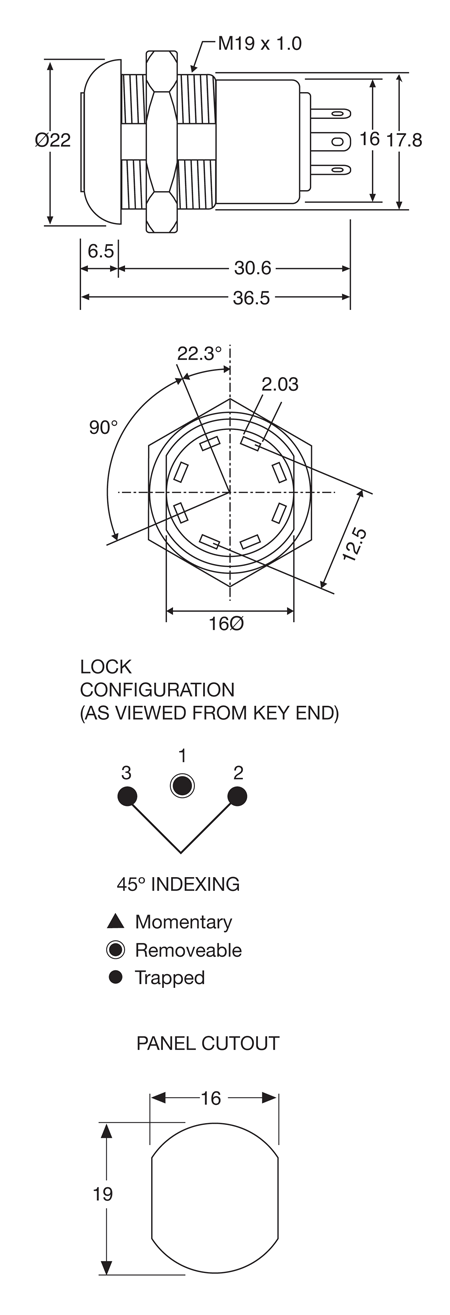

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.
Note: Key removable in centre position. Non-spring return (ie. Alternate action).
Supplied with two keys
Connection Details
Pole 1 makes to:
Pos.1 - 3, 4
Pos.2 - 4, 5
Pos.3 - 5, 6
Pole 2 makes to:
Pos.1 - 7, 8
Pos.2 - 8, 1
Pos.3 - 1, 2
Specifications
Electrical
- Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
- Contact Resistance: Below 10 millionΩ
- Insulation Resistance: 1 Billion Ω Min.
- Dielectric Strength: 1000V RMS Min. sea level
- Electrical Life: 6000 make-and-break cycles at full load
Materials
- Lock Housing: Zinc Alloy die-casted nickel Plated.
- Cylinder: 4 Disc Tumblers Constructed,Zinc Alloy die-casted nickel Plated.
- Keys: Brass, Original Colour or Nickel Plated.
- Contacts: Super Hard Copper Alloy, Silver Plated.
- Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.
