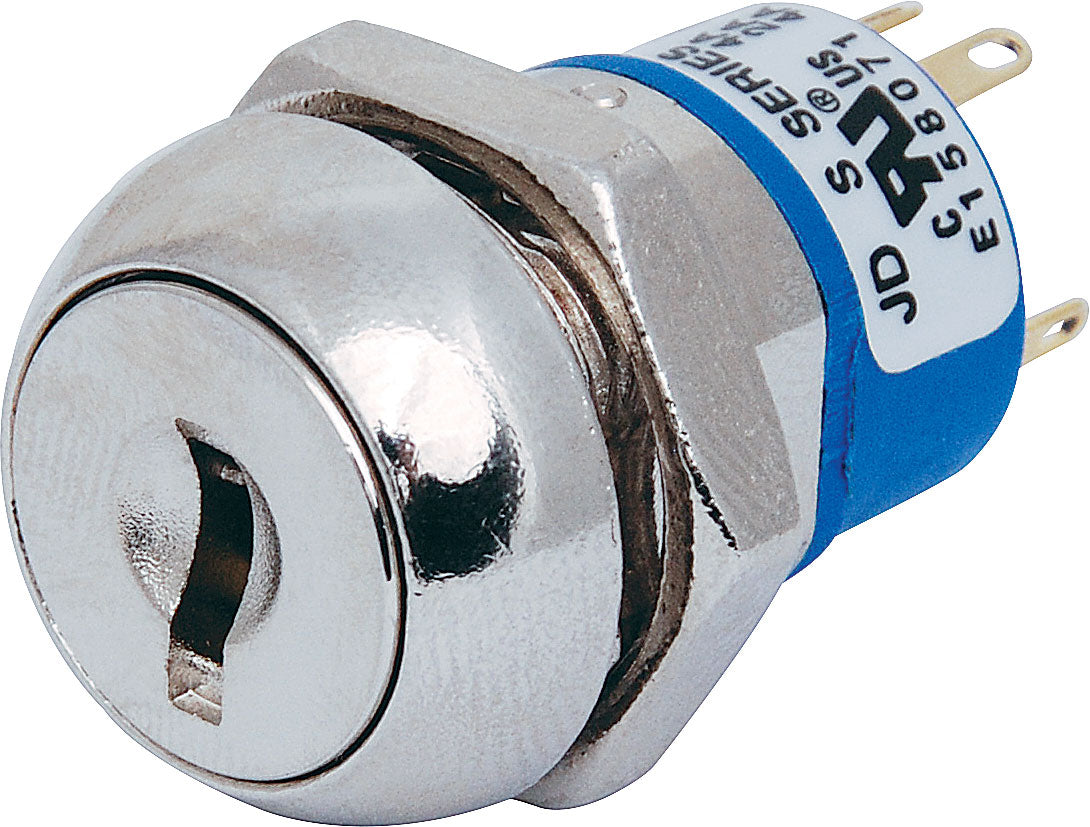

Keyswitch 4 Position DP3T 606 Key S2654

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

Note: Key removable in centre position. Non-spring return (ie. Alternate action).

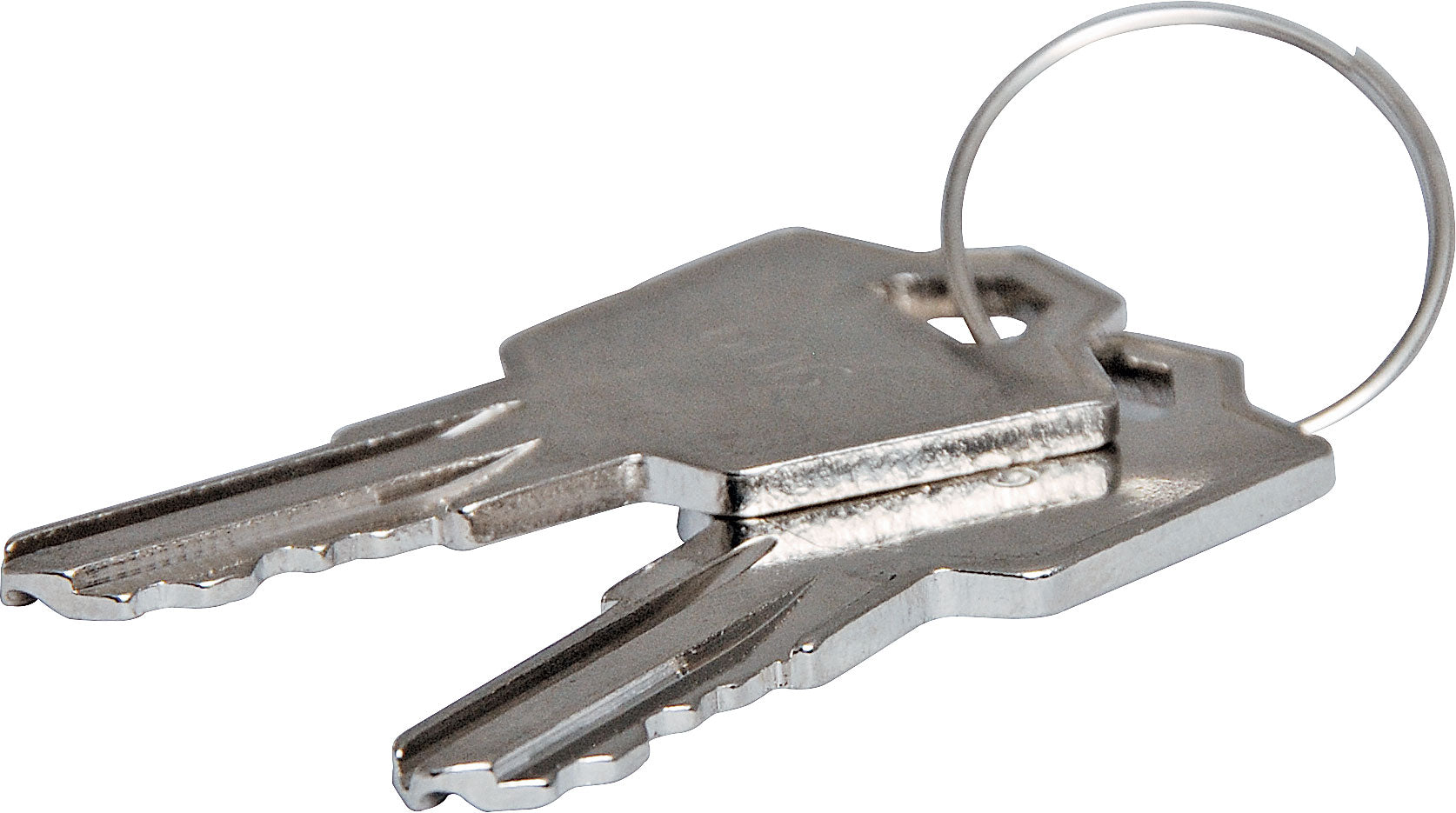

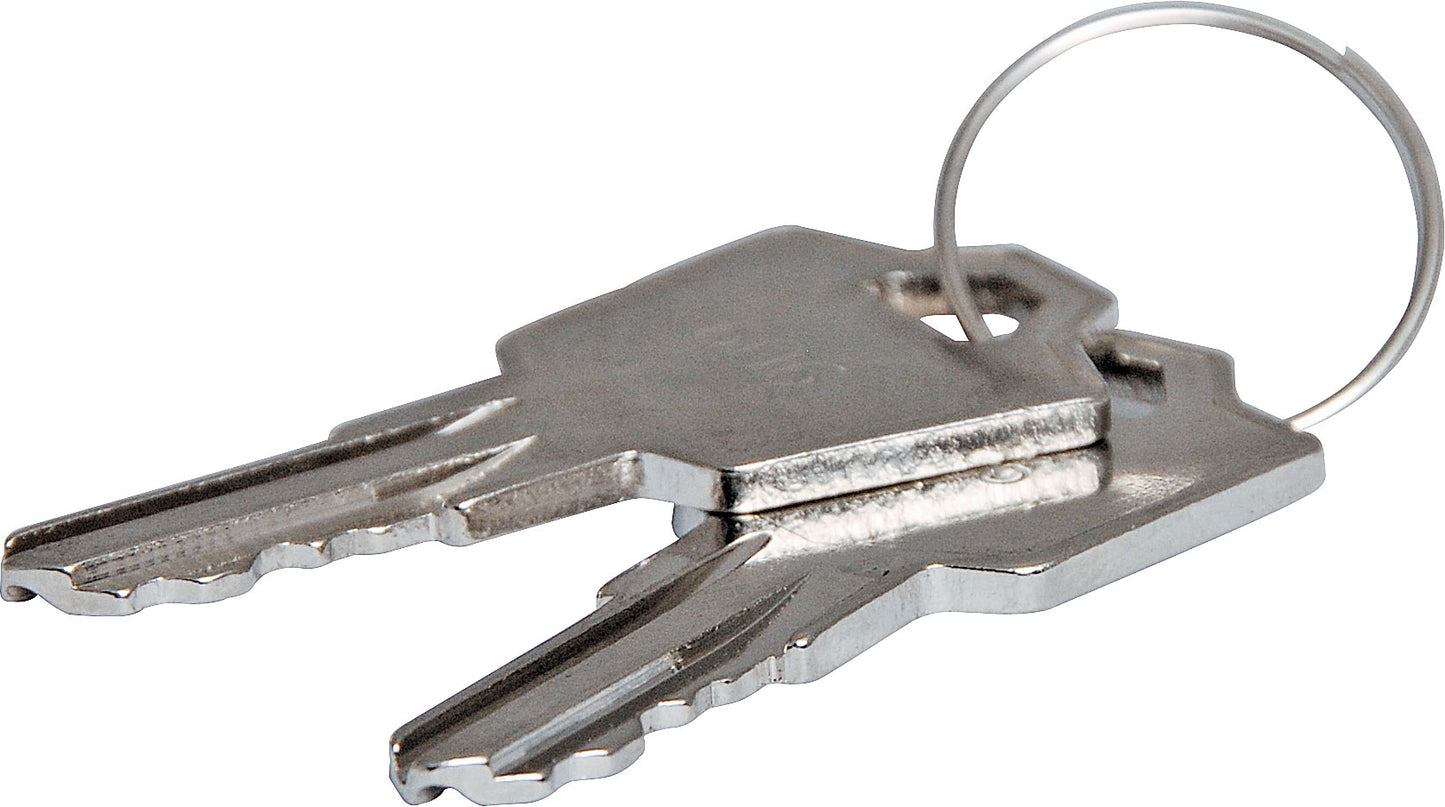

Supplied with two keys

Electrical
Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
Contact Resistance: Below 10 millionΩ
Insulation Resistance: 1 Billion Ω Min.
Dielectric Strength: 1000V RMS Min. sea level
Electrical Life: 6000 make-and-break cycles at full load

Materials
Lock Housing: Zinc Alloy die-casted nickel Plated.
Cylinder: 4 Disc Tumblers Constructed,Zinc Alloy die-casted nickel Plated.
Keys: Brass, Original Colour or Nickel Plated.
Contacts: Super Hard Copper Alloy, Silver Plated.
Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.
