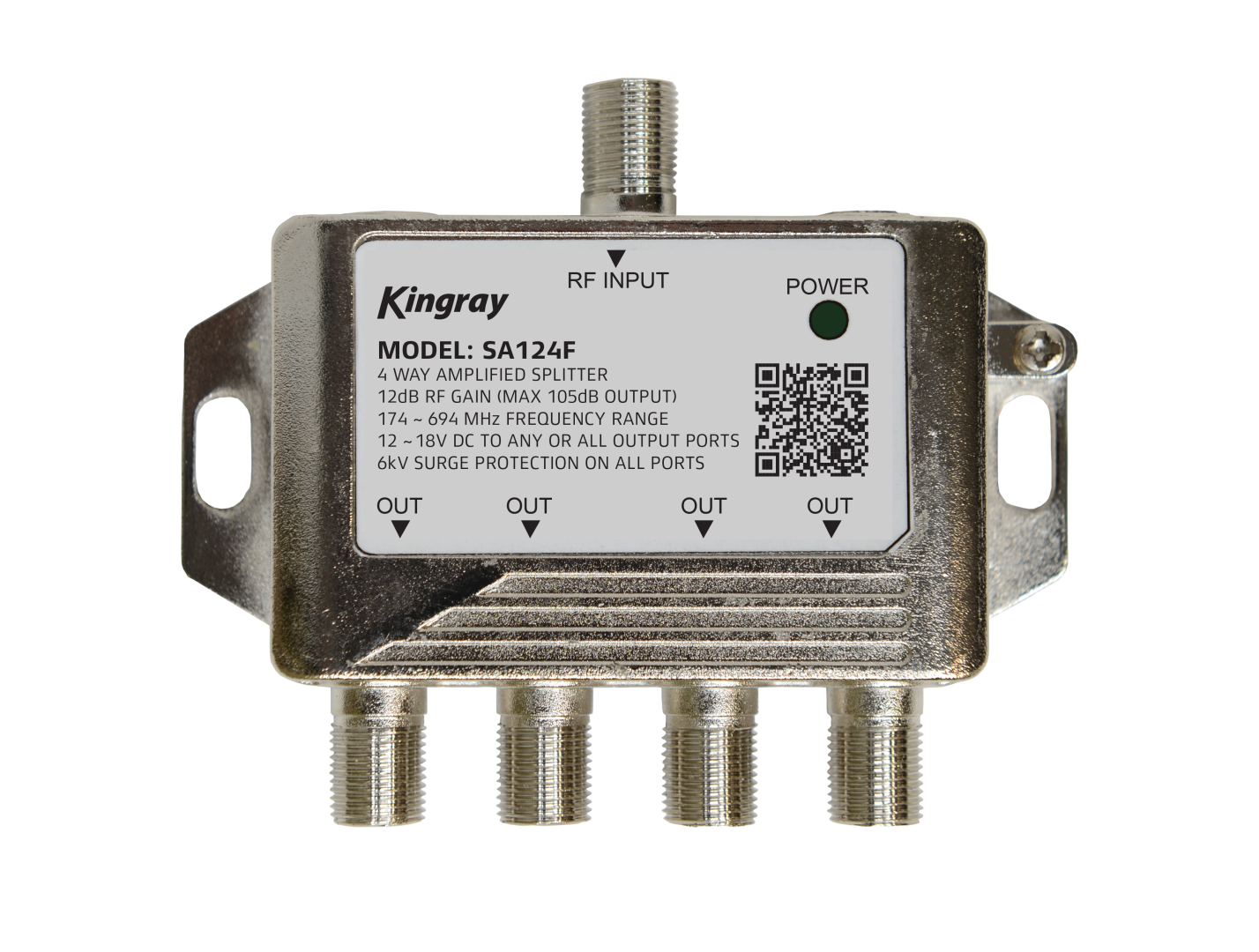

KINGRAY Amplified 4 Way TV Signal Splitter Including PSK06 Power Supply SA124FDP

SKU: 931943316132


TV Signal Amplified Splitter with 12dB Gain, Single Input with 4 Outputs, Frequency Range of 174 ~ 694 MHz and is powered remotely via supplied power supply.The Kingray range of amplified splitters have been designed to have superior performance for today’s digital television signals.

The characteristics of the components elected provide a very low noise figure, high output level and high return loss.  The SA124F is a VHF/UHF splitter amplifier with a single input and four outputs, designed to be used when you have enough signal for one outlet but insufficient signal for two or more outlets. it is supplied with 1 adaptor & a power supply to remotely power the amplified splitter.

Key Features

  • Frequency Range 174 - 694 MHz
  • 12dB Maximum Gain
  • Single Input
  • Four Outputs
  • 4G/LTE Filtering
  • High Output Figure of 100dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 100mA
  • PSK06 Power Supply is included

In the box

  • SA124F
  • Adaptor x 1
  • PSK06 Power Supply
