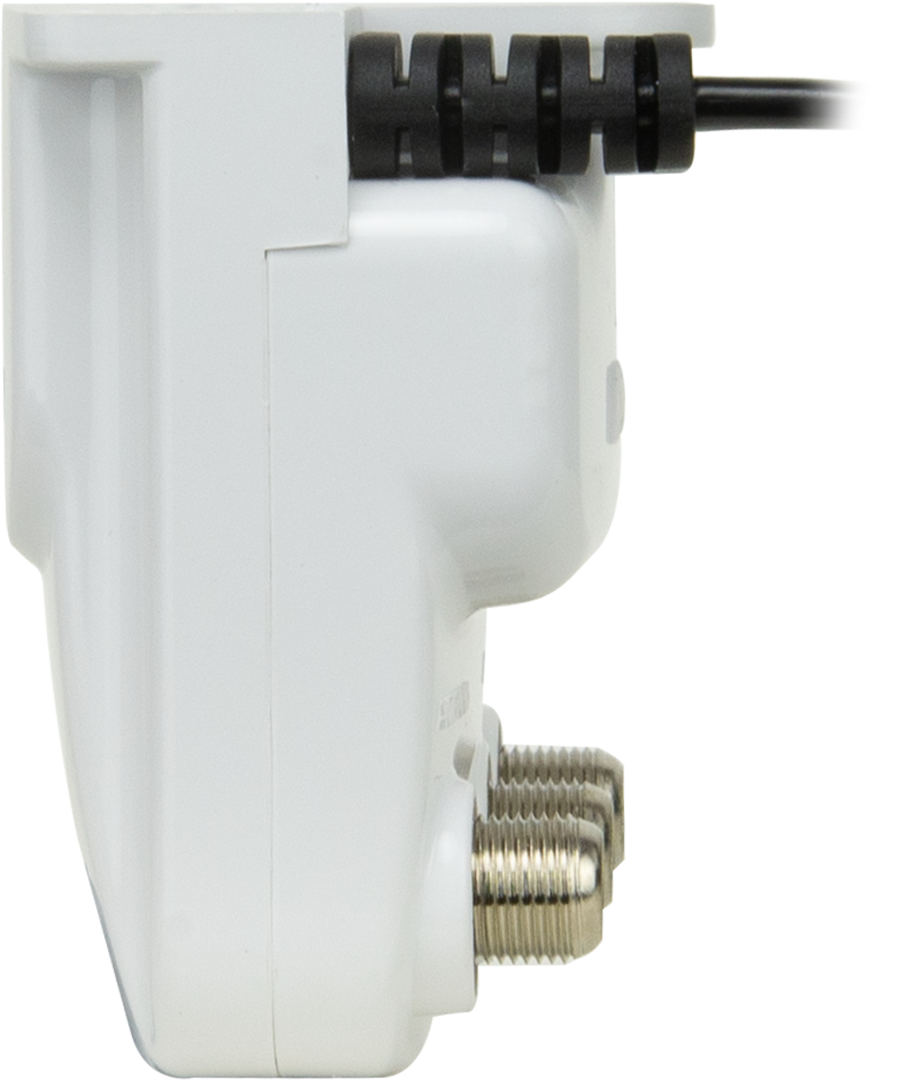

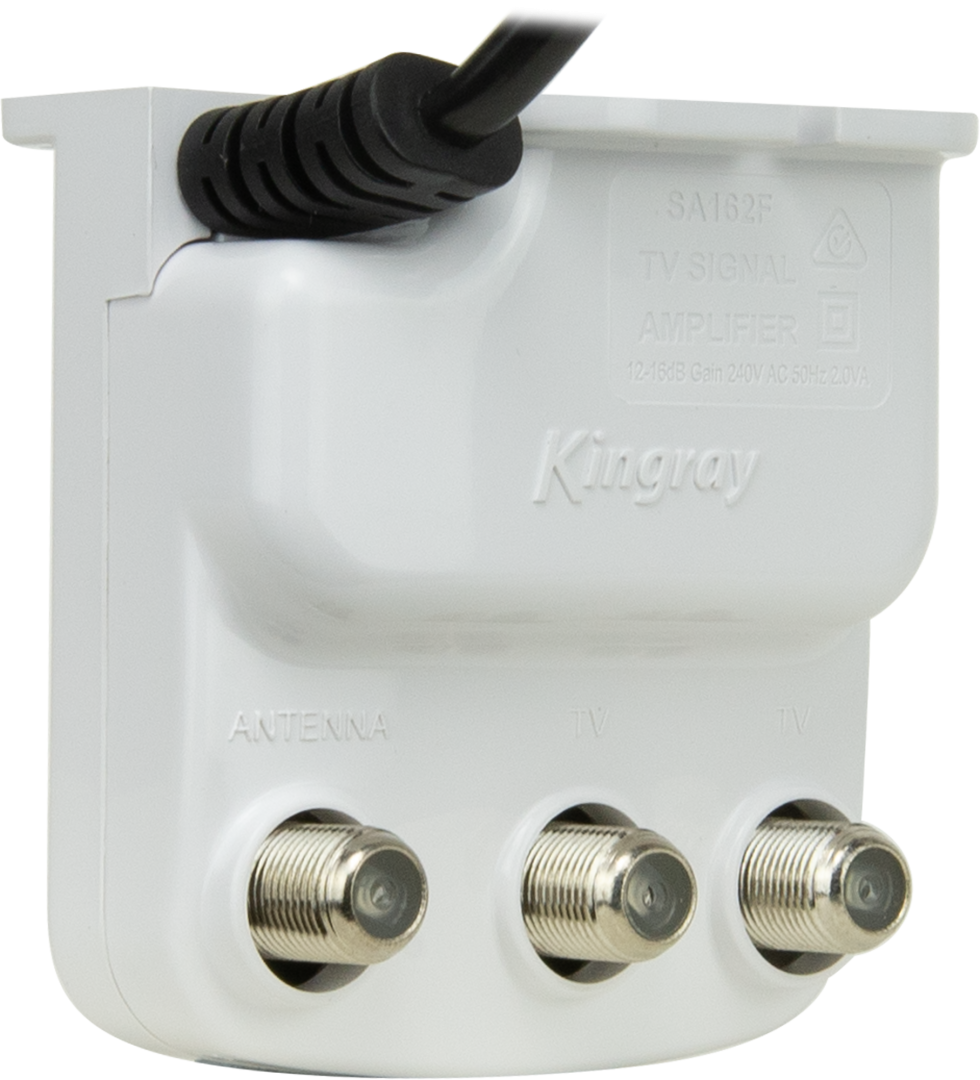

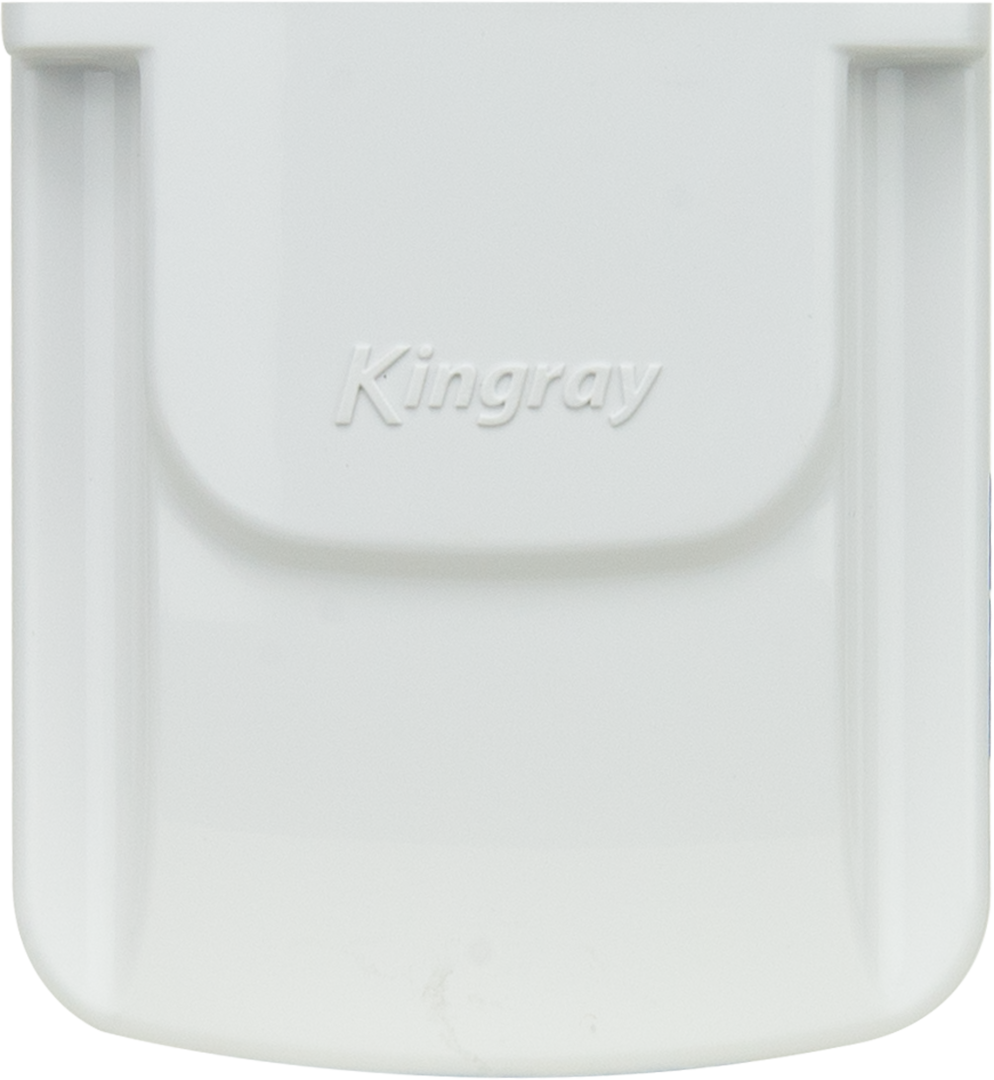

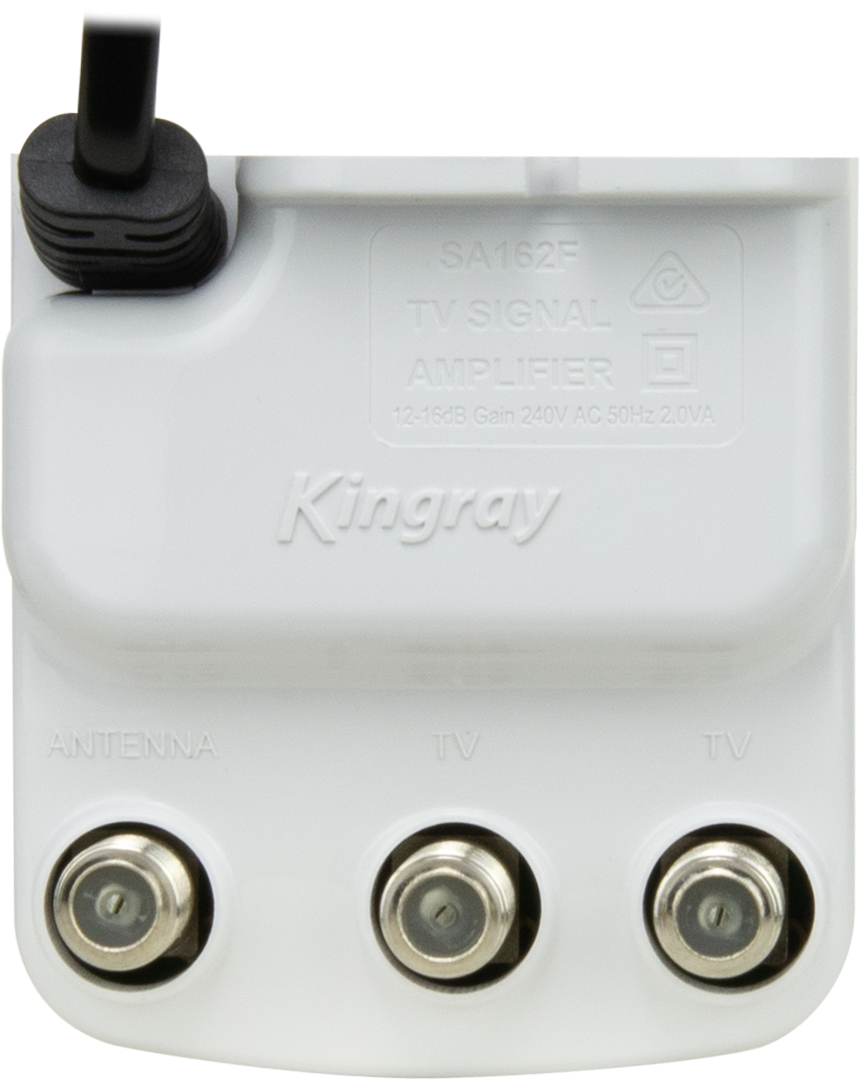

Kingray Tv Splitter Amplifier 2x16db SA162F

The Kingray range of amplified splitters have been designed to have superior performance for today’s digital television signals. The characteristics of the components elected provide a very low noise figure, high output level and high return loss.  The SA162F is a VHF/UHF amplifier with a single input and two outputs, designed to be used when you have enough signal for one outlet but insufficient signal for two outlets. It is fitted with F connections, is supplied with F to PAL adaptors and is mains powered.

Instraction Manual

Product Details

Key Features

• Frequency Range 44-470 MHz & 470-860 MHz
• 16dB Maximum Gain
• Single Input
• Two Outputs
• F to Belling Lee (PAL) Adapters Included
• High Output Figure of 100dB IMR3 (DIN45004B)
• <4dB Noise Figure
• Connectors: F-Type
• Mains Powered 230-240V AC

In the box

• SA162F

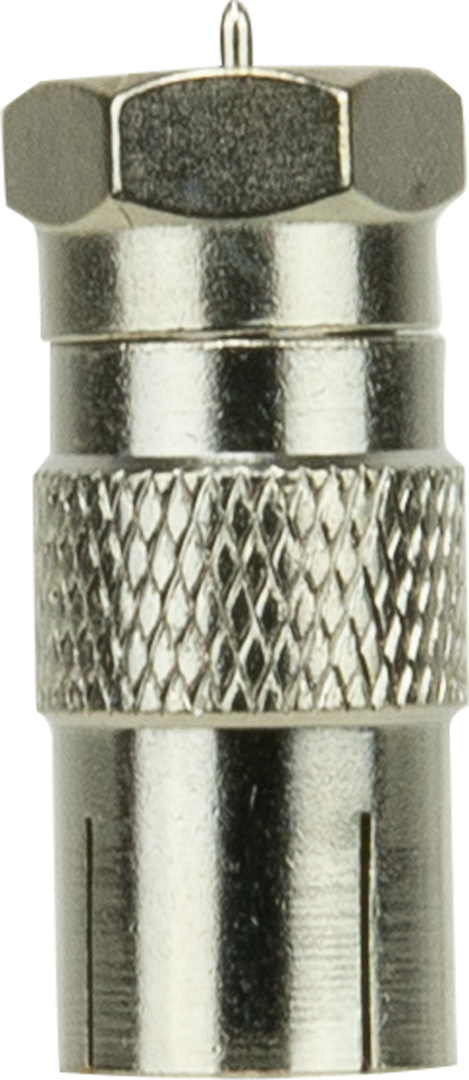

• F to PAL Adapters x 3
• Installation Manual
