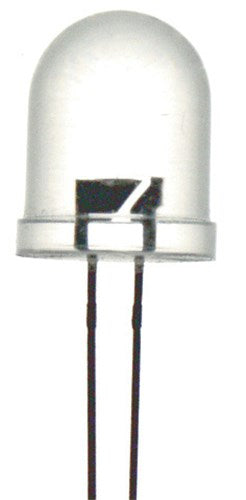

LED 10mm 19600mcd Round Clear Red ZD0202

Name: LED 10mm 19600mcd Round Clear Red ZD0202
Brand: Electus
SKU: 9319236890004
Price: 2.95 AUD
Availability: InStock

$2.95

Sale Sold out

Taxes included.

Red 10mm LED 9600mcd Round Clear

Diameter : 10mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 1cm

Packaged Width : 1cm

Packaged Height : 4cm

LED Type : 10mm Standard LED

Illumination Type : Single Colour

Light Colour : Red

Light Wavelength : 625nm

Lens Type : waterclear

Viewing Angle : 30°

Intensity : 4500mcd

V_{f (typ)} - Typical Forward Voltage : 2V

I_{f (typ)} - Typical Forward Current : 20mA

I_{f (max)} - Maximum Forward Current : 50mA

Resistor for 5VDC : 150Ω

Resistor for 9VDC : 360Ω

Resistor for 12VDC : 510Ω
