LED 10mm 5000mcd Round Clear White ZD0220

Name: LED 10mm 5000mcd Round Clear White ZD0220
Brand: Electus
SKU: 9319236890196
Price: 2.95 AUD
Availability: InStock

$2.95

Sale Sold out

Taxes included.

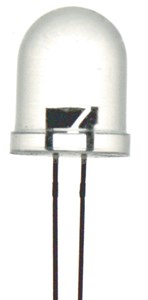

White 10mm LED 5000mcd Round Clear

Diameter : 10mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 4cm

Packaged Width : 1cm

Packaged Height : 1cm

LED Type : 10mm Standard LED

Illumination Type : Single Colour

Light Colour : White

Light Wavelength : 0.25nm

Lens Type : waterclear

Viewing Angle : 30°

Intensity : 5000mcd

V_{f (typ)} - Typical Forward Voltage : 3.2V

I_{f (typ)} - Typical Forward Current : 20mA

I_{f (max)} - Maximum Forward Current : 30mA

Resistor for 5VDC : 91Ω

Resistor for 9VDC : 300Ω

Resistor for 12VDC : 430Ω
