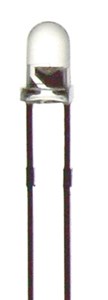

LED 3mm 1000mcd Blue ZD0130

Name: LED 3mm 1000mcd Blue ZD0130
Brand: Electus
SKU: 20002053
Price: 1.95 AUD
Availability: InStock

$1.95

Sale Sold out

Taxes included.

Blue 3mm LED 1500mCd Round Clear

Diameter : 3mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 3.5cm

Packaged Width : 0.4cm

Packaged Height : 0.4cm

LED Type : 3mm Standard LED

Illumination Type : Single Colour

Light Colour : Blue

Light Wavelength : 465nm

Lens Type : waterclear

Viewing Angle : 15°

Intensity : 1500mcd

V_{f (typ)} - Typical Forward Voltage : 3.3V

I_{f (typ)} - Typical Forward Current : 20mA

I_{f (max)} - Maximum Forward Current : 20mA

Resistor for 5VDC : 82Ω

Resistor for 9VDC : 300Ω

Resistor for 12VDC : 430Ω
