LED 3mm 10500mcd Round Clear Blue ZD0134
LED 3mm 10500mcd Round Clear Blue ZD0134
Regular price
$2.50
Regular price
Sale price
$2.50
Unit price
per
Taxes included.
Couldn't load pickup availability

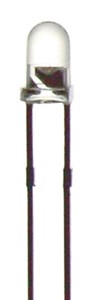

Blue LED 3mm Clear 10500MCD
Specifications
| Diameter : 3mm |
| Packaged Volume : 0l |
| Packaged Weight : 0kg |
| Packaged Length : 0.5cm |
| Packaged Width : 0.5cm |
| Packaged Height : 3.5cm |
| LED Type : 3mm Standard LED |
| Illumination Type : Single Colour |
| Light Colour : Blue |
| Light Wavelength : 468nm, 468nm |
| Lens Type : waterclear |
| Viewing Angle : 20° |
| Intensity : 10500mcd |
| Vf (typ) - Typical Forward Voltage : 3.2V |
| If (typ) - Typical Forward Current : 30mA |
| If (max) - Maximum Forward Current : 100mA |
| Resistor for 5VDC : 56Ω |
| Resistor for 9VDC : 180Ω |
| Resistor for 12VDC : 270Ω |
| active mount type : Through Hole |
| active connector type : Solder Legs |
| component package : radial |
| active number of legs : 2 count |
