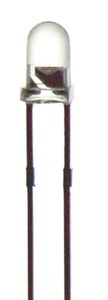

Red 3mm LED round clear.
Specifications
| Diameter : 3mm |
| Packaged Volume : 0l |
| Packaged Weight : 0kg |
| Packaged Length : 3.5cm |
| Packaged Width : 0.35cm |
| Packaged Height : 0.35cm |
| LED Type : 3mm Standard LED |
| Illumination Type : Single Colour |
| Light Colour : Red |
| Light Wavelength : 660nm |
| Lens Type : waterclear |
| Viewing Angle : 15° |
| Intensity : 1500mcd |
| Vf (typ) - Typical Forward Voltage : 1.8V |
| If (typ) - Typical Forward Current : 20mA |
| If (max) - Maximum Forward Current : 30mA |
| Resistor for 5VDC : 160Ω |
| Resistor for 9VDC : 360Ω |
| Resistor for 12VDC : 510Ω |
| active connector type : Solder Legs |
