LED 3mm 7200mcd Clear Lens Red ZD0106

Name: LED 3mm 7200mcd Clear Lens Red ZD0106
Brand: Electus
SKU: 9319236889695
Price: 1.95 AUD
Availability: InStock

$1.95

Sale Sold out

Taxes included.

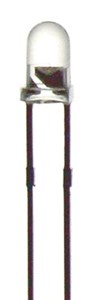

Red 3mm LED round clear.

Diameter : 3mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 3.5cm

Packaged Width : 0.4cm

Packaged Height : 0.4cm

LED Type : 3mm Standard LED

Illumination Type : Single Colour

Light Colour : Red

Light Wavelength : 625nm

Lens Type : waterclear

Viewing Angle : 15°

Intensity : 7200mcd

V_{f (typ)} - Typical Forward Voltage : 2.1V

I_{f (typ)} - Typical Forward Current : 20mA

I_{f (max)} - Maximum Forward Current : 30mA

Resistor for 5VDC : 150Ω

Resistor for 9VDC : 360Ω

Resistor for 12VDC : 510Ω

active connector type : Solder Legs
