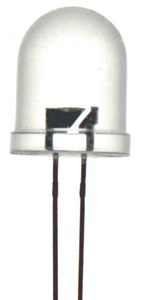

LED 5mm Water Clear 35000mcd Red ZD1790

Name: LED 5mm Water Clear 35000mcd Red ZD1790
Brand: Electus
SKU: 9319236883815
Price: 2.95 AUD
Availability: InStock

$2.95

Sale Sold out

Taxes included.

LED 5mm Red Waterclear 35000mcd

Specifications

Diameter : 5mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 3.5cm

Packaged Width : 0.5cm

Packaged Height : 0.5cm

LED Type : 5mm Standard LED

Illumination Type : Single Colour

Light Colour : Red

Light Wavelength : 616nm

Lens Type : waterclear

Viewing Angle : 8°

Intensity : 35000mcd

V_{f (typ)} - Typical Forward Voltage : 2.1V

I_{f (typ)} - Typical Forward Current : 50mA

I_{f (max)} - Maximum Forward Current : 50mA

Resistor for 5VDC : 62Ω

Resistor for 9VDC : 150Ω

Resistor for 12VDC : 200Ω
