LED Photodiode Infrared Rx ZD1947
LED Photodiode Infrared Rx ZD1947
Regular price
$4.95
Regular price
Sale price
$4.95
Unit price
per
Taxes included.
Couldn't load pickup availability

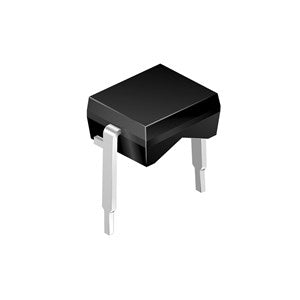

Small square device.
Features:
- Wavelength of max. sens: 950nm
- Half angle: +/- 60°
- Open-circuit voltage: 330mV
- Rise and fall time: 20ns @ 5V
- Cathode marking: flag on leg
Features:
- Wavelength of max. sens: 950nm
- Half angle: +/- 60°
- Open-circuit voltage: 330mV
- Rise and fall time: 20ns @ 5V
- Cathode marking: flag on leg
Specifications
| Length : 5.4mm |
| Width : 4mm |
| Depth : 2mm |
| Packaged Volume : 0l |
| Packaged Weight : 0kg |
| Packaged Length : 0.5cm |
| Packaged Width : 0.5cm |
| Packaged Height : 0.5cm |
| Reverse Voltage : 20V |
| Forward Voltage : 1.3 |
| Spectral Sensitivity : 34 |
| Spectral Range of Sensitivity : 800-1100 |
| Dark Current : 2 |
| Short-circuit Current : 17µA |
| Optocoupler Capacitance : 48pF |
