LEDs 35mcd 3mm Red Z0702

LEDs 35mcd 3mm Red Z0702

$0.50
$0.50
Sale Sold out
Taxes included.

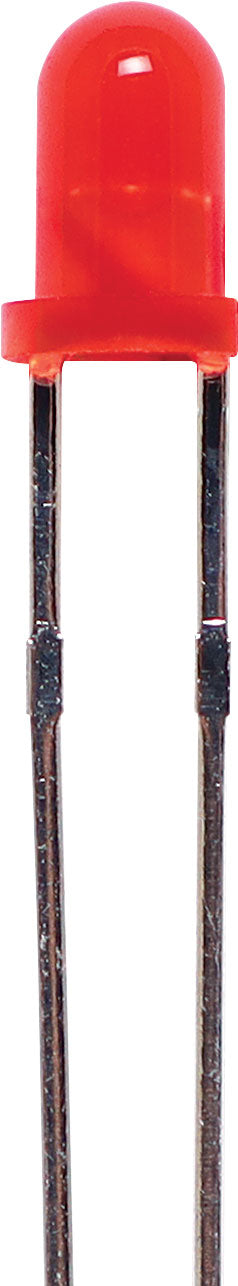

3mm Red LED

General

Features

  • High Efficiency
  • Versatile PCB/Panel Mounting Options
  • Low Current Requirement

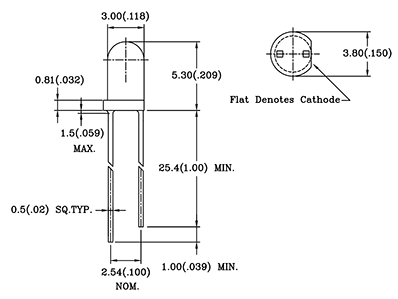

  • 3mm Diameter Package
  • Low Power Consumption
  • ROHS Compliant

Specifications

General

  • Chip Material: GaAsP/GaP
  • Emitted Colour: Red
  • Lens Appearance: Red, Diffused

Maximum Ratings

  • Power Dissipation: 80mW
  • Forward Current: 30mA
  • Peak Forward Current: 150mA
  • Reverse Voltage: 5V
  • Operating Temperature: -40°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C

Electrical & Optical Characteristics

  • Forward Voltage: 2.1 (typ), 2.6V (max)
  • Luminous Intensity: 35mcd
  • Reverse Current: 100µA (max)
  • Peak Wave Length: 640nm
  • Dominant Wave Length: 625nm (min), 638nm (max)
  • Spectral Line Half-Width: 35nm
  • Viewing Angle: 35°
