LEDs 8x8 LED Matrix Display RGB Z0977
LEDs 8x8 LED Matrix Display RGB Z0977
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
per
Taxes included.
Couldn't load pickup availability

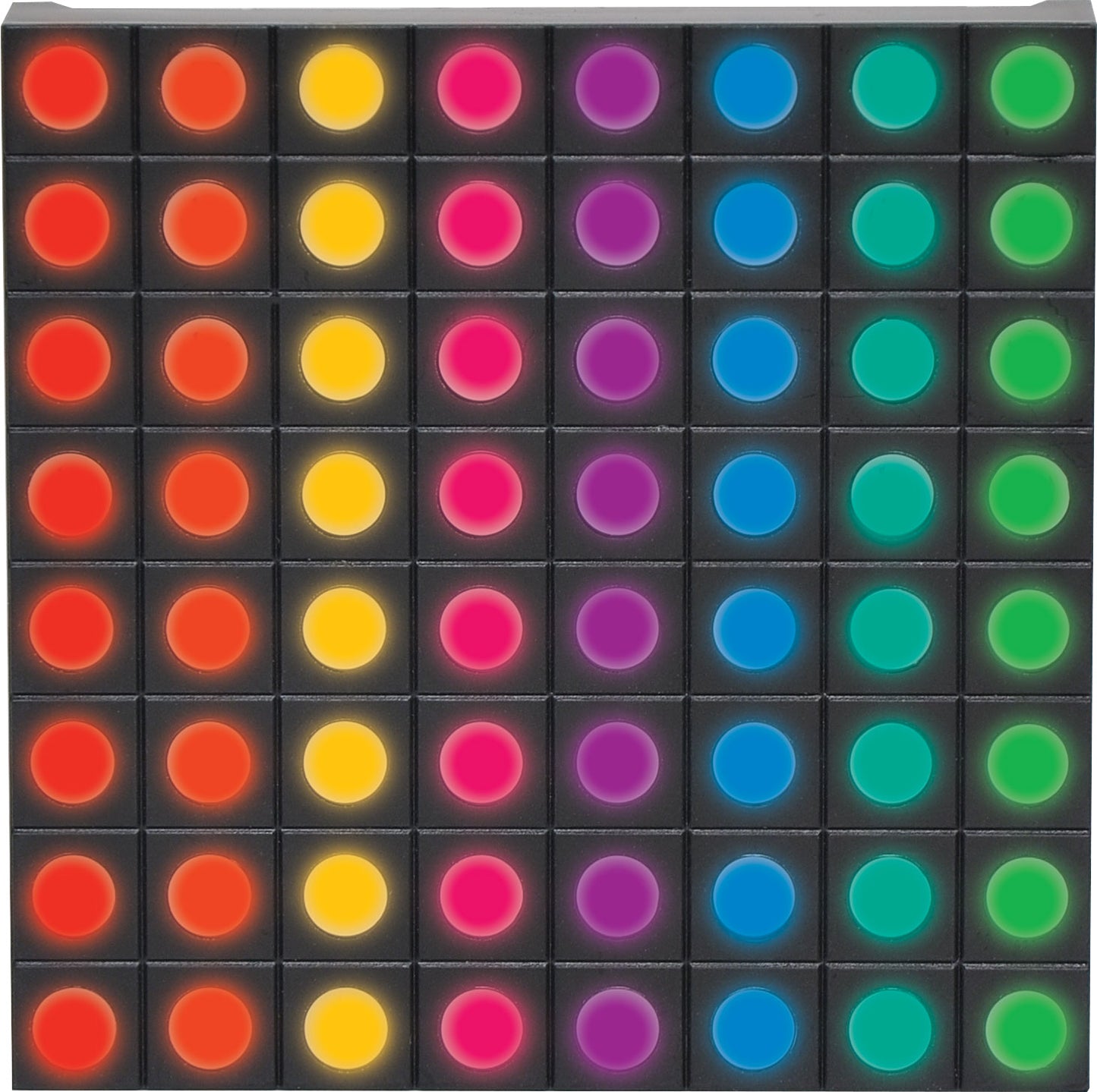

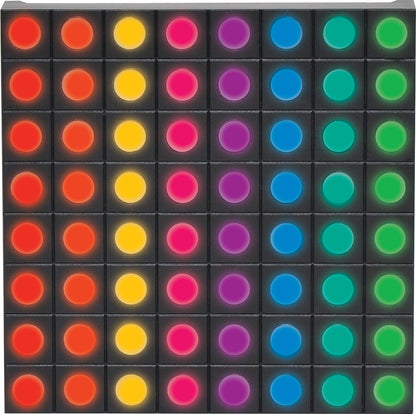

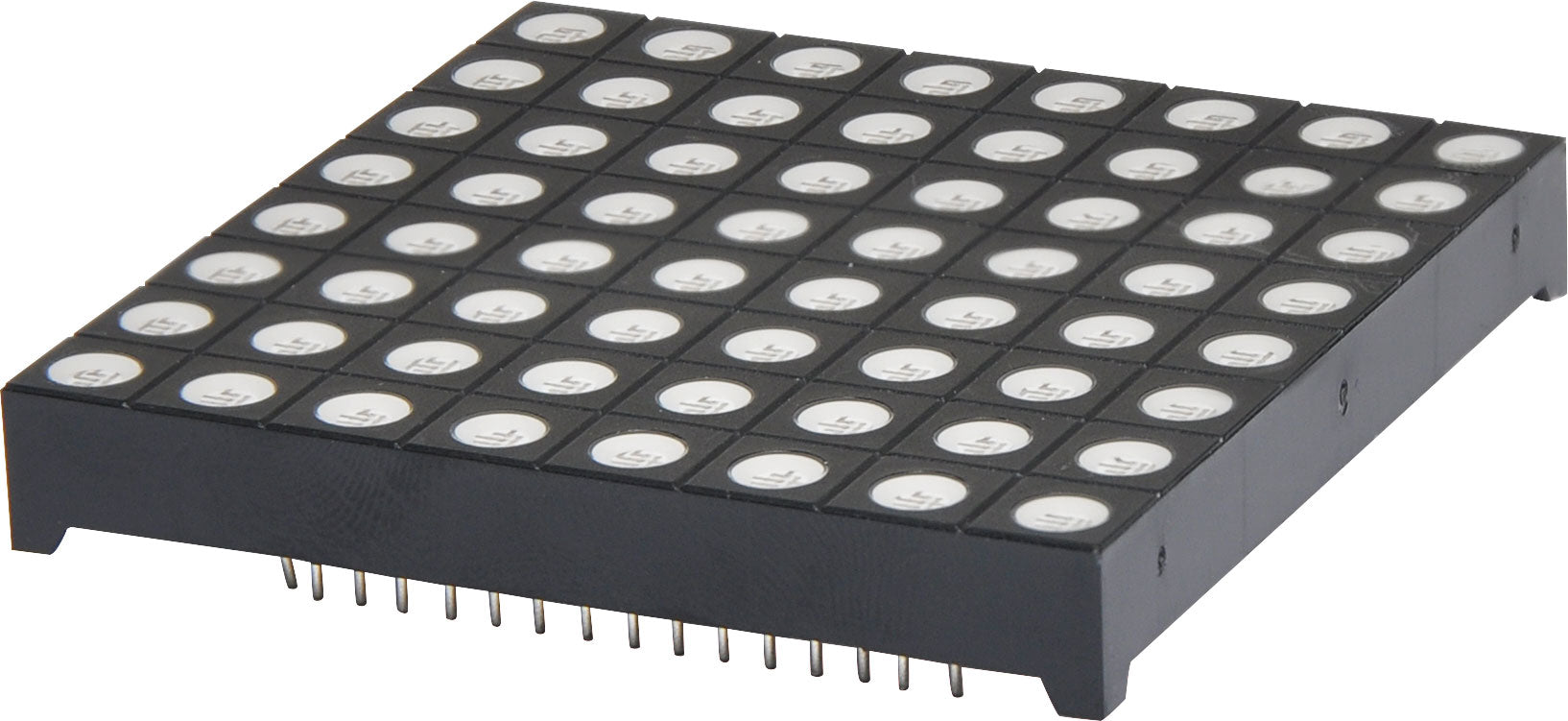

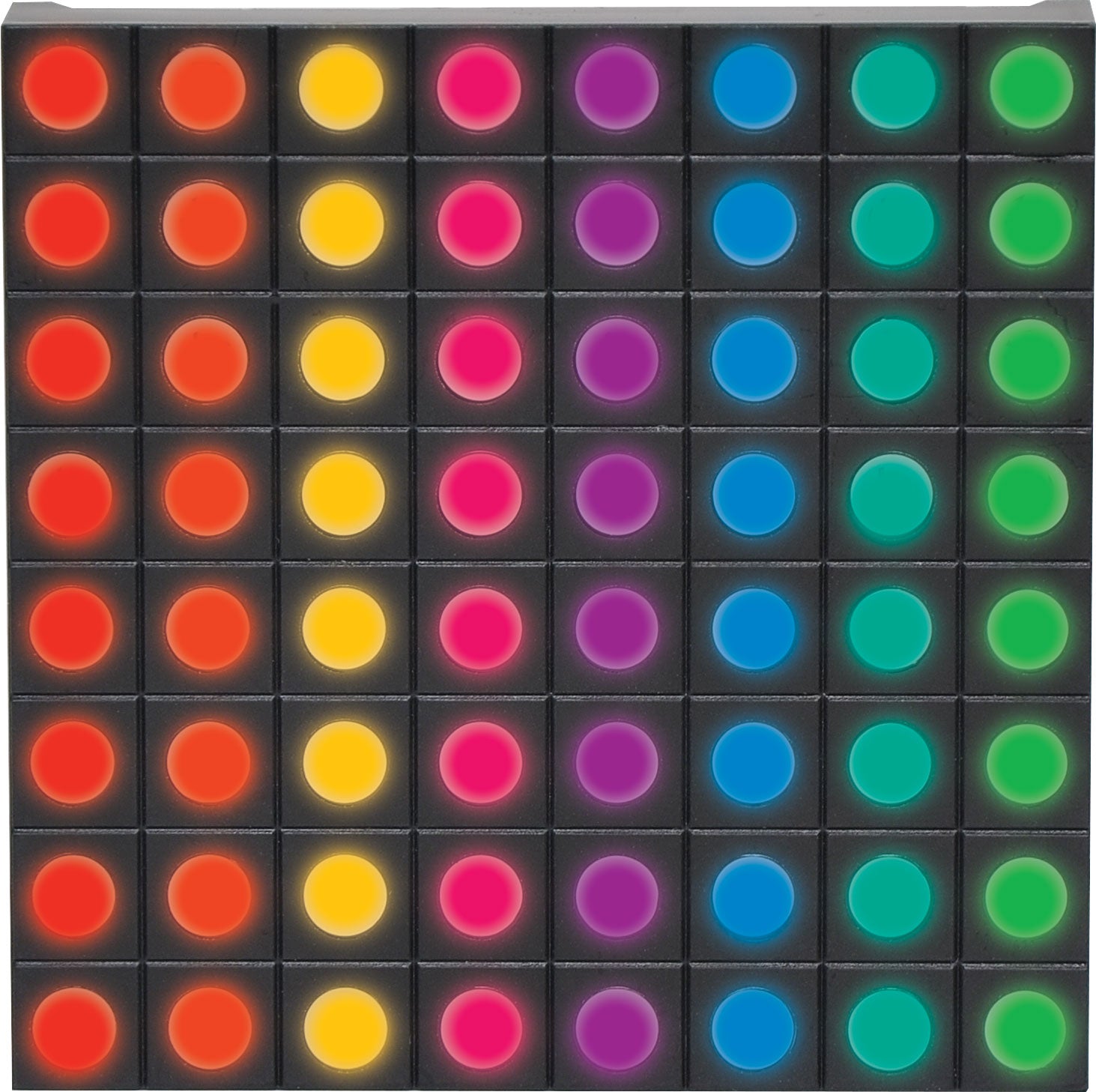

This LED matrix is great for a variety of projects. 64 bright RGB LEDs are contained inside the matte black body, in an 8x8 matrix. There are 32 pins in total, 16 on each side with a small amount of spacing in between so users can easily plug it into a driver module with plenty of space to wire it up. Driver modules can be stacked for extended displays. Dimensions: 60mm x 60mm.
Please Note: We recommend using Z6480 for plug and play programming
Specifications
- Type: Common anode
- Dot Size: 5.0mm

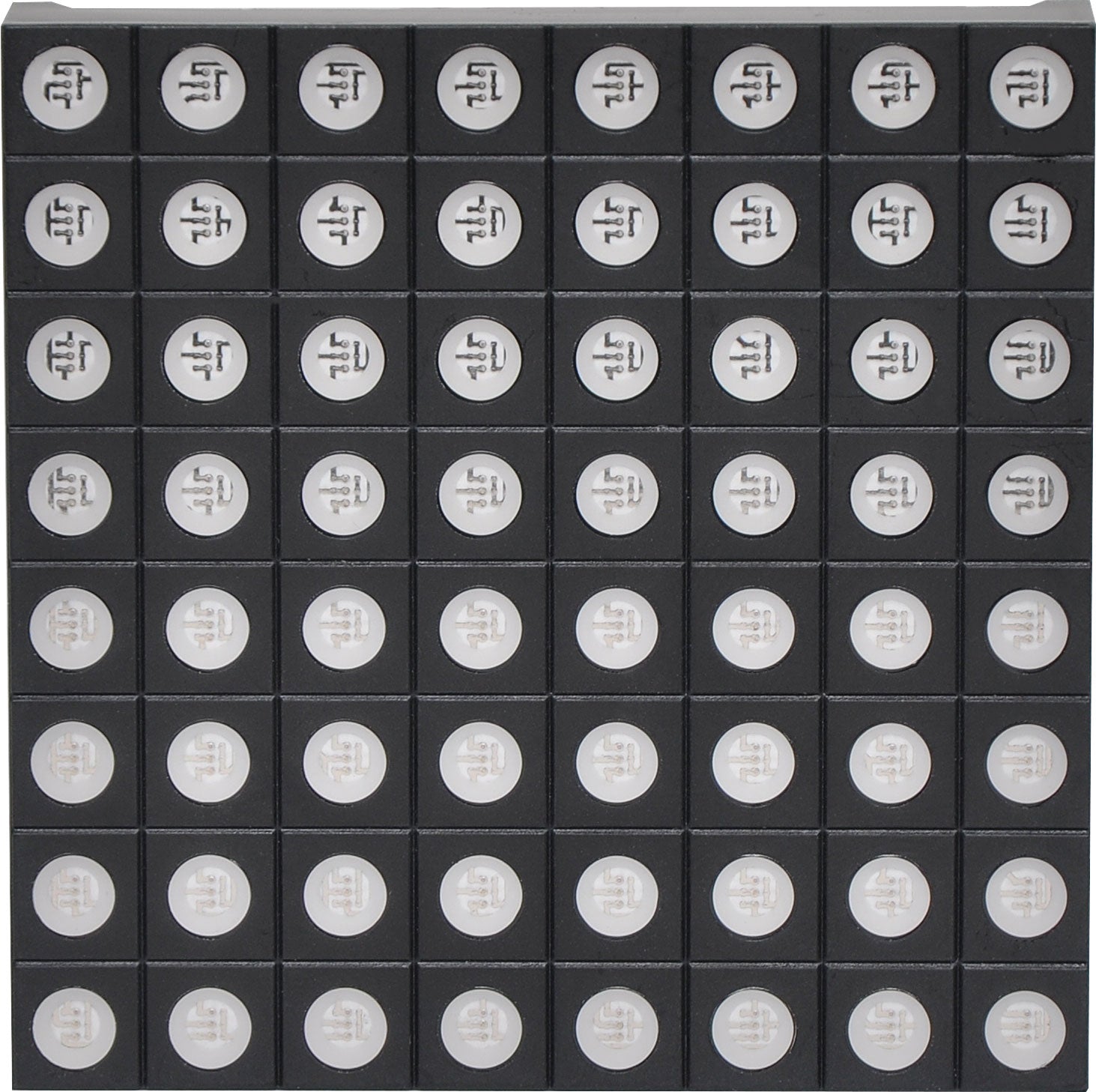

- Lens Colour: Black facia and clear segments (while OFF)
- Pulse Forward Current: 60mW
- Forward Current: 30mA
- Peak Forward Current: 80mA
- Reverse Voltage: 5V
- Reverse Current: 10µA
- Forward Voltage (typical): R 2.0V, G 3.0V, B 3.0V
- Forward Voltage (max): R 2.5V, 3.5V, 3.5V
- Luminous Intensity (typical): R 80mcd, G 200mcd, B 70mcd
- Luminous Intensity (max): R 100mcd, G 250mcd, B 110mcd
- Operating Temperature: -40°C to +105°C

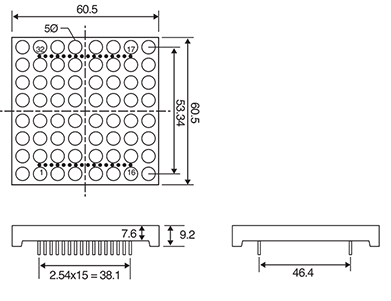

- Pin Row Pitch: 46.4mm
- Dimensions: 60.5W x 60.5D x 9.2Hmm
