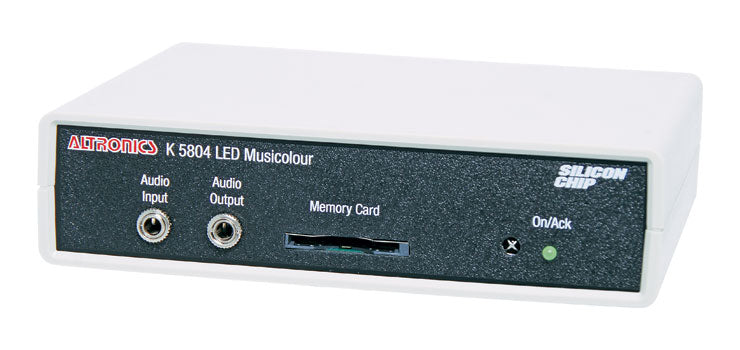

Lighting Kits LED Musicolour Light Controller Kit K5804

Lighting Kits LED Musicolour Light Controller Kit K5804

$110.00
$110.00
Sale Sold out
Taxes included.

Silicon Chip Magazine Oct/Nov ‘12) Accepts audio input signals and drives coloured LEDs "in tune" with the music. 16 output channels respond to different audio frequency bands and the light brightness is in proportion to the amplitude of the frequency components.

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Specifications

  • LED voltage: 12-24V DC
  • LED current: up to 10A total (ie, 120-240W maximum)
  • Number of LED strings: up to 16 per unit
  • LED control method: PWM, 200Hz, 255 brightness steps
  • LED connectors: 2-pin or 4-pin male headers, 2.54mm pitch
  • Audio input: 0.5-2.2V RMS nominal, 180kΩ 100pF input impedance
  • Audio output: 1.1V RMS, THD+N 0.004%, signal-to-noise ratio 100dB
  • Audio file support: 8-48kHz 16-bit mono or stereo WAV files
  • Maximum directory depth: eight levels
  • Maximum files per directory: 100
  • Control method: universal infrared remote (optional)
  • Dimensions: 140 x 110 x 35mm
  • Supply voltage: 12-24V DC
  • Current drain: ~110mA at 12V
