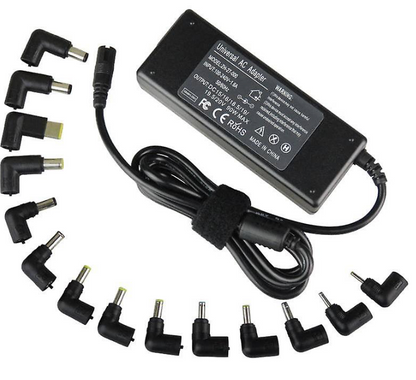

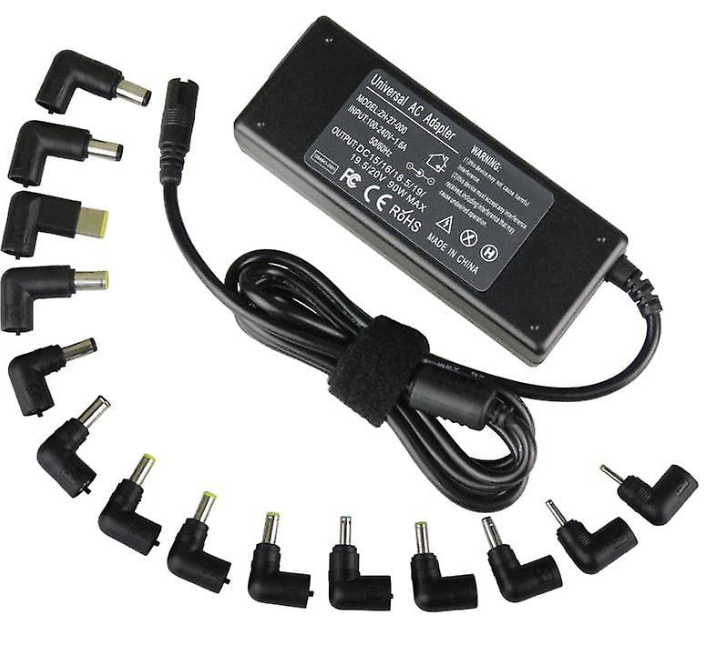

Mains Laptop Power Supply 90w 15 Interchangeable Tips CHUNI15PIN

UNIVERSAL AC ADAPTER CHARGER FOR HP / TOSHIBA / ACER / ASUS / SAMSUNG / Dell LAPTOPs

• Input: 100V ~ 240V, 50/60Hz

• Output: 15V/16V/18.5V/19.5V(19V)/20V/22V/24V
• Connector: 15 Tips (such as dimensions, suitable laptop model, check as below.)

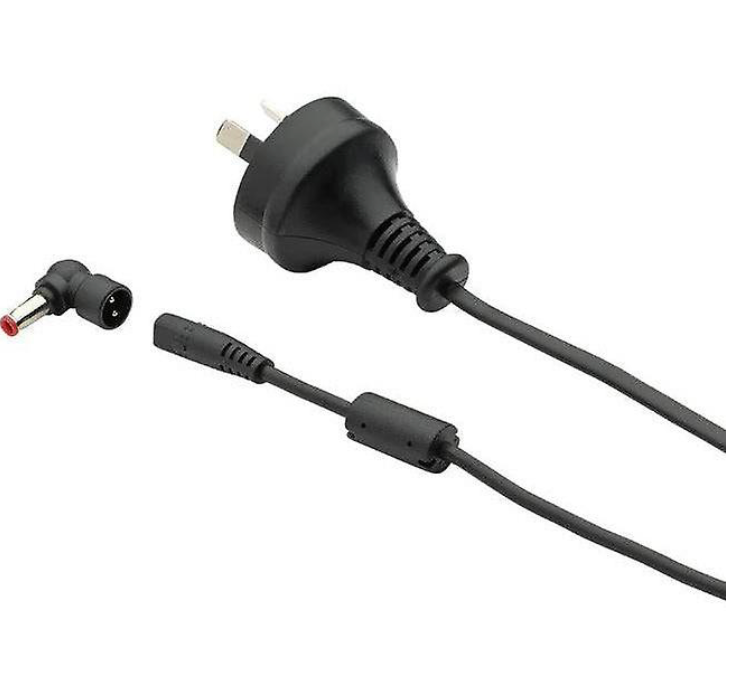

• Packing: 90W AC Adapter + AU Power Cord + 15 Connector
• Over Voltage Protection
• Over Short Circuit Protection
• Over Temperature Protection
• High Power Exchange and Stable Working

15 Tips Connector:

• Tip A – 6.4mm x 4.4mm (for Sony,16V-4A, 19.5V-4.1A/4.7A)
• Tip D – 6.3mm x 3.0mm (for Toshiba 15V-3A/4A/5A/6A)
• Tip E1 – 4.8mm x 1.7mm (for HP/Compaq 18.5V-3.5A/4.9A)
• Tip E2 – 4.8mm x 1.7mm (for HP Envy 4, 19.5V-3.33A)
• Tip F – 5.5mm x 2.5mm (for Lenovo/Asus/Toshiba 19V-3.42A/3.95A/4.74A)
• Tip G – 5.5mm x 3.0mm (for Samsung 19V-3.16A/4.74A)
• Tip Q – 7.4mm x 5.0mm (for Dell PA-10, PA-12 19.5V-3.34A/4.62A)
• Tip R – 7.4mm x 5.0mm (for HP/Compaq 18.5V-3.5A, 19V-4.74A)
• Tip N – 5.5mm x 1.7mm (for Acer 19V-1.58A/3.42A/4.74A)
• Tip X1 blue – 4.5mm x 3.0mm (for HP Pavilion 15, 19.5V-2.31A/3.33A/4.62A)
• Tip X2 black – 4.5mm x 3.0mm (for Dell Inspiron 3000 5000 , 19.5V-2.31A)
• Tip W – 3.0mm x 1.0mm (for Samsung 19V-2.1A, Acer S3 S5 S7)
• Tip S – 4.0mm x 1.35mm (for Asus 19V-2.37A/3.42A)
• Tip Z – Square with pin inside (for Lenovo G50 Z50 11S, 20V-2.25A/3.25A/4.5A)
• Tip L – 7.9mm x 5.0mm (for Lenovo X60 ×61 T430 ×200, 20V-3.25A/4.5A)
• Tip(with the adapter) – 5.5mm x 2.1mm (Acer)
