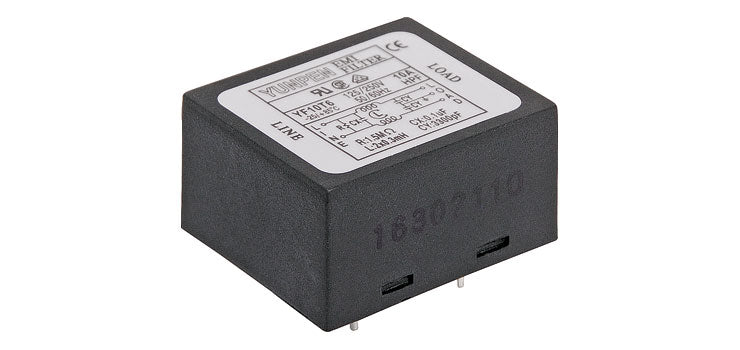

Mains PCB Mount EMI Filter 250V 10A P8372A

10A 250V AC PCB mount mains EMI filter

Rated Voltage: 250V AC
Rated Current: 10A
Leakage Current: 0.8mA Max @ 250V AC 50Hz
Test Voltage:
- Line to Line: 1450V DC
- Line to Ground: 2250V DC
Insulation Resistance: 100MΩ @ 250V DC
Direct Current Resistance: 0.1Ω Max
Temperature Increase: 30ºC Max
Operating Temperature: -25ºC - +85ºC
Attenuation:
- Normal Mode 25dB/Min: 1.50 - 50MHz
- Common Mode 25dB/Min: 1.50 - 50MHz
CX: 0.1µF
CY: 2 x 3300pF
Inductance: 2 x 0.3mH
