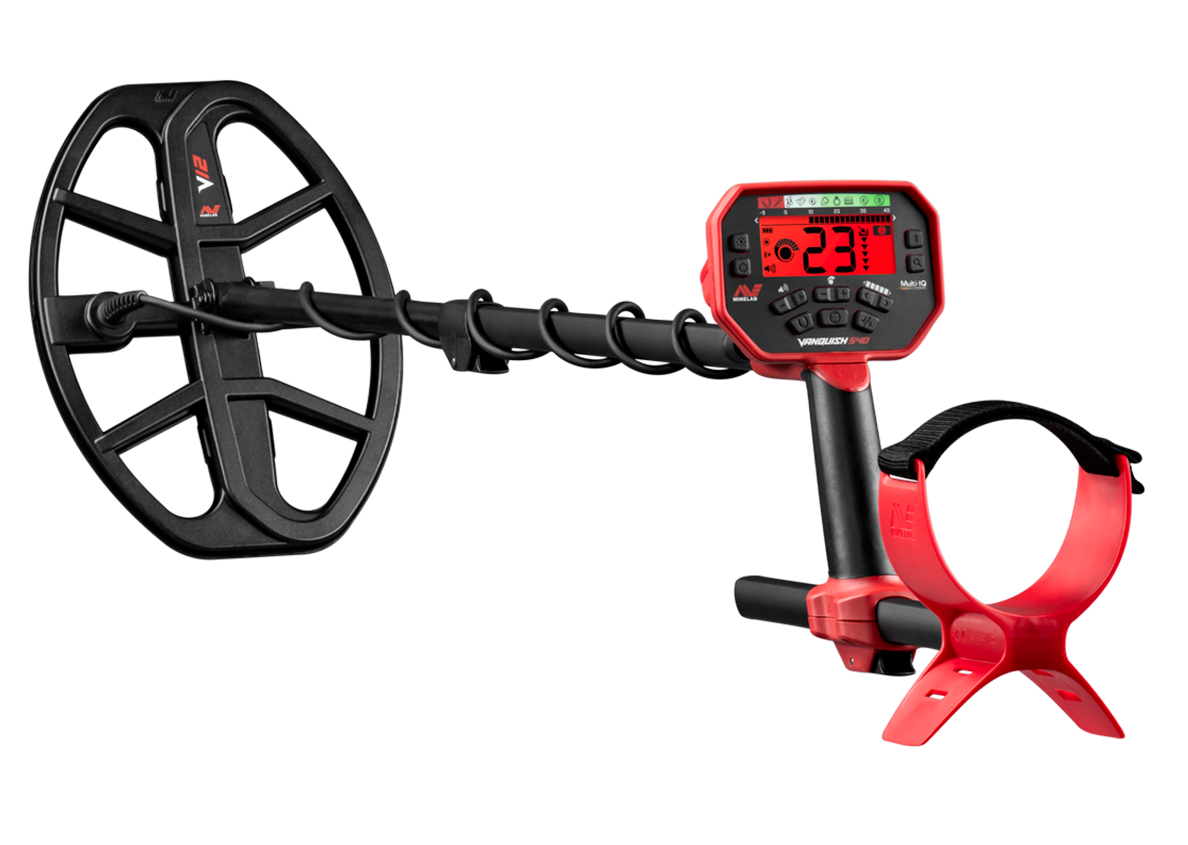

Minelab Vanquish 540 Pro Pack Multi-IQ Technology Detector 3820-0004

SKU: 3820-0004

$729 $749

VANQUISH 540 Pro-Packfor the serious detectorist who’s always in control. As if Multi-IQ technology, audio control, and pinpoint wasn’t enough the 540 also boasts iron-bias control, Bluetooth headphones, red LED backlight and rechargeable batteries. What’s more, it comes with waterproof 8” and 12” coils as standard for greater depth and precision. No matter where the hunt takes you, the 540 is the ultimate pack out for those who want it all.


Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected and no terrain is off limits. Silver gold or jewellery. Park, field or beach. Unearth the power of VANQUISH with Multi-IQ.


Learn more about Multi-IQ Technology.


No matter what you seek, VANQUISH has you covered. Simply select one of the four Find Modes — Coin, Relic, Jewellery, or All Metal — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Find Mode.

VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver ultimate control over what metals you want to accept or reject.

Pack and Carry

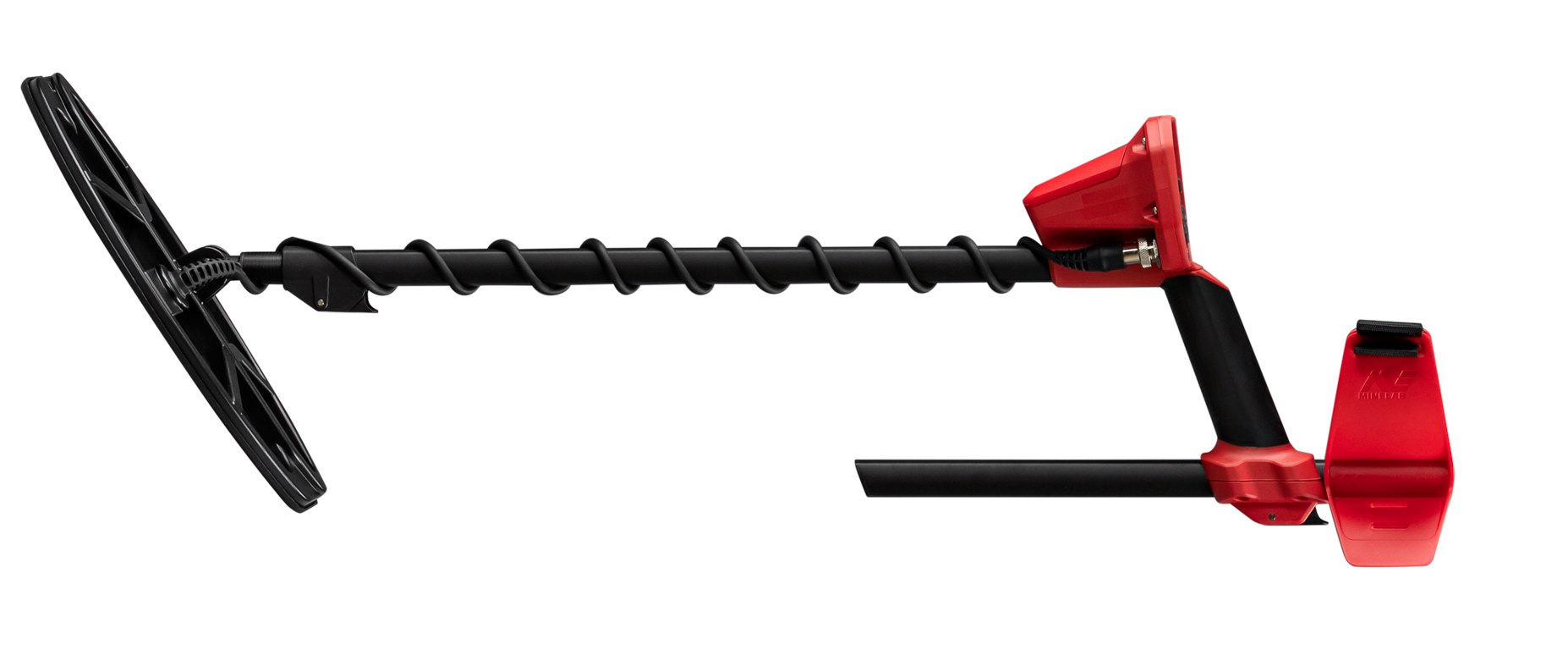

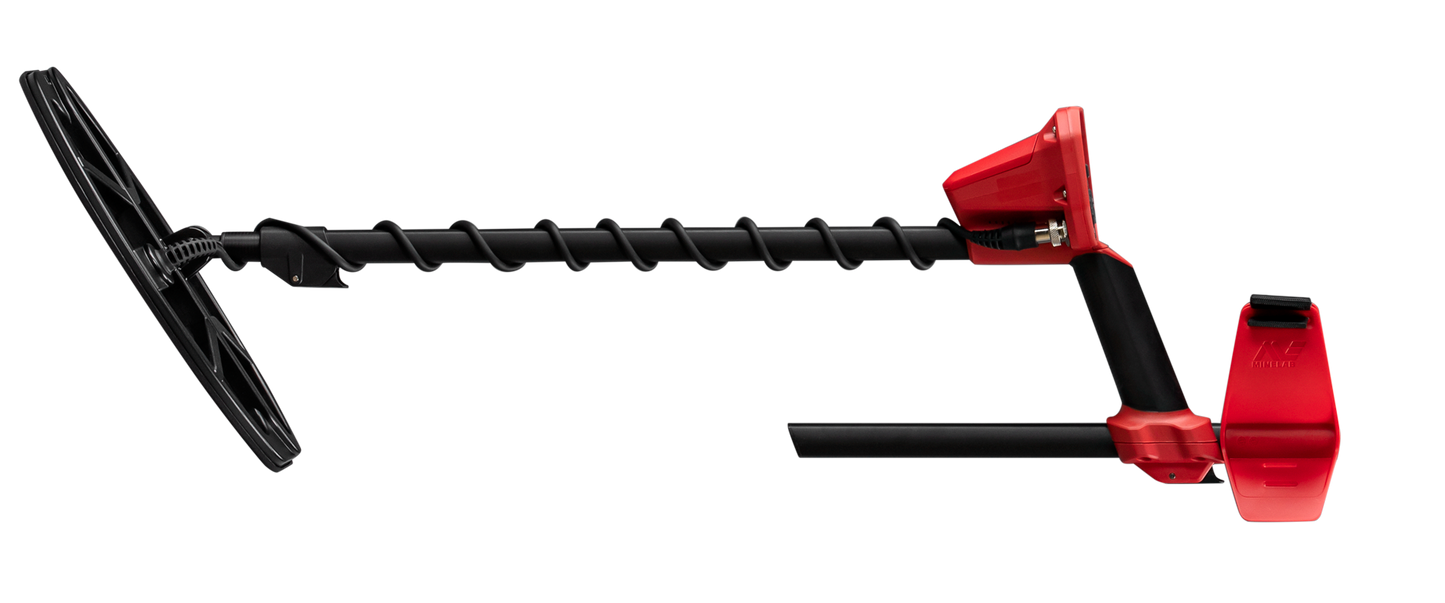

1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.

Iron Bias

More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.

Included Coils

Single Pack - Cover more ground and search deeper with the V12 12"x9" V12 coil included as standard.

Pro Pack - Cover more ground and search deeper or detect more accurately and in tight spaces with both a 12” and 8” coil included as standard.

Audio Control

Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control.

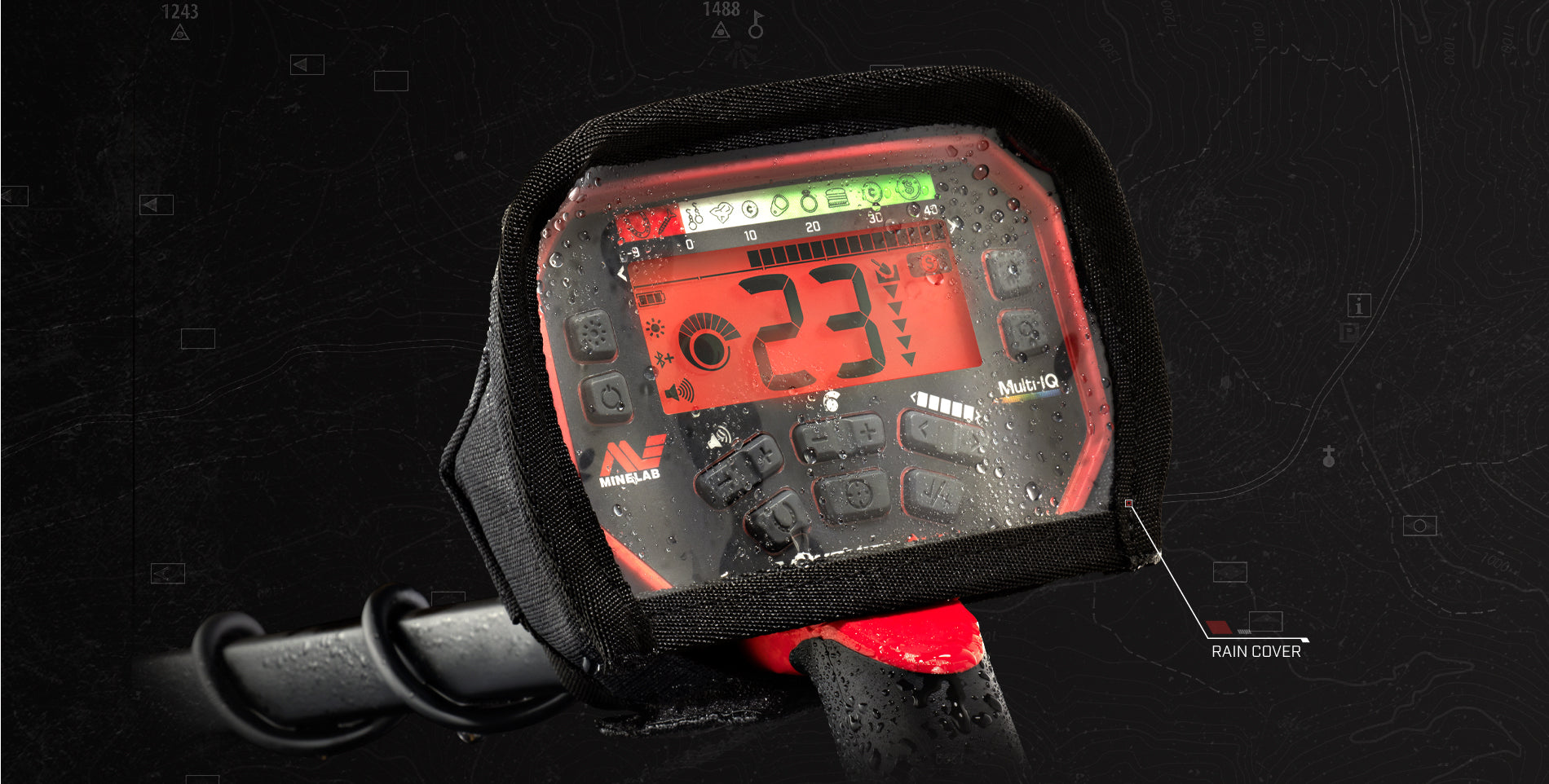

Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with optional Rain Cover)

PINPOINT MODE Included pinpoint mode to help you locate targets with extreme precision.
BACKLIGHT  Red LED Backlight to help low-light vision.



Search Modes

Coin, Relic, Jewellery, Custom, All Metal

Custom User Search Profile


Operating Frequencies (kHz)


Noise Cancel

Auto (19 Channels)

Bluetooth Audio


Iron Bias

High (default), Low


10 levels


10 levels

Target Tones

5 tones

Discrimination Segments

25 segments

Target ID's

-9 to 40

Depth Indicator

5 levels


Extended: 1450mm (57")

Collapsed: 760mm (30")

Weight (incl. batteries)

2.9lbs (1.3kg)

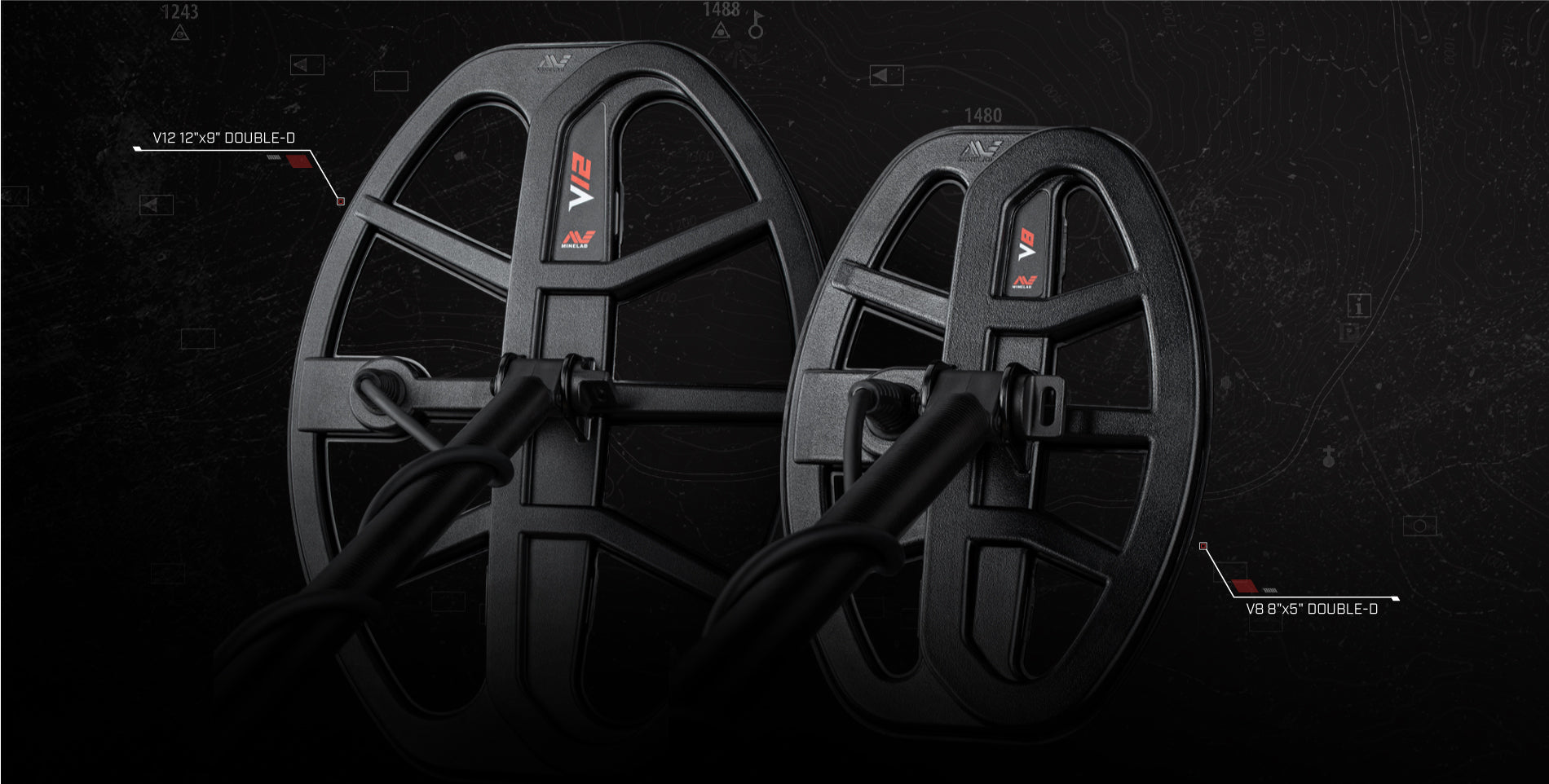

Standard Coil

V12 12"x9" Double-D

V8 8"x5" Double-D

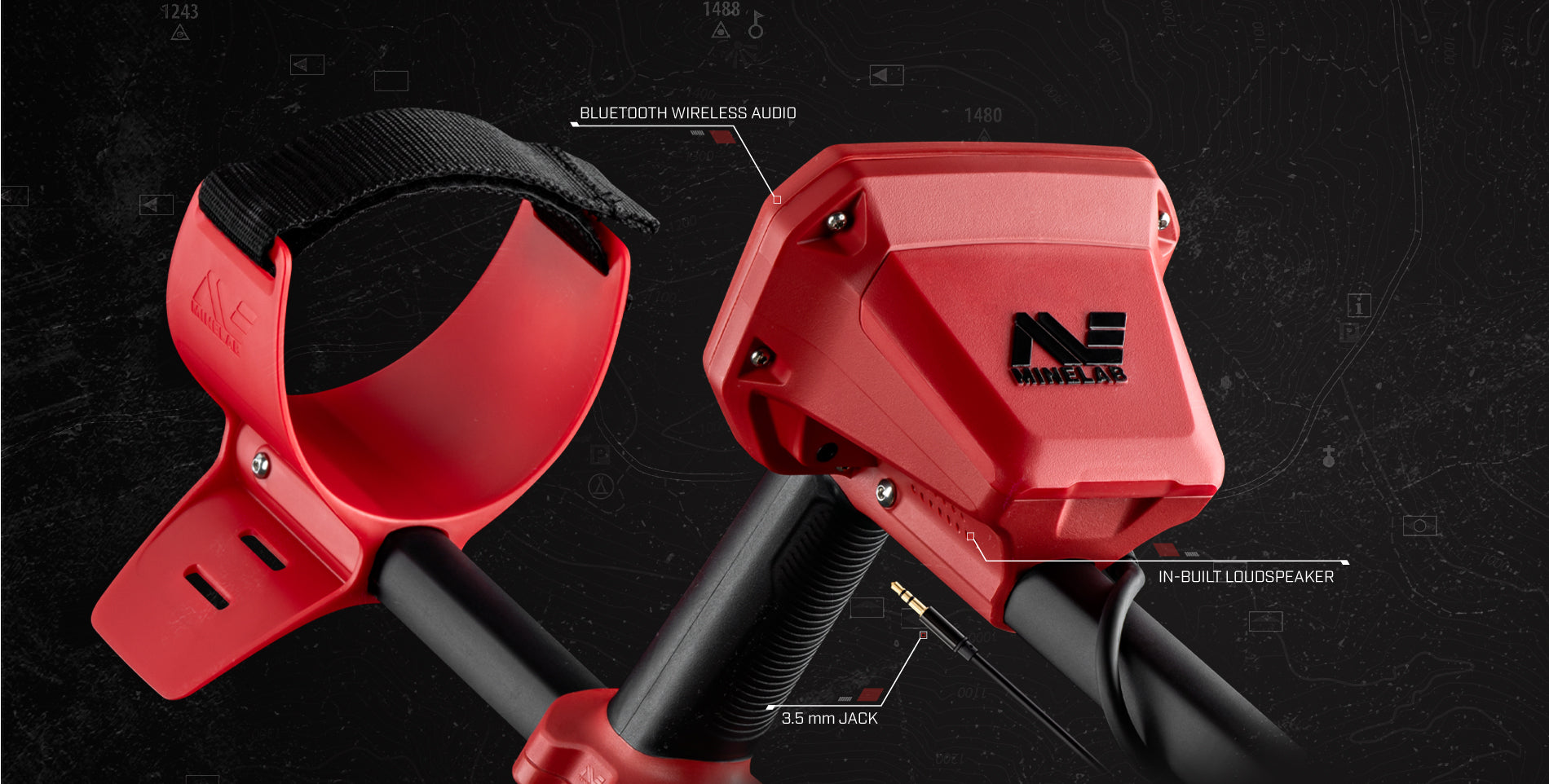

Audio Output

In-built loudspeaker

3.5mm (1/8") headphones

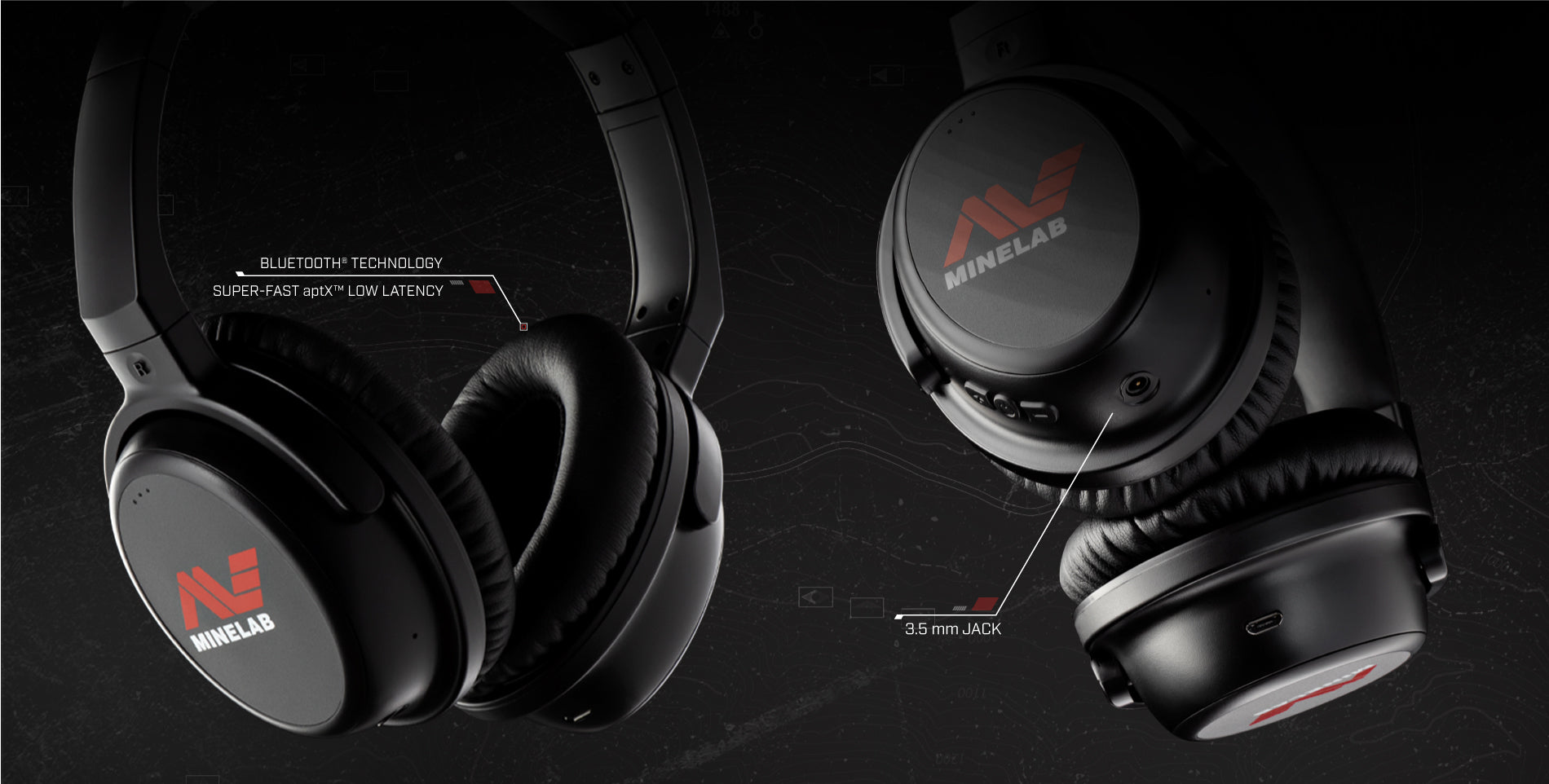

Bluetooth wireless headphones

Supplied Headphones

Bluetooth wireless headphones


Monochrome LCD with red backlight

Supplied Batteries

4 x AA NiMH rechargeable


Coil to 1m/3-feet

Operating Temperature Range

-10°C to +40°C (+14°F to +104°F)

Storage Temperature Range

-20°C to +70°C (-4°F to +158°F)

Key Technologies

Multi-IQ, Bluetooth, aptx™ Low Latency


3 years control box and coil

Shipping 67x15x28 3.5kg


V12 Double-D Coil

V12 for Minelab VANQUISH Detectors
V10 Double-D Coil

V10 for Minelab VANQUISH Detectors
V8 Double-D Coil

V8for Minelab VANQUISH Detectors

A PRO-FIND Series Pinpointer is an essential part of your detecting tool kit.
