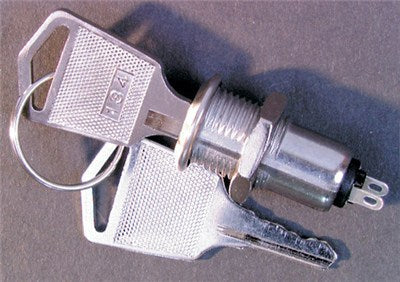

Mini Barrel Key Switch SM1027
Mini Barrel Key Switch SM1027
Regular price
$11.95
Regular price
Sale price
$11.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Ideal for situations where there is not much room. 2 keys supplied
Specifications
| AC current rating : 1A, 0.5A |
| AC Voltage rating : 125V, 250V |
| DC current rating : 3A |
| Length : 31mm |
| Width : 15mm |
| Height : 15mm |
| Mounting Method : Panel |
| Attachment / Securing Method : Collar / Nut |
| Max Mount Panel Thickness : 29mm |
| Round Mount Hole Diameter : 12mm |
| Packaged Volume : 0.06l |
| Packaged Weight : 0.02kg |
| Packaged Length : 8cm |
| Packaged Width : 5cm |
| Packaged Height : 1.5cm |
| Switch Type : Key |
| Switch Connection : Spade Terminals |
| Mechanism Material : Metal |
