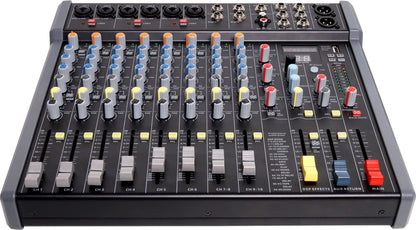

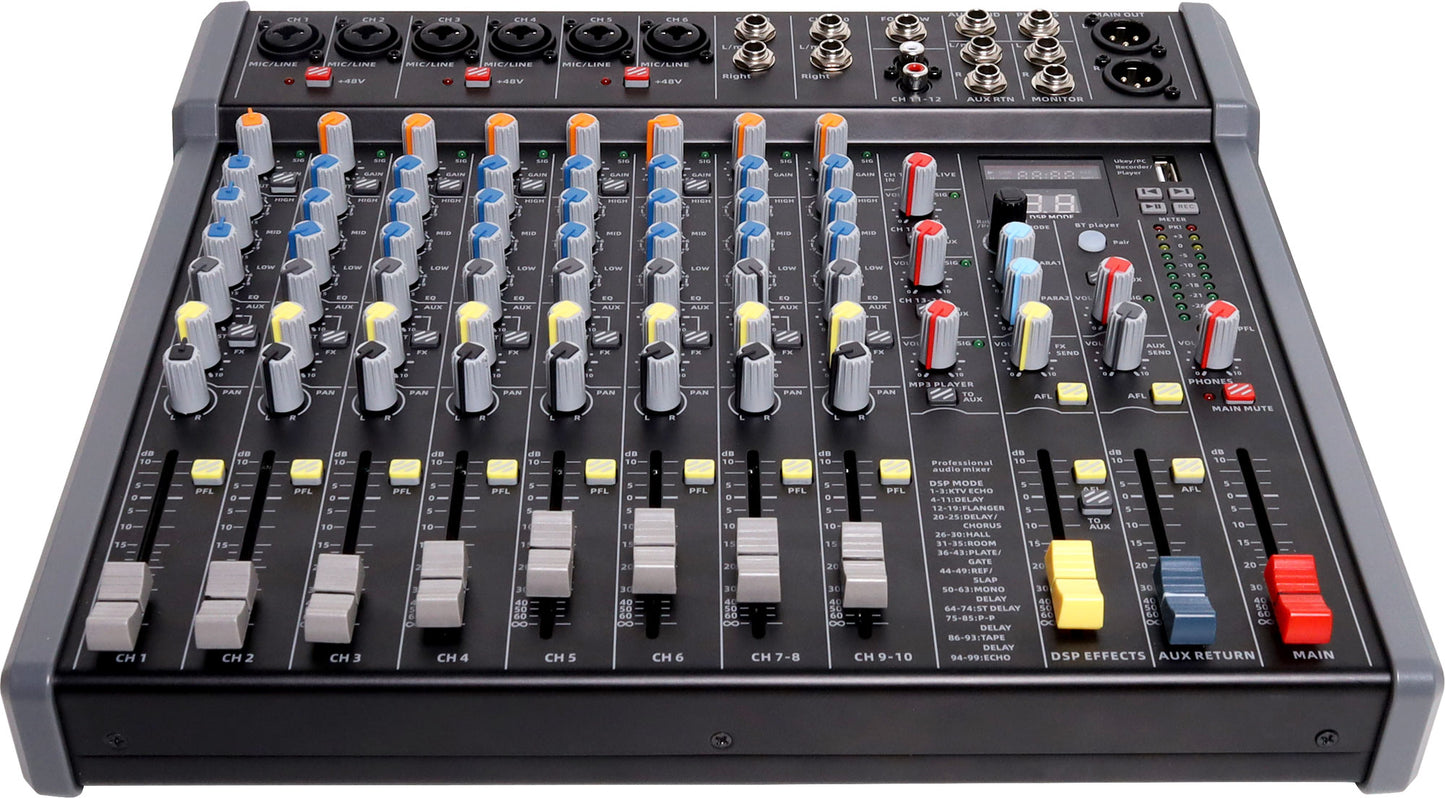

Mixing Desk 16 Channel With USB Playback A2652

Mixing Desk 16 Channel With USB Playback A2652

$289.00
$339.00 $289.00
Sale Sold out
Taxes included.

A lightweight and compact USB powered mixer featuring 16 channels. Channels 1 to 6 are XLR/6.35mm combo sockets suitable for both mic and line level signals. Channels 7 to 10 are 6.35mm L/R mono jack inputs. Channel 11 and 12 is a stereo RCA input. Channel 13 and 14 is a stereo 3.5mm jack input. Its an ideal mixing solution for small to medium venues. An additional input is provided via Bluetooth audio streaming from your device. Being USB powered it is very portable and easy to power.

A dedicated slider is provided for DSP effects level, Aux return level, master volume, each with AFL control and Aux send on DSP.

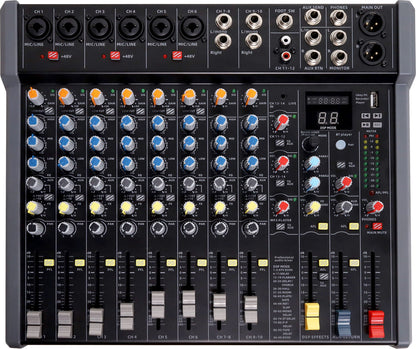

Channels 1-6 are identical and feature: • signal presence indicator • gain adjustment with low cut on/off • high, mid and low adjustments • aux input level adjustment • fx level adjustment • pan L/R control • PFL button • volume control.

Channels 7-10 are identical and feature: • signal presence indicator • gain adjustment • high, mid and low adjustments • aux input level adjustment • fx level adjustment • pan L/R control • PFL button • volume control.

Remaining channels and Bluetooth channel each feature adjustable volume control and aux send button.

Features

  • All inputs top mounted for easy access
  • Combo XLR and 6.35mm jack inputs on channels 1-6
  • Bluetooth audio receiver
  • 24 bit 48KHz DSP effects with preset adjustment and level
  • Adjustable aux return level
  • USB MP3 recording and playback
  • LED VU meter
  • Monitor & phones outputs
  • Aux send and return
  • Foot switch input
  • 48V phantom power

Instructions

Specifications

  • Mic Maximum Input Level: +10dBu
  • Line Maximum Input Level: +22dBu
  • XLR Maximum Output Level: +22dBu
  • TRS Maximum Output Level: +20dBu
  • Master meters: 6 segment - 20dB to peak
  • Channel Meters: 1 LED signal indication
  • Frequency Response: 20Hz to 22KHz ± 1dB
  • CMRR (MIC 1kHz): >75dB
  • THD+N: <0.05% (Channel to mix out)
  • Crosstalk (at 1kHz: Fader shutoff): >80dB
  • Noise (rms 22Hz to 22KHz): EIN-122dBu
  • Residual output noise: <-86dBu
  • L/R main mix noise: <-72dBu
  • Mono channel: XLR balanced, pin2 hot/pin3 cold, 2K ohm, sensitivity -60 to +10dB, phantom +48V; TRS balanced, tip hot/ring cold, 10K ohm, Sensitivity -20 to +20dB
  • Mono channel EQ: HF; shelving, +/-15dB, 12KHz. MF; shelving, +/-15dB, 2.5KHz. LF; shelving, +/-15dB, 80KHz
  • Stereo channel - 1/2: TRS unbalanced, tip hot, 20K ohm, sensitivity -20 to +20dBu
  • Stereo channel - 1/2 EQ: HF; shelving, +/-15dB, 12KHz. MF; shelving, +/-15dB, 2.5KHz. LF; shelving, +/-15dB, 80KHz
  • Stereo channel -3/4: 6.35 TRS unbalanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu. 3.5mm TRRS unbalanced, tip/L, ring 1/R, ring2/GND, sleeve/output. 10Kohm, sensitivity -20 to +14dBu
  • DSP audio effects processor: 99 mode/24bit/48KHz, LED display
  • MP3 player/recorder: Audio decoding: MP3/WAV/APE/FLAC
  • LED display: USB 1.1 audio interface
  • Bluetooth: Compliant with bluetooth V5.1+BR+EDR+BLE specification
  • Max input power: 12V DC @ 2A 24W
