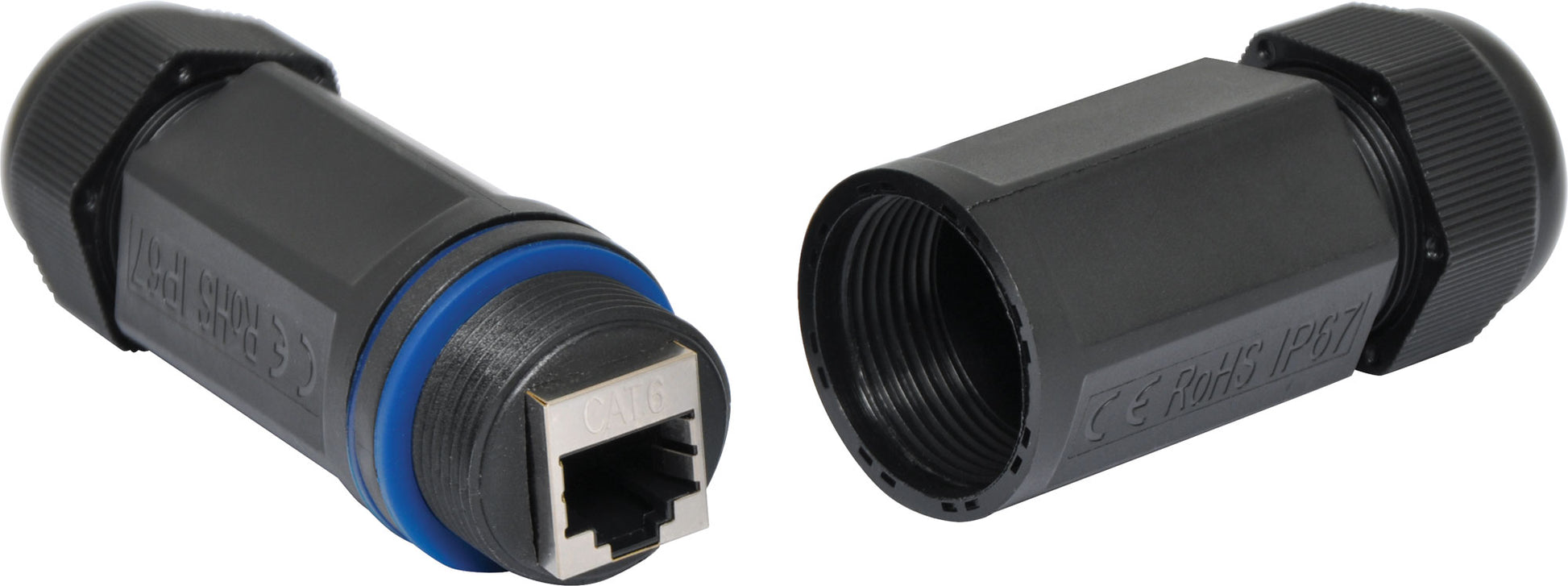

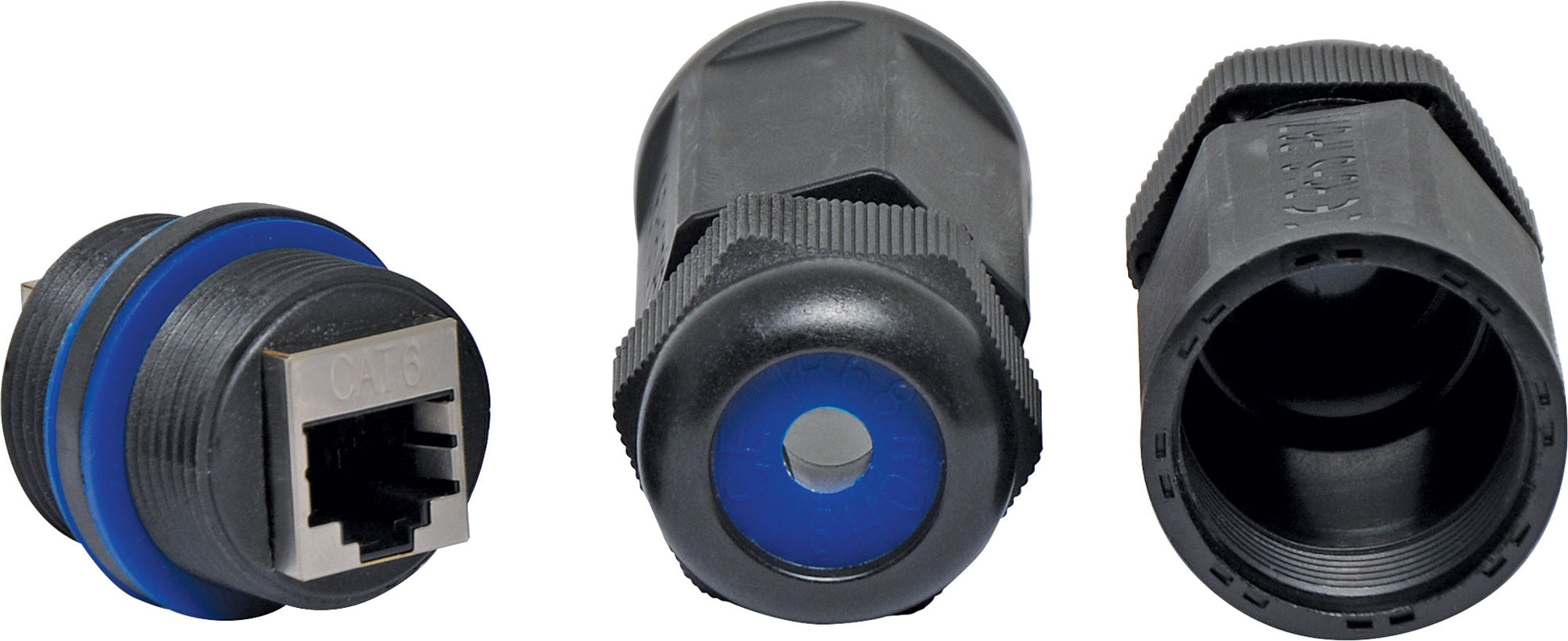

A waterproof joiner for data cables with RJ45 back to back internal connection. The blue sealing o-rings have a split allowing cables which have already been terminated, or pre-made patch leads to be threaded through the connector housing.

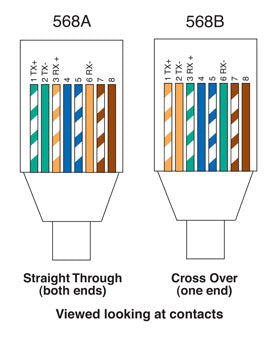

Modular 8P8C RJ45 Wiring
Two standards are commonly used for defining common RJ-45 termination pinouts. 568A is the most commonly used in Australia for end to end termination of twisted pair cables.
When connecting a PC to a switch, a "straight-through" cable is required. This is 568A to 568A.
When connecting a PC directly to another PC a "crossover" cable is required. This is 568A to 568B.

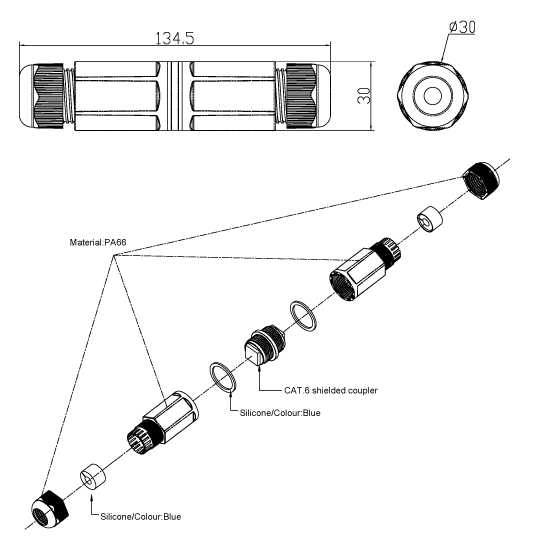

Specifications
Coupler Material
- Shield: BRASS
- Plastic Housing:ABS
- RJ45 contact material& finished:
- Phospor Bronze Nickel plated
- Contact area: Gold plated
Performance
- Insertion force: 900gms for 8 contacts.
- Retention strength: 7.7kgs between jack and plug.
- Operation temperature: -20°C to 68°C
Durability
- Jack: 750 cycles plug-jack mating and unmating test,
- Insertion cycle at 20 cycles/minute max.
- Contact resistance test per 100 cycles.
- The cat.6 performance is in compliance with the ANSI/TIA/EIA 568C standard. RoHS2.0 (2011/65/EU) Compliant
