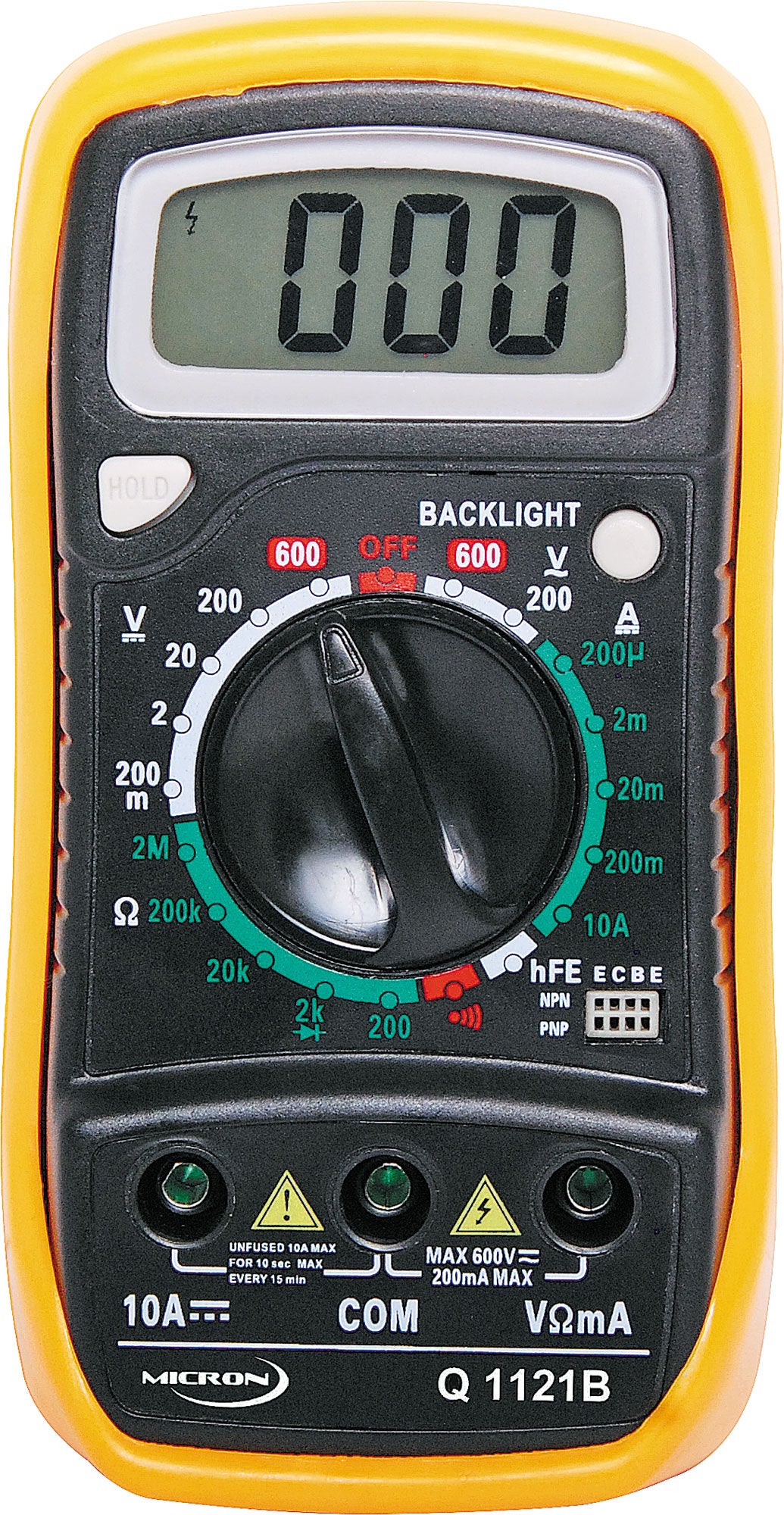

Multimeter 19 Range Digital Multimeter With Data Hold Q1121B
Multimeter 19 Range Digital Multimeter With Data Hold Q1121B
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
per
Taxes included.
Couldn't load pickup availability
This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.
Includes a 9V battery
Features
- Large display with backlight
- Low battery indicator
- Data hold function
- Transistor tester
- Current measurement
- Voltage measurement
- Diode tester
- 1x 9V Battery included
- Cat II
Specifications
- Voltage DC: 200mV, 2V, 20V, 200V, 600V (±0.8%+2d)
- Voltage AC: 200V, 600V (±1.2%+10d)
- Current DC: 2mA, 20mA, 200mA, 10A (±1.5%+2d)
- Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
- Diode test: Included
- Transistor test: Measures hFE, NPN/PNP identification
- Display: 3.5 digit LCD, 1999 count
- Protection: 500mA M205 fused on all inputs except 10A range
- Dimensions: ≈ 72W x 40D x 145H mm
